Double Speed Electric Wire Rope Construction Hoist with Wireless Remote

FOB Price

USD $500 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao/Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Santo, Santo	Model Number	MD1
Usage	Construction Hoist	Power Source	Other, Electric, Three-phase AC 380V 50Hz
Sling Type	Wire Rope	Maximum Lifting Weight	20ton
Maximum Lifting Height	30mm	Lift Speed	8m/min
Certification	CE GOST ISO SGS, CE GOST ISO SGS	Warranty	1Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

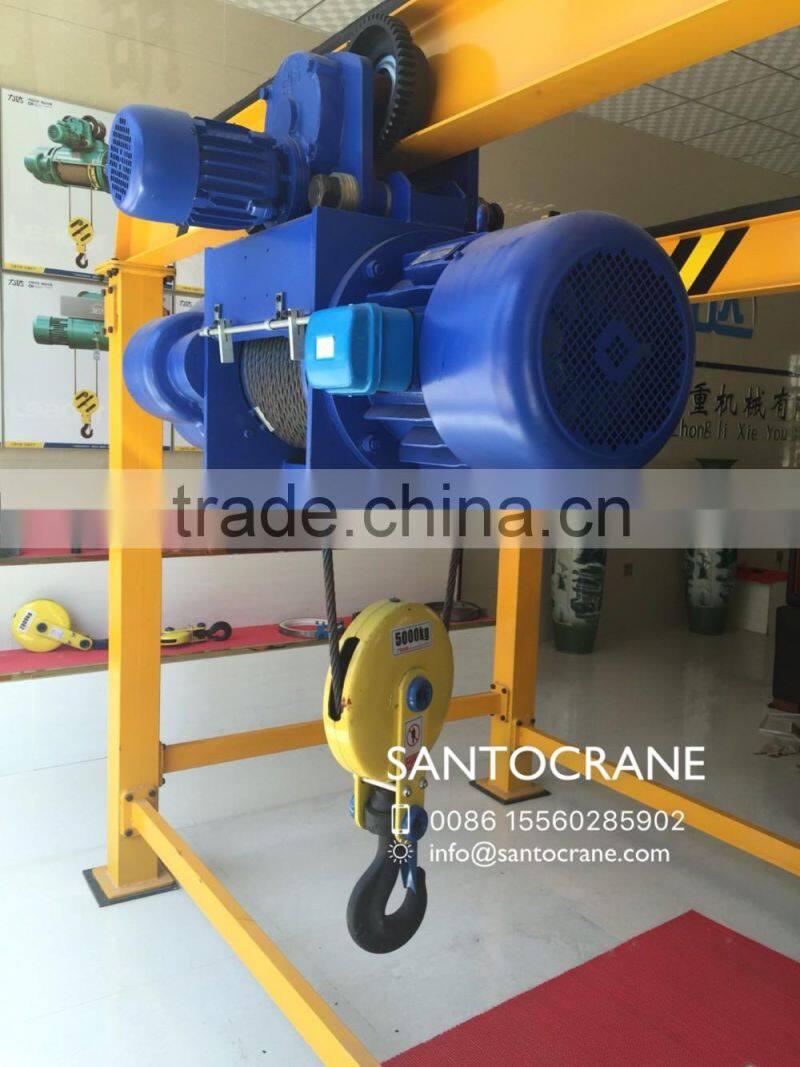

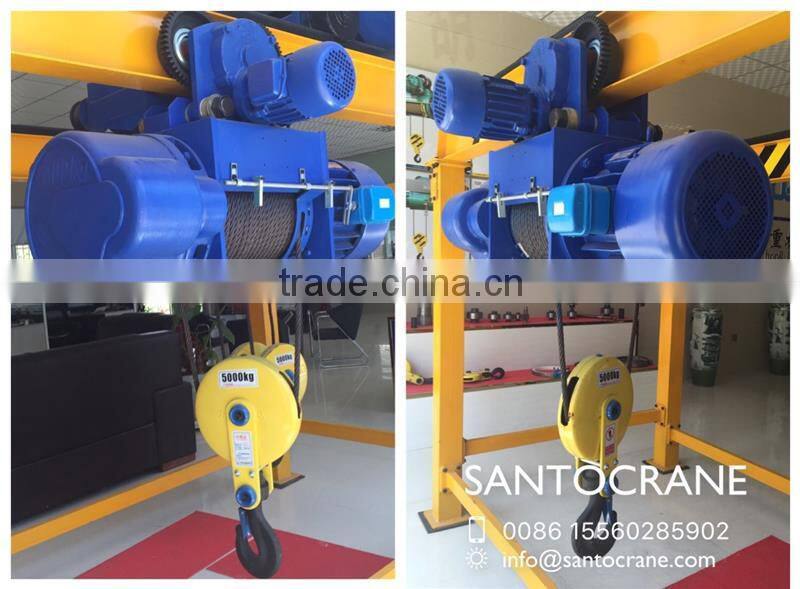

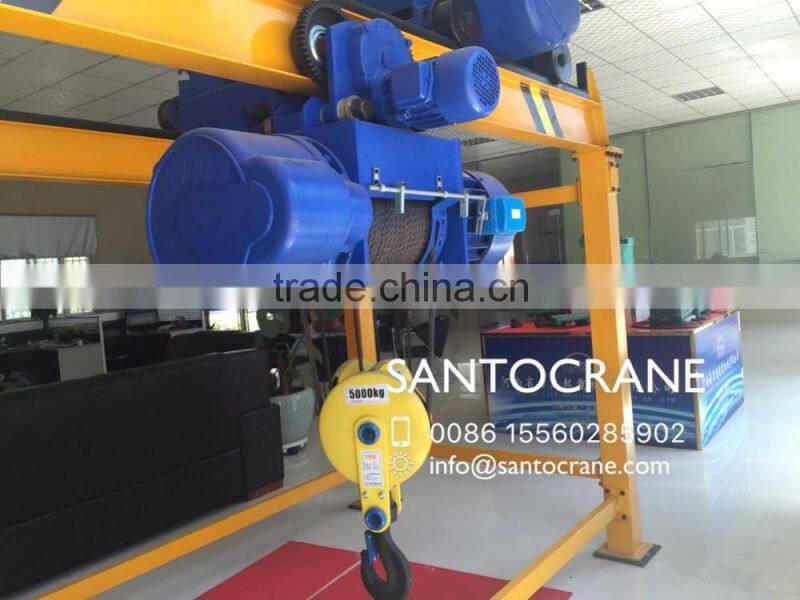

CD1 MD1 Electric hoist

CD1 MD1 Electric hoist holds the advantage of light dead weight, small size, compact structure and steady working. They could be installed on single girder crane, jib crane and other lift equipment. The lift speed of CD1 type is single speed, could fit different factory, mine, port, warehouse and shop application.

Working enviorment: -20 degree~ +40 degree
Duty Class: A3

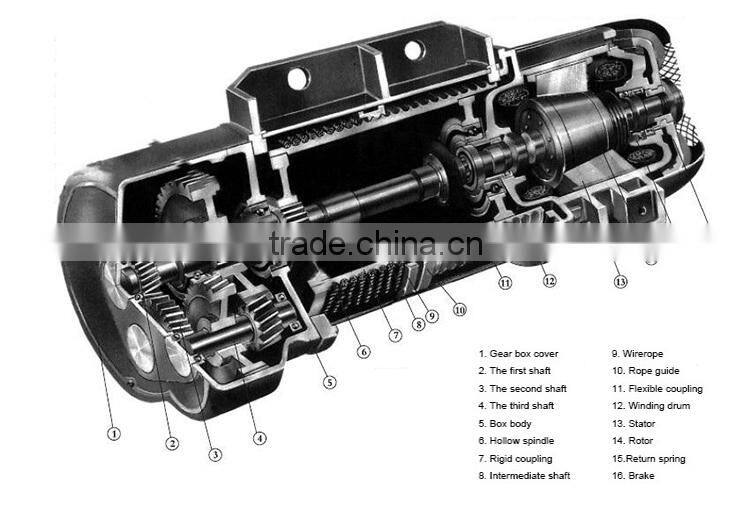

Main Structures: Gear box, Electrical control box, Wire rope, Motor, Push buttons

Features:

Gear Box:Adapt 3 levels fixed axis helical gear transmission mechanism. Gears and shafts are alloy steel after heat treatment. The body and box cover are made from high quality cast iron, good assembly and sealing.
Electrical control box:When something emergency happen, the control box can cut down the power at first time, the limit switch is also included.
Wire Rope:High quality crane using wire rope hoist, Durable and Reliable.
Motor:Large conic rotor brake asynchronous motor for lifting motor, no brake else.
Controllers:Hand control, light weight and flexible. Pendent panel and remote control for option.

Model	0.25TON	0.5TON	1TON	2TON	3TON	5TON	10TON
Load capacity, t	0.25	0.5	1	2	3	5	10
Lift height, m	3-9	6-12	6-30	6-30	6-30	6-30	6-30
Lift speed, m/min	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	7(7/0.7)
Travel speed, m/min	20(30)
Wire rope	6×19-3.6	6×37-4.8-180	6×37-7.4-180	6×37-11-155	6×37-13-170	6×37-15-200	6×37-15-200
I beam	16-22b	16-28b	16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Radius	0.8	1.5	1.5-4	2-4	2-4	2.5-5	3.5-9
Voltage, V	380	380	380	380	380	380	380
Frequency, Hz	50	50	50	50	50	50	50
Phase	3	3	3	3	3	3	3

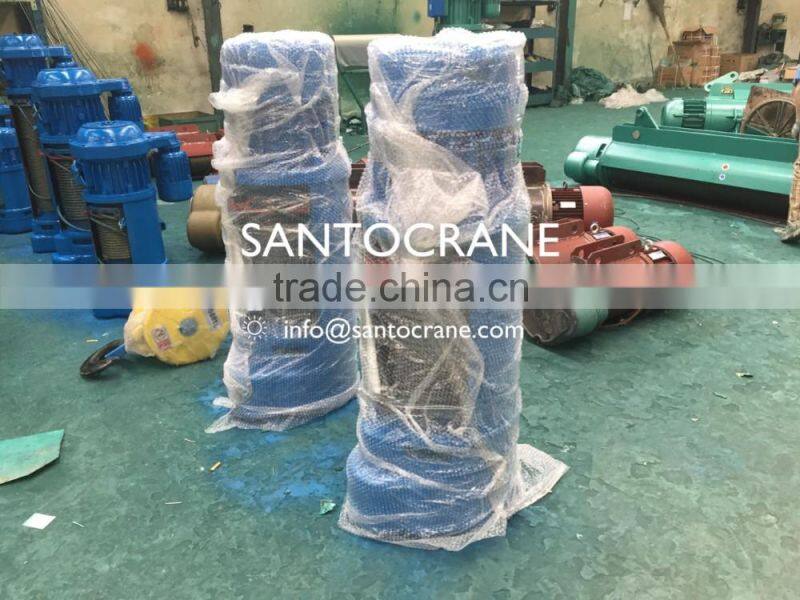

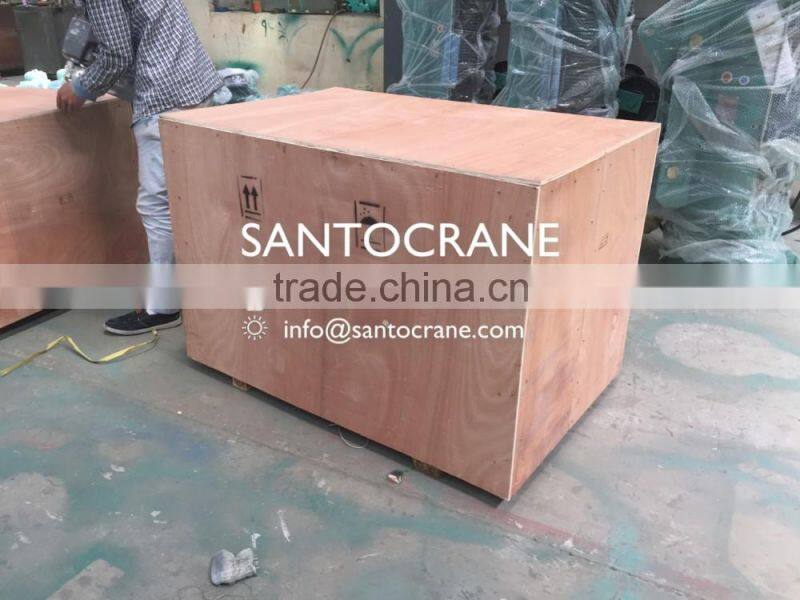

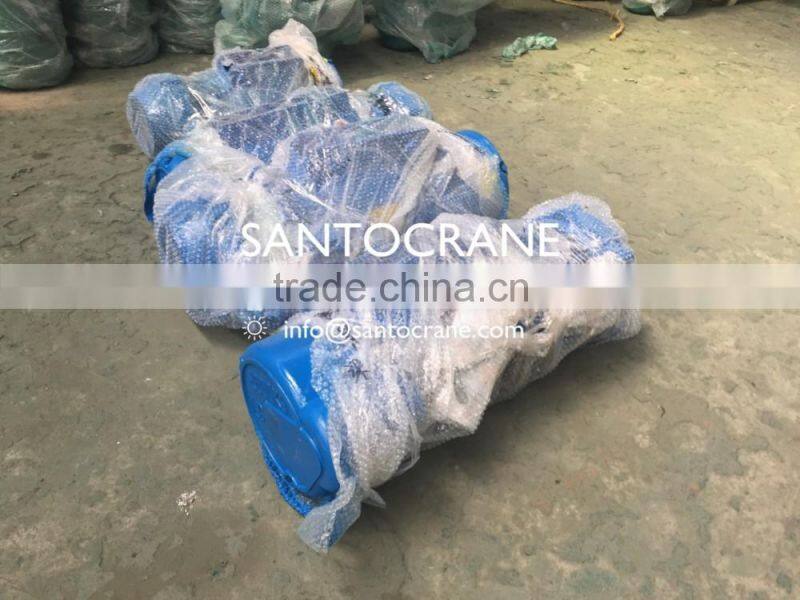

Packaging & Shipping

Certifications

Free inquiry

In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.

Load Capacity, ton:	(_______)
Lift Height, H, m:	(_______)
Voltage:	(_______)
Duty Class:	(_______)
? Hours per day:	(_______)
Control way:	(_______)
Lift Speed:	(_______)
Cross travel speed:	(_______)
Your nearest port:	(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton}

{Tips: 6m, 9m, 12m, 18m, 30m, More longer please note}

{Tips: 380V, 50Hz, AC, 3-phase or please note}

{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control or pendent control }

{Tips: Single speed, double speed, or stepless speed}

{Tips: Single speed or stepless speed}

{Tips: We quote CIF price need the port. FOB price please note FOB}

Looking forward your kindly inquiry and hope to help your strong business in near future!

Application

This CD1 MD1 Electric hoist is widely used for universal working area. if you have special request, we can also provide.

Explosion-proof electric hoist
Foundry workshop electric hoist
Cement facotry use electric hoist
European style electric hoist
Other we can also supply. please contact us info@
