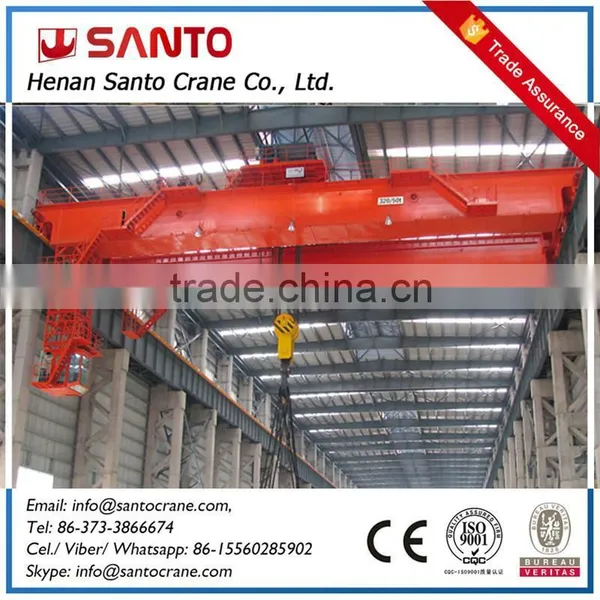

Non-Ferros Metallurgical Plant Isulation Bridge Crane

FOB Price

USD $8,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Qingdao/Tianjin
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	steel factory,workshop,plant,warehouse,storage,stock and so on	Rated Loading Capacity:	5ton-550ton
Rated Lifting Moment:	50KN-5000KN	Max. Lifting Load:	550ton	Max. Lifting Height:	24m
Span:	10.5m-31.5m	Place of Origin:	Henan, China	Brand Name:	Santocrane
Model Number:	overhead crane	Certification:	ISO CE	Warranty:	12 months
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Non-Ferros Metallurgical Plant Isulation Bridge Crane

LDA Single Girder Overhead Crane

Owing to the excellent features, LDA overhead traveling crane machine is able to meet the need of universal manufacture for light duty. The hoisting equipment is widely used in workshop, warehouse, factory, stock yard, etc.It is prohibited to use the LDA overhead traveling crane machine in the combustible, explosive or corrosive environment.



Safety Device
Overload protect device Limit switch for lifting Limit switch for CT & LT traveling Emergency stop system Electric current overload protect device Lower/Over voltage protect device Phase order protection no-voltage protection
Features
All the standards which is required for the crane is the Chinese standard, but we also have the CE, ISO,SGS certificates to pass international standard. Appearance: compact size, building headroom low light self-weight. Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling. Temperature: - 25°c ~ 40°c Bridge crane working duty : A3

HD Single Girder Overhead Crane

HD type single girder overhead crane is owing special features such as low light wheel, low dead weigh help lower down the cost for workshop construction. Duty Class A5 can working more frequently to fit the production increasing. help to have a strong business in near future! Stepless control speed could also help the precise position and improve the working efficiency at same time.



Safety Device
Overload protect device Limit switch for lifting Limit switch for CT & LT traveling Emergency stop system Electric current overload protect device Lower/Over voltage protect device Phase order protection no-voltage protection
Features
Appearance: compact size design, building headroom low light self-weight. Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling. Temperature: - 25℃ ~ 40℃ Bridge crane working duty : A5

Crane Part

SWL	Span,S,m	Lift height,m	Duty Class	Lift Speed, m/min	B, mm	D ,mm	Wheel.Load, kn	Run way, m	Power,KW	Weight,Kg
10000	6	6	A5/2m	5/0.8	850	2190	47.1	p38	10.6	2000
10000	9	6	A5/2m	5/0.8	930	2190	51.9	p38	10.6	2520
10000	12	6	A5/2m	5/0.8	1060	2190	56	p38	10.6	3440
10000	15	6	A5/2m	5/0.8	1190	2680	59.4	p38	10.6	4100
10000	18	6	A5/2m	5/0.8	1300	3120	63.4	p38	10.6	5490
10000	21	6	A5/2m	5/0.8	1420	3520	66.3	p38	10.6	6500

* We could supply Euro single girder overhead crane up to SWL 20 ton. More infomation please contact us.

Electric Hoist part

Cap.	Lift height	Code	Lift speed	Lift power	Travel speed	Travel power	Lift duty class	Travel duty class
t	m	Code	m/min	KW	m/min	KW	Lift duty class	Travel duty class
10	6	ST10 2411FHNA	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5
	9	ST10 2411FHNB	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5
	12	ST10 2411FHNC	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5
	15	ST10 2411FHND	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5
	18	ST10 2411FHNE	5/0.8	9.5/1.5	5/20	0.75	2M/M5	2M/M5

QD / LH Double Girder Overhead Crane

LH / QD double girder overhead crane is a heavy lift equipment for general industry application. These type is more durable and reliable than single girder overhead crane. Duty class of LH double girder overhead crane is A3~A4 while this type can fit the low headroom very well. QD type is more heavy type.

Safety Device
Overload protect device Limit switch for lifting Limit switch for CT & LT traveling Emergency stop system Electric current overload protect device Lower/Over voltage protect device Phase order protection no-voltage protection
Features
All the standards which is required for the crane is the Chinese standard, but we also have the CE, ISO,SGS certificates to pass international standard. Appearance: compact size, building headroom low light self-weight. Using environment: mechanical processing workshop, metallurgical plant auxiliary workshops, warehouses, the field and power stations of transport, assembly and maintenance and handling. Temperature: - 25°c ~ 40°c Bridge crane working duty : A3 ~ A8


1. Compact Gear Motor	2. Limit Switch
Smooth traveling and lifting work, Low Dead Weight Low Noise German Quality, Safety and Durable	Safe Limit Switch for Lifting and Traveling Incase of load crash the top of lift mechanism Incase of trolley or Crane crash to the end of track.
3. Small and high strength Wheel	4. Aviation Revos
Small euro-type wheel help lowen the whole dead weight of the overhead crane Advanced Wheel shape design lower the noise and make the traveling more smoothly	With this Aviational Revos, the Electrical box has a higher protect class, Safety and Reliable
5. Hook
DIN standard hook with block High strength and with cover, Beautiful and pratical

Appliacation

Serving many types of industries has given Shengqi Crane a broad list of experiences.

Non-Ferros Metallurgical Plant Isulation Bridge Crane

Manufacturing
Power Plant
Wind Energy
Foundries
Food and beverage
Plastic Injection Molding
Die Casting
Hydro power
Packaging/Printing
Steel mill
Paper
Chemical
Pharmaceutical
Rubber

Glass
Agriculture
Automotive
Water Treatment
Aerospace
Concrete/Cement
Military/Government
Machine tool
Mining
Petro Chemical
Steel distribution
Aluminum extrusion
Transportation and Shipping
Galvanizing

Purchase parts list

Shengqi has a very strictly purchase part selection system. We do all is to help improve our customers experience of Shengqi Crane

Non-Ferros Metallurgical Plant Isulation Bridge Crane

No.	Items	COOPERATE Manufacturers
1	Motor	Sino-US KDS Motor Factory Nanjing Special Motor Factory Wuxi XINDALI Motor Factory ABB-China SEW(Gearmotor)-German
2	Gear Box	SEW-German Jiangsu Tailong Reducer Factory Jiangsu Taixing Reducer Factory Shanghai TGS Transmission Equipment Co., Ltd. GUOTAI
3	Wire Rope	Italy Redaelli S.p.A. Nantong Wire Rope Factory
4	Electrical	CHINT Schneider SIMENS
5	Converter	Yaskawa Electric (China) Co., Ltd. Mitsubishi Schneider ABB-China
6	Controller	Lee's Hi-Tech Enterprise Co.,LTD. HBC-German Jay-Electronique
7.	Shaft	China: HRB/LYC/ZWZ SKF/FAG/NTN/IKO/KOYO/NACHI/TIMKEN

Maintenance and installation

Shengqi provide one-stop service for overhead crane and gantry crane designing, developing, manufacturing, transporting, installation, operator training and maintenance.

Packagement and Shipment

Incase of the demage from Shipment, Shengqi Know how to protect the overhead crane of the greatest degree.

Overseas friend visiting!

Factory View

Our Equipment

Related product Case

Seeing is believing! We only speak with facts!

Single Girder eot crane, Bridge Crane, Eot Crane

Project 1: LDA single girder eot crane

8 sets single girder eot crane for 4 spans machining workshop!

Load capacity:	10 ton	(we can supply 1 ton to 20 ton, more high we recommend double girder eot crane)
Span:	16.7 m	(Standard we could supply span max to 40m, please contac our sales manager for more details)
Lift height:	4.5m(6m)	(We can supply as your request)

	SAFETY FEATURES
	Overload protect device Limit switch for lift and cross travel Protection for Electrical part Emergency stop system

Painting color could be red, orange, or safety yellow.

Project 2: ND new European design single girder eot crane

6 sets single girder eot cranes for 2 spans Steel structure producing workshop!

Load capacity:	10 ton	(we can supply 1 ton to 32 ton, more high capacity we recommend double girder eot crane)
Span:	18 m	(Standard we could supply span max to 40m, please contac our sales manager for more details)
Lift height:	6m	(We can supply as your request)

	FEATURES
Working duty: M5 Stepless speed for lifting, cross traveling and long traveling Small wheel and compact design for low dead weight, this highly save the construction cost. Unique wheel design, make little noise than China standard type. Overload protect device Limit switch for lift and cross travel Protection for Electrical part Emergency stop system

Double Girder eot crane, Bridge Crane, Eot Crane

Project 3: LH Light duty double girder eot crane

LH type double girder eot crane is design for low headroom where single girder eot crane can not fit the space. Unique trolley structure design make the crane saving more space for working.

Lift capacity we could provide up to 32 ton, Span up to 40m, lift height we could provide as customers' request.

	FEATURES
	Overload protect device Limit switch for lift and cross travel Protection for Electrical part Emergency stop system

Project 4: QD Medium to heavy duty double girder eot crane

For heavy cargo and high frequency lift working, QD type can highly fit the need. QD type is with the features of single speed for all machanism and all with soft start motor to make sure the smooth moving. It's very suitable for the working need where don't need the various speed, and saving cost for investment.

Lift capacity we could provide up to 550 ton, Span up to 40m, lift height we could provide as customers' request. or if your workshop need more special design, It's better to show us your workshop drawings and we will provide you a full solution just for yours.

	FEATURES
	Overload protect device Limit switch for lift and cross travel Protection for Electrical part Emergency stop system

Belows are projects we installation at customers' site.

Project 5: Double girder eot crane with chain hoist trolley

Simple structure with high working efficiency, High fix the customers' need.

9 sets double girder eot cranes for 3 spans Electrical assessment workshop!

Load capacity:	2 ton	(we can supply 0.5 ton to 15 ton, more high capacity we recommend double girder eot crane)
Span:	12 m	(Standard we could supply span max to 40m, please contac our sales manager for more details)
Lift height:	3.5m	(We can supply as your request)

	FEATURES
	Overload protect device Limit switch for lift and cross travel Protection for Electrical part Emergency stop system

Belong these type cranes, we are also good at provide equipment for heavy industry.

Such as magnet crane for steel products,

Grab crane for bulk materials,

foundry crane for steel metal ladle and steel producing and so on.

We Shengqicrane also produce lot spare parts such as motor, end girder, electric hoist, grab, magnet chuck, overload protect device, limit switch and so on. Welcome your inquiry.

Agency wanted

Industry crane such as eot crane, gantry crane is very popular in the world, especailly for mid east, Brazil, Africa and south Asia. We exported many cranes per year, now in order to explore the oversea market , High quality angency wanted, if you have interest, please consulting our sale manager. We will do our best to provide any support for your success.

For more information please consulting our sales Manager

Our Services

Service

As a lift equipment manufacturer with over 30 years experience, we Shengqi Crane has set up a perfect sales network and after-sales service system. We have 42 sales managers and 10 engineers especially for exporting business. We believe with our rich experience, we can provide you a professional solution supporting and satisfied service.

After Order

OVERHEAD CRANE 10 TON, SINGLE GIRDER OVERHEAD CRANE 10 TON DOUBLE GIRDER OVERHEAD CRANE 10 TON

Delievery Time: After signing the contract and recieving the depoist, the production will take 15~25 working days. Special standard make cost 5~10 more working days.
Order Tracking: After the depoist recieved, there will be a professional team tracking the order from prodction to package and shipment.
Crane Testing: All the materials are purchased from high quality supplier in China or the world, beyond this, we also make commissioning and test before packagement to avoid the trouble back.

After-sale Service:

OVERHEAD CRANE 10 TON, SINGLE GIRDER OVERHEAD CRANE 10 TON DOUBLE GIRDER OVERHEAD CRANE 10 TON

Warranty Period: We provide 12 month warranty for main body. Within 12 month, there is any quality problem with the main body(not including the wearing parts), we will arrange our professional engineers to provide repairment service. Also we will provide one group wearing parts for free.
nstallation Service: If customer don't need our engineers for installation, we will provide Remote Advisory Services. Also we could arrange engineers to provide installation service if customer need.
Periodic follow up for cranes serving situation. Collecting customers comment, develop better products and service.
Any problems come out in the usage, if that because of the quality we will take full responibility, and arrange professional after-sale department to provide solution. if that because of the misoperation or other problems, we will also provide a professional technological supporting or arrange our engineers to help if customer need.

Free inquiry

Non-Ferros Metallurgical Plant Isulation Bridge Crane

In order to make a very quick offer and saving your waiting time, It's better to fill the information below. Copy and send us the information together with the enquiry.

Load Capacity, ton:	(_______)
Span, S, m:	(_______)
Lift Height, H, m:	(_______)
Voltage:	(_______)
Duty Class:	(_______)
? Hours per day:	(_______)
Control way:	(_______)
Lift Speed:	(_______)
Cross & Long travel speed:	(_______)
Rail supply needed	(_______)
Power supply system needed	(_______)
Your nearest port:	(_______)

{Tips: 5 ton, 10 ton, 16 ton, 20 ton, 30 ton, 40 ton, 50 ton up to 550 ton}

{Tips: 6m ~40m}

{Tips: 380V, 50Hz, AC, 3-phase or please note}

{Tips: A5, A3, If you don't know, please fill the follow}

{Tips: Remote control, cabin control or pendent control }

{Tips: Single speed, double speed, or stepless speed}

{Tips: Single speed or stepless speed}

{Tips: If yes, please note the Long travel length}

{Tips: We quote CIF price need the port. FOB price please note FOB}

If your workshop roof is very low, Its better to send us a drawing, a sketch or show us datas and then our Engineer can work out a full suitable solution just for yours.

Looking forward your kindly inquiry and hope to help your strong business in near future!
