Specifications
Led Downlight 7w Qualified3W 5W 7W 10W 12W 15W
Epistar LED Chip
50000hrs lifespam

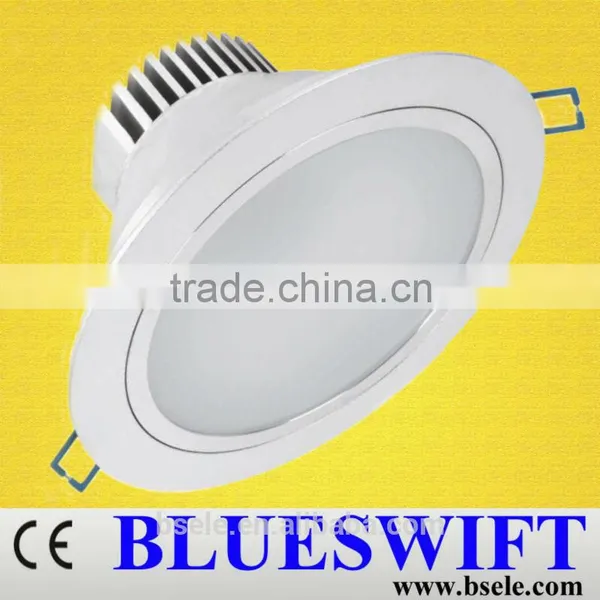

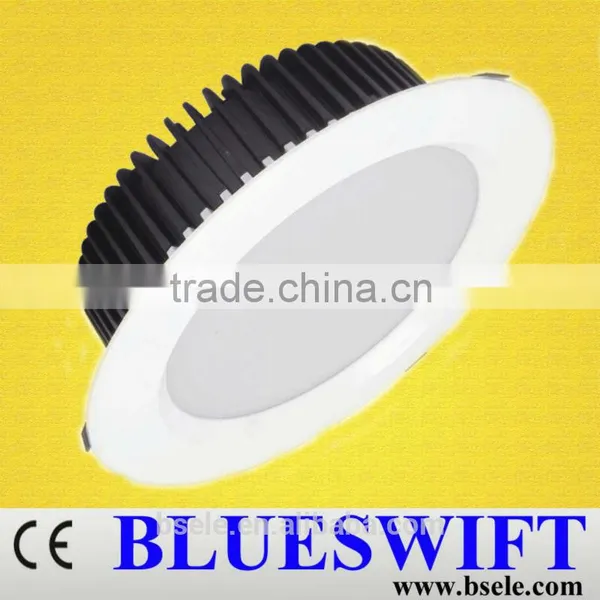

Led Downlight 7w Qualified
Specifications
| Model | BS-074-7W | CRI | WW | Ra>73 | |
| LED Brand | Epistar | PW / CW | Ra>78 | ||
| LED Power | 7W | Lamp Efficiency | >85% | ||
| LED Color | Warm white, Pure white, Cool white | Lumens Output | WW | 1000lm | |
| Input Voltage | AC85~265V | PW | 1025lm | ||
| Frequency Range | 50Hz – 60Hz | CW | 1050lm | ||
| Power Factor | >98% | Beam Angle | 90°120° | ||
| Power Efficiency | >85% | Installation | Recessed | ||
| Luminous Efficiency | 85LM/W | Housing Color | Silver Grey | ||
| Dimension | Φ140*60mm(120-125mm cut-out) | Working Temperature | -40°C ~ +55°C | ||
| Color Temperature | WW | 2700-3500K | Storage Temperature | -25°C ~ +65°C(25°Cbest) | |
| PW | 4000-5500K | Life span | 35000~50000hrs | ||
| CW | 6000-7000K | Certification | CE, RoHS, CB, CRP | ||
BS-074 Series Specifications
| Product Code | Power | Voltage | Power Factor | Level of Protection | Hole Size | Shine Angle | Luminance (lum) |
Lamp Size |
| BS-074 | 3W | AC85-265V | >0.95 | IP44 | 65mm | 120° | 255LM | Φ90xH55mm |
| BS-074 | 5W | AC85-265V | >0.95 | IP44 | 65mm | 120° | 425LM | Φ90xH55mm |
| BS-074 | 7W | AC85-265V | >0.95 | IP44 | 86mm | 120° | 595LM | Φ110xH60mm |
| BS-074 | 10W | AC85-265V | >0.95 | IP44 | 86mm | 120° | 850LM | Φ110xH60mm |
| BS-074 | 12W | AC85-265V | >0.95 | IP44 | 110mm | 120° | 1020LM | Φ140xH60mm |
| BS-074 | 15W | AC85-265V | >0.95 | IP44 | 110mm | 120° | 1275LM | Φ140xH60mm |
Features
• Round Type, White Housing Body
• Clear PC Cover, Independent Driver
• Testing reports are available
• Low power consumption, High power efficiency
• Compact of aluminum material, superior thermal performance, high applicability
• LED downlight series using high-purity aluminum material
• Nice shape design of the products, strong texture
• More compact and efficient heat dissipation
• Umlimited compatible luminaire available
Advantages
• With Epistar COB inside, 3 years warranty for LED light engine
• Pure aluminium material, good heat dissipation
• Easy installation with no ballast & starter needed, Instant start
• Easy to replace the LED light engine by twisting, even they have been made my different manufactures(YUSING, PHILIPS, OSRAM, GE)
• Low voltage constant current driver, more secure
• Lamp life time up to 30,000 hours, low-carbon cost and 3 years' warranty time
• Can save more than 80% energy than traditional bulbs
Typical Applications
• Holtels
• Office
• Meeting room
• supermarket
• Colthing stores
• home furnishing lighting
Quality Control
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
Trade Terms
• Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
• Lead time : normally in 5~10 days after deposit received
• Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
• Shipping port: Guangzhou , China
• Discounts : We offer discount for big quantity.
Delivery Detail
•We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
Our Services
• For all your inquires about us or our products, we will reply you in detail within 24 hours
• We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
• We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
• We have very experienced R&D engineers and we have strong ability to do ODM projects.
