Foam Filter for filtration

Specifications

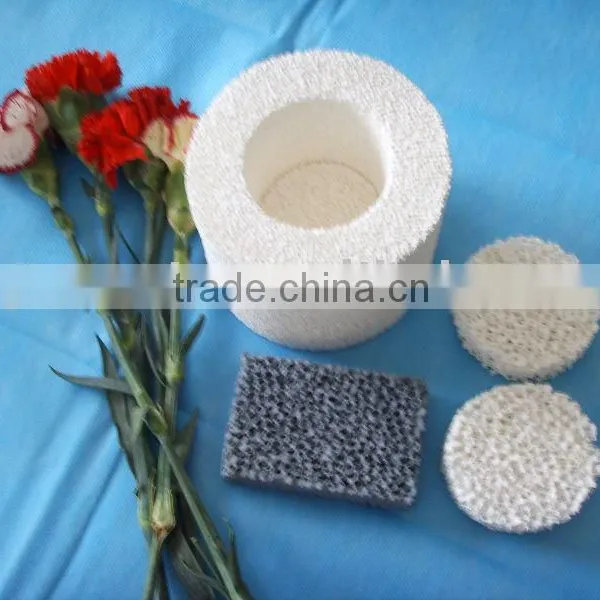

Ceramic Foam Filter
Apply to purge solution of carbon steel,steel alloy&stainless steel,Improve solution steel casting

Ceramic Foam Filter



1.(Silicon Carbide Foam Ceramic Filter)
The status of requisite moulding temperature of ferroally solution and no pollution melting metal solution, decide that the basic material of Foam Ceramic Filte is SIC. Apply to purge and filter solution of  nodular castiron   malleable castiron  castiron and other iron casting.
2.(Zirconia Foam Ceramic Filter)
The status of   requisite   moulding temperature of steel solution and no pollution melting  metal solution, decide that the basic material of Foam Ceramic Filte is ZrO2. Apply to purge and filter solution  of steel  high temperature metal  such as steel alloy  stainless steel etc.
3.(Magnesia Foam Ceramic Filter)
Due to magnesium alloy is vivider than other nonferrous metal, magnesium alloy solution can filter easily react with the main material of foam ceramic filter, such as SiO, Al2O3 and liquate rapidly ceramic filter. So that magnesia or other oxide ceramics adopted to filter magnesium alloy.
4.(Alumina Foam Ceramic Filter)
CFA isAl2O3, with refractoriness:1400  , high strength and good heat-resistance wallop, apply to purge and filter solution of Aluminium alloy and other nunferrous alloy.
5. Usual Specification and Select
Base on technological design of foam ceramic filter:
1) Select suitable temperature filter according to kinds of alloy, the filter should not exceed temperature and damage.
2) Select suitable bore density, purification is fit in with quality of casting.
3) Select dimension of suitable filter, not increase time of moulding.
4) Reduce the second dreg.
5) Porosity: Filter 80-90% when founding

6. Usual Specification of Production
Circle(mm):
We can provide you all kinds of product by you desire.

7. Other Use
1). Environmental protection industry: Purification of high-temperature gas with dust, waste water and grem, silence of all kinds of noise.
2). Biochemcial industry: Use to biological enzyme carrier in medical preparation, filter all kindsof wine, fruit juice, water.
3). Chemical industry: Heat resistance foam ceramic filter should be installed in the front of catalyst carrier so that it can filter powder. It use to gas absorb tower, reactive tower and carbonating tower and others.

8. Filter and Purification:
In the process of casting production, filter and purification of liquid metal is important link for ensuring innor quality of casting. Foam Ceramic Filter can absorb and filter foreign matter. It has broad applicable scope and distinctly improve mechanical function of casting.

9. Sales service:
There are some special sales service man and special enginer for clients servicing in our corporation. The clients which use our products will be supported for full technology. We would keep on providing guide of design, production, install and using of moulding filter system until satisfy you.

Please contact with me now if you want the products. Contact us is your wise choice. We can make you competitive price, supply you super quality, give you our best service.

We are looking forward to your kindly enquire.Thanks!
