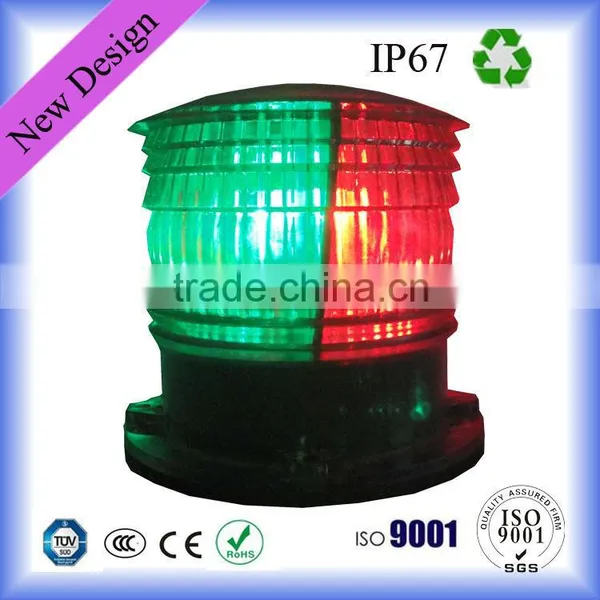

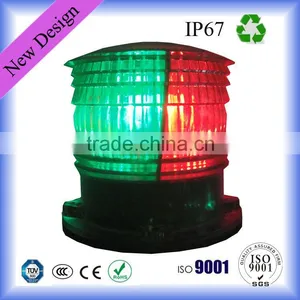

Solar Warning Light
The products are the most advanced solar-powered LED Light and ideal for all types of permanent or temporary lighting or warning application. It installs in minutes and requires no maintenance or servicing for up to five years.
Features and Benefits
Available in blue, red, amber , white and green.
Can be ordered in “steady on ”or one of six common flash patterns.
Automatically turns on at dusk and off at dawn
Completely self-contained and watertight. Designed to operate reliably in harshest of environmental and work conditions.
Polycarbonate lens is virtually indestructible
Will charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.
Manufactured to ISO9001:2000 Quality Assurance standards .
Proprietary, patented dome protects solar panel while improving efficiency, sheds snow.
LSL 301: 8LEDs, Flashing or steady on
LSL 302: 16LEDs, Flashing
LSL302+: 16LEDs, Flashing, Magnetic Base
Typical Applications
Flag markers
Yard lighting or safety marker
Barricade markers
Out building markers
Security lighting
Temporary facility markers
Lighting in the side of roads or rivers
Solar pharos
Navigation buoy
Air navigation
Apron edge lighting
SPECIFICATIONS
Technical Parameters(LSL301,LSL302) | ||
Light Output Module |
Flashing,photosensory |
Steady on,photosensory |
LED Quantity |
8pcs |
16pcs |
Green |
10.4~12.0 candela |
6.5~7.5 candela |
Blue |
5.4~7.2 candela |
3.0~4.0 candela |
Amber and white |
12.0~16.0 candela |
7.5~10.0 candela |
Red |
8.0~12.0 candela |
5.0~7.5 candela |
Nominal Distance At Night |
3.1km ~5km |
2-3km |
Vertical Divergence |
±3.5° at 50% intensity |
|
Horizontal Output Angle |
360°,225°,180°,112.5°, |
|
Operation |
|
|
Minimum autonomy time |
140hours |
70hours |
Latitude Range |
55°S to 55°N |
|
On/Off Level |
60/100 Lux |
|
Lifespan of LEDS |
up to 100,000 Hours |
|
Solar panels |
|
|
Type |
Poly-crystalline |
|
Maximum power |
1.1 watts |
|
Efficiency |
16% |
|
Battery |
|
|
Type |
Nickel-Hydrogen replaceable |
|
Capacity |
4.6Ah/2.4v |
|
Product structure |
|
|
Lens Material |
Polycarbonate |
|
Weight |
0.9kg |
|
Carton Size: |
Outer carton:540*370*200mm Carton :190*190*190mm |
|
Application Environmental |
Temperature Range -40°C to +60°C |
|
IP Rating |
IP67 |
|
Quality control and Patents |
|
|
Quality Assurance |
ISO9001:2000 |
|
Patents Chinese patents |
02224444.1 and 200430015589.3 |
|
At the bottom of the product features
LSL301 used at the airport of Salt Lake City of America.
Our factory majoy in various types Solar Warning lights,we have 9 years export experience and 15 years produce experience,we are not only delivering environment-friendly products to our customer worldwide,but also provide you the best service.
Your earlier favorable enquire for us would be highly appreciated!
Visit us,Choose us,thank you for your friendly business support!
