Color Solar Flashing Warning light ( Used in Ships,Boats,Yacht,Buoys,Mining Truck Roads,Airport etc )

Solar Flashing Warning Light

The products are the most advanced solar-powered LED Light and ideal for all types of permanent or temporary lighting or warning application. It installs in minutes and requires no maintenance or servicing for up to five years.

Features and Benefits

Available in blue, red, amber , white and green.

Can be ordered in “steady on ”or one of six common flash patterns.

Automatically turns on at dusk and off at dawn

Completely self-contained and watertight. Designed to operate reliably in harshest of environmental and work conditions.

Polycarbonate lens is virtually indestructible

Will charge under nearly all weather conditions and up to 100 hours of operating capacity from a full charge.

Manufactured to ISO9001:2000 Quality Assurance standards .

Proprietary, patented dome protects solar panel while improving efficiency, sheds snow.

LSL 301:  8LEDs, Flashing or steady on

LSL 302:  16LEDs, Flashing

LSL302+: 16LEDs, Flashing, Magnetic Base

Typical Applications

Flag markers

Yard lighting or safety marker

Barricade markers

Out building markers

Security lighting

Temporary facility markers

Lighting in the side of roads or rivers

Solar pharos

Navigation buoy

Air navigation

Apron edge lighting

SIZE

SPECIFICATIONS

Light Output                         FLASHING              STEADY ON

Effective Intensity

Green                        10.4~12.0 candela          6.5~7.5 candela

Blue                        5.4~7.2 candela            3.0~4.0 candela

Amber and white                   12.0~16.0 candela          7.5~10.0 candela

Red                         8.0~12.0 candela           5.0~7.5 candela

Nominal Night Range                    3.1km ~5km               1km

Vertical Divergence                                      ±3.5° at 50% intensity

Horizontal Output                                        360°

Operation

Minimum Autonomy                                120Hours        60Hours

Latitude Range                                            55°S  to  55°N

On/Off Level                                                   60/100 Lux

Lifespan of LEDS                                          up to 100,000 Hours

Solar panels

Type                                                 poly-crystalline

Potted with UV-protected

Polyurethane and doomed for higher efficiency

Maximum Power                                                 1.1 watts

Efficiency                                                       14%

Battery

Type                                     Nickel-Hydrogen    replaceable

Capacity                                                       4.6Ah

Construction

Lens Material                                            Polycarbonate

Sealing                                    Self-contained unit, potted with polyurethane

Weight                                                         0.9kg

Environmental and Electrical

Temperature Range                                        -40°C to +60°C

Waterproof                                                as per IP67

Quality control and Patents

Quality Assurance                                       ISO9001:2000

Patents                             Chinese patents: 02224444.1 and 200430015589.3

                  Other patents pending

*ALL THE SPECIFICATIONS ARE ROUGH AND SUBJECT TO CHANGE WITHOUT NOTICE

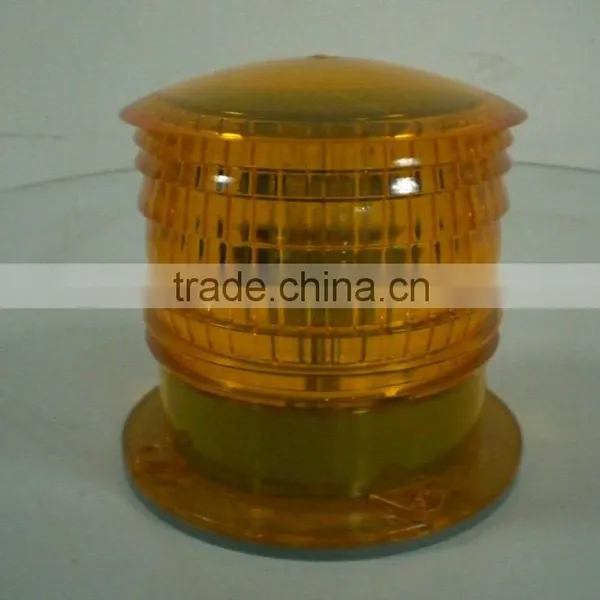

Pictures for your reference(Red flashing)

At the bottom of the product features

LSL301 used at the airport of Salt Lake City of America.
