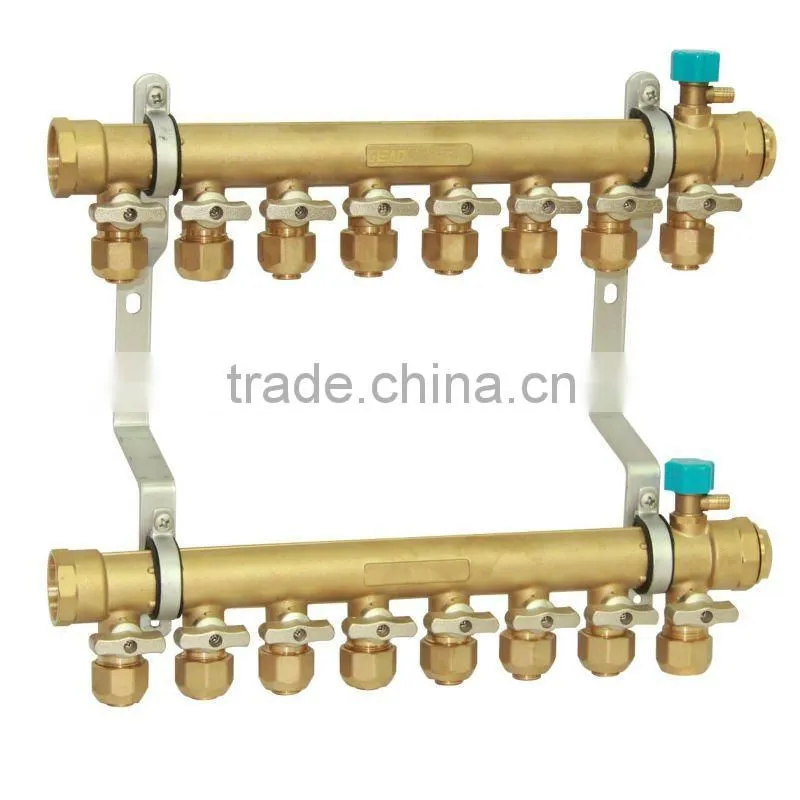

YH-A4 brass mainfold for with ball valve

Specifications

Material:Brass (Cu: 57~60%)
Size:DN32, 40, 50
Temp.: -20~120 degree
Pressure: 1.0MPa
Color:Polished, Ni or Cr plated

Products name: YUHE perfect type forging a body ball valve brass manifold.



Future:



1. 1 inch boutique forming a forging process
2. Product as a whole has 2 to 8 road, any more than 9 Road splicing
3. Diameter: 1 inch, nominal pressure: PN10, 45 spacing
4. Can be arbitrary with 20 or 16 export water
5. Precision forging brass, can be divided into two kinds of Brass and nickel plated
6. Suitable for water or glycol concentration is not greater than 60%
7. You can manually adjust the flow, such as configuration of the electric drive and room thermostat can be achieved according to the room temperature control system in each branch hot water turned on or off the effect.
8. Charge of five gap with the branch pipe connected to the completely "never leak"
9. Supervisors and the branch pipe with manual flow balancing valve
10. Ball valve with live then the outlet, to facilitate pipe cleaning
