Home > Manufacturing & Processing Machinery > Crane > Tower Crane > QTZ200 70m 12t Tower Crane ISO9001&CE Approved

QTZ200 70m 12t Tower Crane ISO9001&CE Approved

Name: QTZ200 70m 12t Tower Crane ISO9001&CE Approved
Brand: XCMG
SKU: 102148359
Availability: InStock

QTZ200 70m 12t Tower Crane ISO9001&CE Approved thumbnail-1

QTZ200 70m 12t Tower Crane ISO9001&CE Approved photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Application:

high building

Rated Loading Capacity:

Contact Supplier Request Quote Chat Now

Shandong Sea Project Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application high building

Rated Loading Capacity 2t

Rated Lifting Moment 200t.m

Max. Lifting Load 12t

Max. Lifting Height 200m

Span 70m

Place of Origin Shandong, China

Brand Name XCMG

Model Number QTZ200(7020)

Certification ISO9001&CE

Specifications

1.QTZ200 70m 12t Tower Crane
2.Independent Height:50m
3. Max Height:200m
4.Max Lifting load:12t
5. ISO9001&CE Certificat

XCMG QTZ200 70m 12t Tower Crane ISO9001&CE approved

Production Description

With Hydraulic Self-raising Mechanism
Variable-frequency Slewing Mechanism .
Safety Monitoring System (Black Box)
With Operation Data Display Screen
.With Famous Jiangte Motors
With Various Safety Devices
With Reassembled-type Climbing Frame

Model	QTZ Tower Crane
Brand	XCMG
Model	QTZ200(7020)
Jib Length(m)	70
Free Height(m)	50
Max. Possible Height (M)	200
Max. Load (T)	12
Tip Load (T)	2
Wall-attached Devices for Max Height (sets)	7
Main Material (mm)	140X140X16 Angle steel welding
Mast Section Dimension (m)	2.083x2.083x3
Hoisting Speed (a=2) (m/min)	0-102
Mini. Stable Falling Speed (m/min)	2
Slewing Speed (r/min)	0-0.7
Radius-changing Speed (m/min)	0-80
Total Jacking-up Speed (m/min)	0.46
Total Motor Power (kw)	117.5
Power Supply	380V/50HZ
Weight of Indepent Structure(T)	72.3
Counterweight(T)	27.75
Base Form	#beam without ballast
Container Needed	*9 40’HQ CONTAINER + 1 * 40’OT**

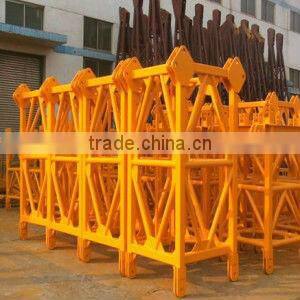

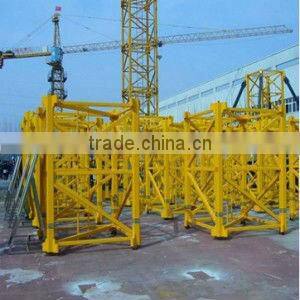

Details show

Outstanding Features

1.The tower crane is a combination of advanced technologies of the present day. It is equipped with a hydraulic self-raising mechanism and afrequency-converting slewing mechanism.

2.The electric control system of the tower crane adopts the advanced “PLC + frequency converter” control mode of the present day, which has realized the stepless speed regulation and greatly improves the reliability, maneuverability and stability of the control system and the work efficiency of the tower crane.

3.The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter andmultifunctional limiter to control the load moment, hoisting capacity and trolley traveling range.Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns.

4.The use of world-famous electric components such as OMRON, YASKAWA, Schneider (TE) and MEAN WELLgreatly reduces the failure rate of the electric control system and improves the work efficiency of the users.

5.Besides, there are also electric safety devices like anemoscopes and obstacle lights and mechanical safety devices to prevent the breaking of trolley axles and wireropes.

Payment

1.Wire Transfer

2.West Union

All around the world

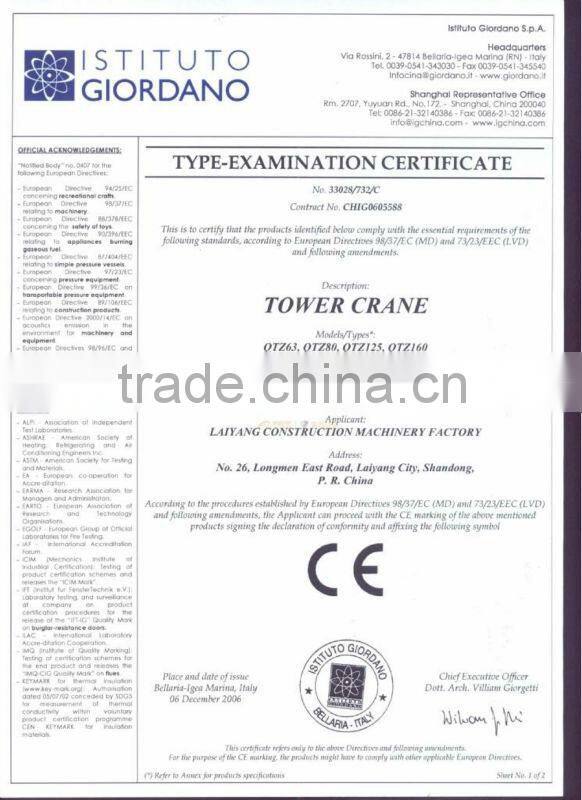

Certification

Designing tower crane is available:

To provide you detailed quotation, we need to confirm the following details.

1.The height of the tower crane you needed.
2.The tip load and max loading you needed.
3.The span of the tower crane
4.The voltage frequency in your country
