Specifications
agricultural machine1.100HP engine,2.5m cutting width
2.low grain loss rate
3.large grain tank
4.suit rice wheat harvest
4LZ-3A wheat combine harvester agricultural machine
| Product Main Technical Specification:) | ||||
| Model | Type No. | 4LZ-3A | ||
| Structural style | full feed self-propelled wheel type | |||
| Function | reap, thresh, cut and crash the straw | |||
| Size ( L, W, H ) | 6910*3000*3230mm | |||
| Net weight | 5305kg | |||
| Gear box | mechanical | |||
| Engine | model | 4108, diesel | ||
| style | four-cylinder water cooling | |||
| power | 100HP | |||
| speed | 2400r/min | |||
| Oil tank | 222L | |||
| Oil consumption | ≤20kg/hectare | |||
| Performance | Cutting width | 2500mm | ||
| Feed quantity | 3.0-4.0kg/s | |||
| Work efficiency | 0.6-0.8hectare/h | |||
| Minimum ground clearance | 280mm | |||
| Total loss rate | ≤1.2 %(wheat), ≤3%(rice) | |||
| Seed damage rate | ≤1.0 % | |||
| Impurity rate | ≤2.0 % | |||
| Stubble height | 130mm | |||
| Grain unloading way | Mechanical unloading | |||
| Grain Tank | 1.7m³ | |||
| Wheel | Type of drive | 2 wheels drive | ||
| Tyre size | guide | 10-15 | ||
| drive | 15-24 | |||
| Min.radius of curve | left turn | 7900 mm | ||
| right turn | 7400 mm | |||
| Transportation and Package | / | 1 set in a 40'HC (dis-assembled ) | ||
| Product Features:) * Enlarge the sieve area, 920mm width, improve sieve efficiency. * The last sieve adjustable, can suit different grains. * Multi-level cleaning system, connect blowing and inhaling, make the grain more clean, no grass, no chaff. * Wider grain elevator, enlarged granary, reduce unloading grain times. * Sealed cab, reduce the noise and shake, make the driver feel more comfortable. * Lengthen the middle bridge, better and clearer field of vision for the driver. * Steering wheel in one side of the cab. * Special cutter device, can suit wheat and rice harvesting. | ||||

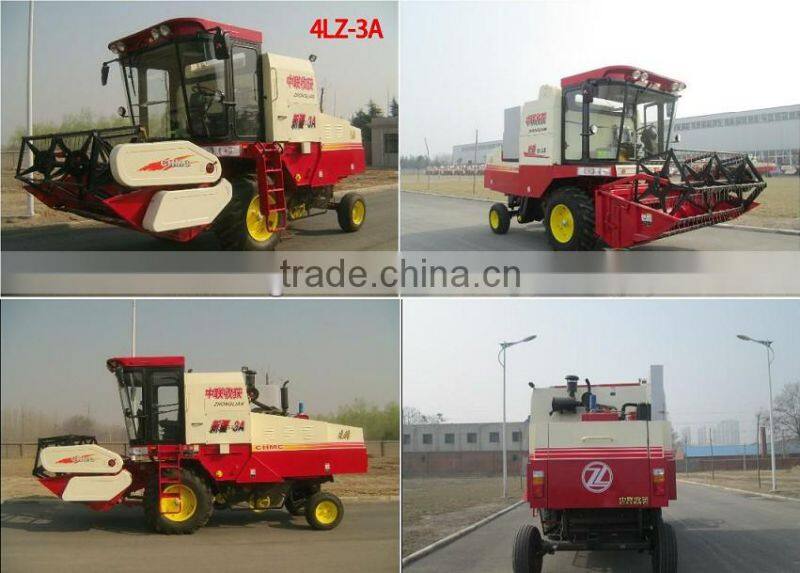

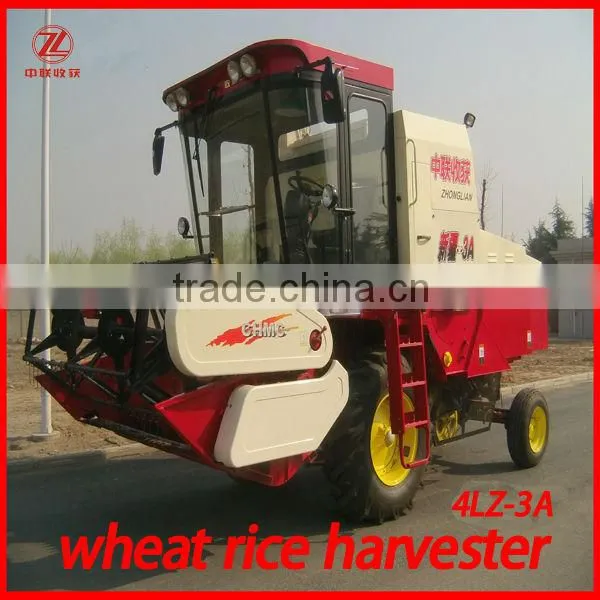

Product Pictures:)
Company&Factory:)
Zhengzhou Zhonglian Harvest Machinery Co., Ltd, which is set up basing on original Zhengzhou Harvester Factory
( was built in August 1995), is a joint-stock enterprise specializing in spare parts manufacturing, complete machine
assembling and sales service of harvesters, and is the earliest harvester manufacturing company in China. At present,
our company has 360 employees, and 46 technical engineering personnel. The factory of company has a land area of
over 150,000 square meters with companies registered capital RMB 30 million. The company has 85 patents including
8 self-developed patents, and also has achieved ISO9001:2000 International Quality Management System Certification.
1. Manufacturer and exporter for crop combine harvesters which can harvest wheat, rice, corn, soybean, and rapeseed etc.
2. Offer competitive price.
3. Large production power, more than 6000sets machines annual output.
4. Quick delivery date, 7 working days after receiving the payment.
Our Factory:)
New Assembly Workshop:)
If you are interested, pls don't hesitate to contact us.
Any special requirements about the harvester, pls note it when you
send us email.
Wish you a nice day!
