4LZ-2A/4YZ-3X wheat harvesting mini machine, corn harvesting mini machine
| Product Main Technical Specification:) | ||||
| 4LZ-2A wheat rice combine harvester | ||||
| Model | Type No. | 4LZ-2A | ||
| Structural style | full feed self-propelled wheel type | |||
| Function | reap, thresh, cut and crash the straw | |||
| Size ( L, W, H ) | 6500*2780*3250mm | |||
| Net weight | 4600kg | |||
| Gear box | mechanical | |||
| Engine | model | 4108, diesel | ||
| style | four-cylinder water cooling | |||
| power | 90HP | |||
| speed | 2200r/min | |||
| Oil tank | 222L | |||
| Oil consumption | ≤20kg/hectare | |||
| Performance | Cutting width | 2360mm | ||
| Feed quantity | 2.0-3.0kg/s | |||
| Work efficiency | 0.4-0.7hectare/h | |||
| Minimum ground clearance | 320mm | |||
| Total loss rate | ≤1.2 %(wheat), ≤3%(rice) | |||
| Seed damage rate | ≤1.0 % | |||
| Impurity rate | ≤2.0 % | |||
| Stubble height | 150 | |||
| Grain unloading way | Mechanical unloading | |||
| Grain Tank | 1.3m³ | |||
| Wheel | Type of drive | 2 wheels drive | ||
| Tyre size | guide | 10-15 | ||
| drive | 15-24 | |||
| Min.radius of curve | left turn | 6850 mm | ||
| right turn | 7050 mm | |||
| Transportation and Package | / | 1 set in a 40'HC (dis-assembled ) | ||
| 4YZ-3X corn combine harvester | ||||
| Model | Type No. | 4YZ-3X | ||
| Structural style | full feed self-propelled wheel type | |||
| Function | pick, peel, cut and shatter the straw, return shattered straw to field | |||
| Size ( L, W, H ) | 5550*2050*2900mm | |||
| Net weight | 3500 kg | |||
| Gear box | mechanical | |||
| Engine | model | 4L88, diesel | ||
| power | 85HP | |||
| speed | 2600 r/min | |||
| Oil tank | / | |||
| Oil consumption | ≤20 kg/hectare | |||
| Performance | Cutting width | 1800 mm | ||
| Harvester rows | 3 rows | |||
| Peeling device | 3 sets | |||
| Peeling device material | steel roll + rubber roll | |||
| Rows distance | 450-750 mm | |||
| Work efficiency | 0.4 - 0.6 hectare/h | |||
| Drive speed | 2.88-20.1 km/h | |||
| Working speed when harvesting | 2.5-4.5 km/hour | |||
| Max unloading height | 1800 mm | |||
| Minimum ground clearance | 350 mm | |||
| harvest moisture required | ≤30%(corn grain), ≤60%(corn straw) | |||
| corn cob height from ground | ≥350mm | |||
| transverse and longitudinal slope required | ≤8° | |||
| Total loss rate | ≤4 % | |||
| Seed damage rate | ≤1 % | |||
| Peeling rate | ≥85 % | |||
| Straw crushing rate | ≥85 % | |||
| Impurity rate | ≤1.5 % | |||
| Stubble height | ≤100 | |||
| Grain unloading way | hydraumatic side dumping | |||
| Grain Tank | 1.2 m³ | |||
| Wheel | Type of drive | 4 wheels drive | ||
| Wheel distance | guide | 1300 mm | ||
| drive | 1300 mm | |||
| Tyre size | guide | 10-15 size | ||
| drive | 9.5-24 size | |||
| Min.radius of curve | left turn | 5100 mm | ||
| right turn | 5500 mm | |||
| Transportation and Package | / | 1 set in a 20'GP ( dis-assembled ) | ||
| 2 sets in a 40'HC ( dis-assembled ) | ||||
Product pictures:)

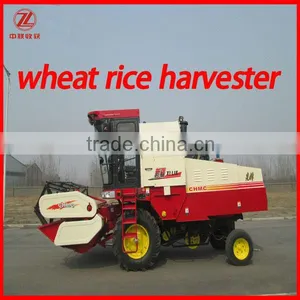

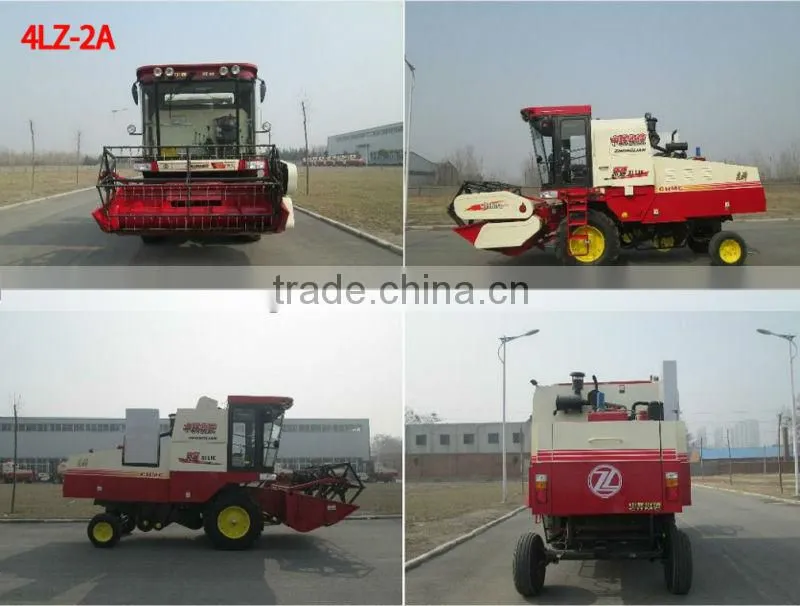

4LZ-2A wheat rice combine harvester
4YZ-3X corn combine harvester
Company&Factory:)
Zhengzhou Zhonglian Harvest Machinery Co., Ltd, which is set up basing on original Zhengzhou Harvester Factory
( was built in August 1995), is a joint-stock enterprise specializing in spare parts manufacturing, complete machine
assembling and sales service of harvesters, and is the earliest harvester manufacturing company in China. At present,
our company has 360 employees, and 46 technical engineering personnel. The factory of company has a land area of
over 150,000 square meters with companies registered capital RMB 30 million. The company has 85 patents including
8 self-developed patents, and also has achieved ISO9001:2000 International Quality Management System Certification.
1. Manufacturer and exporter for crop combine harvesters which can harvest wheat, rice, corn, soybean, and rapeseed etc.
2. Offer competitive price.
3. Large production power, more than 6000sets machines annual output.
4. Quick delivery date, 7 working days after receiving the payment.
FACTORY:)
NEW ASSEMBLY WORKSHOP:)
If you are interested, pls don't hesitate to contact us.
Any special requirements about the harvester, please note it when
you send us email.
Wish you a nice day!
