4YZ-3X Combine Corn Harvest Machine
US$ 21,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
agriculture
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Model for Combine Harvesting Corn MachineUS$ 21,000 - 55,000MOQ: 1 Set -
4YZ-3X Small Size Machine for Corn HarvesterUS$ 21,000 - 55,000MOQ: 1 Set
-
Peeling and Picker 4 Rows Maize Harvesting MachineUS$ 20000.00 - 20000.00MOQ: 1 Piece
-
4 Rows Combine Best Price Sweet Corn HarvesterUS$ 20000.00 - 20000.00MOQ: 1 Piece
-
4YZ-4 New Model 4 Rows Mini Corn HarvesterUS$ 20000.00 - 20000.00MOQ: 1 Piece
Condition
New
Application
agriculture
Type
Combine Harvester
Drive Type
Gear Drive
Usage
Corn Harvester
Place of Origin
Henan, China
Brand Name
CHMC
Model Number
4YZ-3X
Dimension(L*W*H)
5540*1840*3000mm
Weight
2910kg
Certificate
Other, ISO9001:2008
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

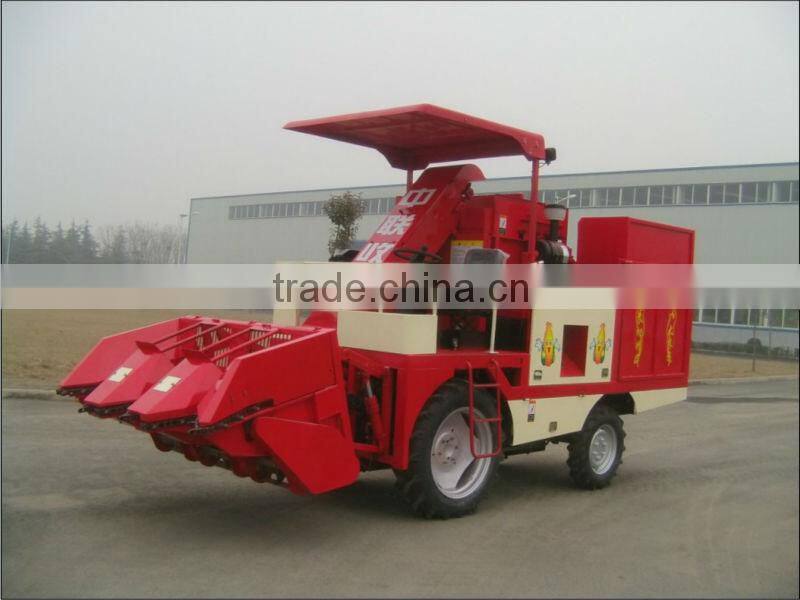

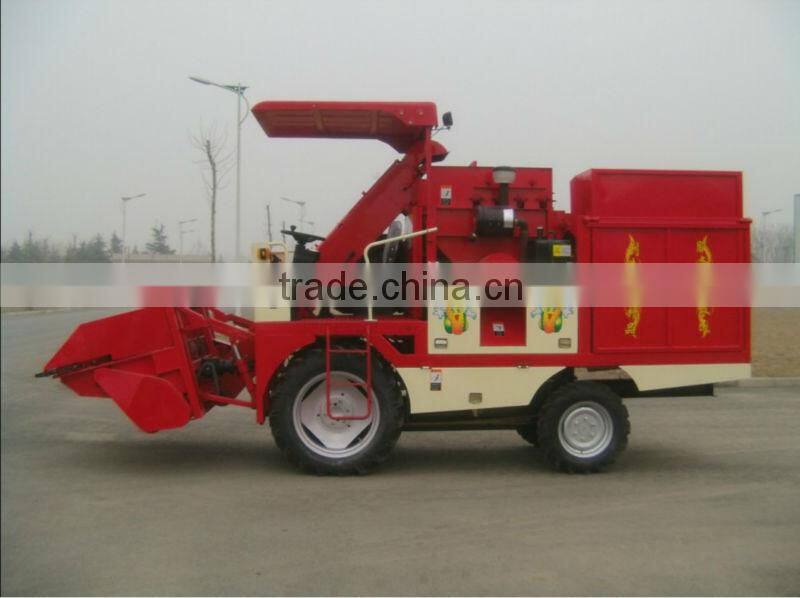

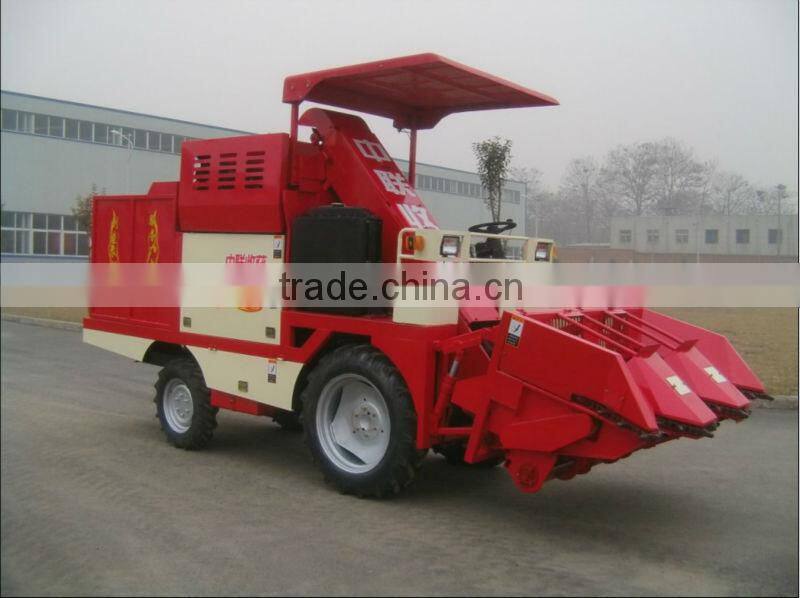

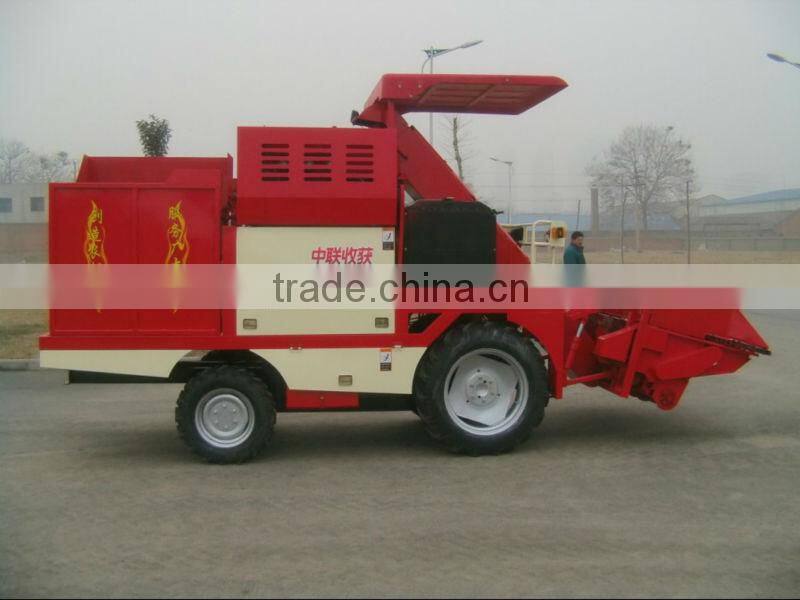

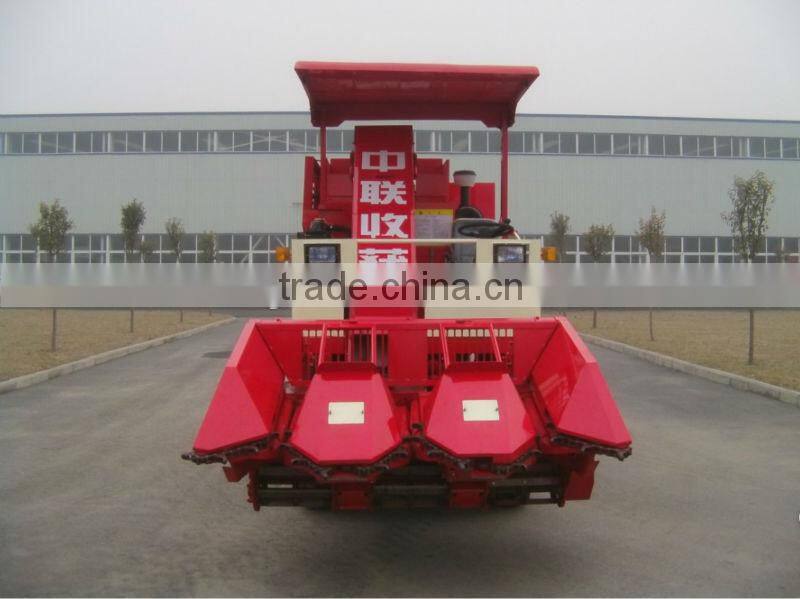

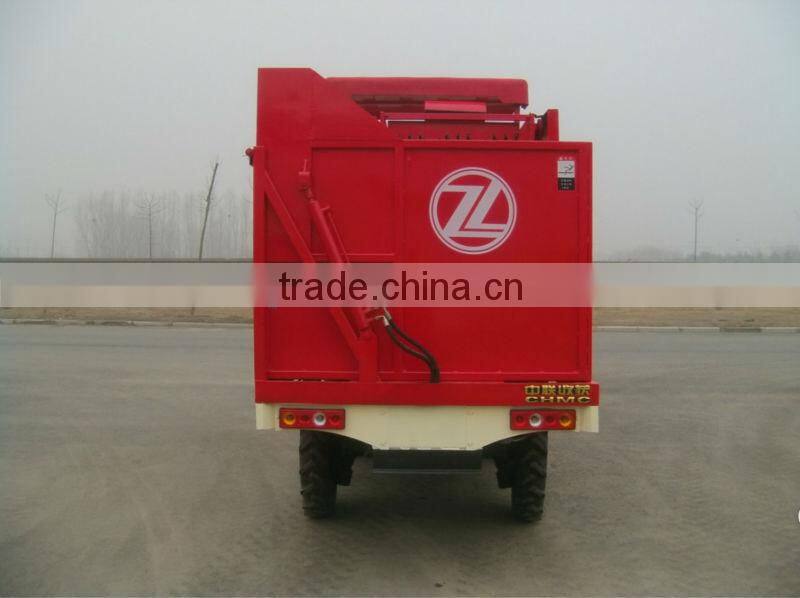

4YZ-3X combine corn harvest machine
1. Manufacturer and exporter for crop combine harvesters which can harvest wheat, rice, corn, soybean, and rapeseed etc.
2. Offer competitive price.
3. Large production power, more than 6000sets machines annual output.
4. Quick delivery date, 7 working days after receiving the payment.
| No. | Item | Unit | Specification | |
| 1 | Type | 4YZ-3X | ||
| 2 | Structural style | self-propelled wheel type | ||
| 3 | Function | picking, peeling, cutting and shattering the straw, returning shattered straw to field | ||
| 4 | Engine | model | 4L88, diesel | |
| power | HP | 90 | ||
| speed | r/min | 2600 | ||
| 5 | Size ( L, W, H ) | mm | 5540*1840*3000 | |
| 6 | Net Weight | kg | 2910 | |
| 7 | Harvester rows | row | 3 | |
| 8 | Rows distance | mm | 550-650 | |
| 9 | Cutting width | mm | 1800 | |
| 10 | Max unloading height | mm | 1800 | |
| 11 | Minimum ground clearance | mm | 350 | |
| 12 | Work efficiency | hectare/hour | 0.22-0.52 | |
| 13 | Oil consumption | kg/hectare | ≤20 | |
| 14 | Drive speed | km/h | 2.88-20.1 | |
| 15 | Working speed when harvesting | km/h | 2.5-4.5 | |
| 16 | Peeling device | set | 3 | |
| 17 | Peeling device material | steel roll + rubber roll | ||
| 18 | Gear box | mechanical | ||
| 19 | wheel drive | 4 wheels drive | ||
| 20 | Wheel distance | guide | mm | 1300 |
| drive | 1300 | |||
| 21 | Tyre size | guide | 6.50-16 | |
| drive | 9.5-24 | |||
| 22 | Min.radius of curve | left turn | mm | 5100 |
| right turn | 5500 | |||
| 23 | Total loss rate | ≤4 % | ||
| 24 | Seed damage rate | ≤1 % | ||
| 25 | Peeling rate | ≥85 % | ||
| 26 | Impurity rate | ≤1.5 % | ||
| 27 | Straw crushing rate | ≥85 % | ||
| 28 | Stubble height | mm | ≤100 | |
| 29 | Grain tank | m³ | 1.2 | |
| 30 | Grain unloading way | hydraumatic side dumping | ||
| 31 | Transportation | 1 set in a 20'GP ( dis-assembled ) | ||
| 2 sets in a 40'HC ( dis-assembled ) | ||||
| 32 | Product Main Features | |||
|
1). Special cutter table, can cut the cornstalk into segments and return to the field. 2). 3 sets peeling device. 3). Special design in peeing device, half metal rolls and half rubber rolls for each set of peeling device, this design reduces seed damage rate and make corn cob complete. 4). Flexible harvesting ways, multiple cutting points make rows distance unlimited. 5). Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate. 6). 4 wheels drive, good mobility. 7). Adopt hydraumatic side dumping device, convenient for operating corn unloading. |
||||
HOT SALE:
FACTORY:
NEW ASSEMBLY WORKSHOP:
PRODUCT:
If you are interested, pls don't hesitate to contact us.
Any special requirements about the harvester, please note it when you send us email.
Wish you a nice day!
