4YZ-3X harvester machine for small combines corn
1. Manufacturer and exporter for crop combine harvesters which can harvest wheat, rice, corn, soybean, and rapeseed etc.
2. Offer competitive price.
3. Large production power, more than 6000sets machines annual output.
4. Quick delivery date, 7 working days after receiving the payment.
| No. | Item | Unit | Specification | |
| 1 | Type | 4YZ-3X | ||
| 2 | Structural style | self-propelled wheel type | ||
| 3 | Function | picking, peeling, cutting and shattering the straw, returning shattered straw to field | ||
| 4 | Engine | model | 4L88, diesel | |
| power | HP | 90 | ||
| speed | r/min | 2600 | ||
| 5 | Size ( L, W, H ) | mm | 5540*1840*3000 | |
| 6 | Net Weight | kg | 2910 | |
| 7 | Harvester rows | row | 3 | |
| 8 | Rows distance | mm | 550-650 | |
| 9 | Cutting width | mm | 1800 | |
| 10 | Max unloading height | mm | 1800 | |
| 11 | Minimum ground clearance | mm | 350 | |
| 12 | Work efficiency | hectare/hour | 0.22-0.52 | |
| 13 | Oil consumption | kg/hectare | ≤20 | |
| 14 | Drive speed | km/h | 2.88-20.1 | |
| 15 | Working speed when harvesting | km/h | 2.5-4.5 | |
| 16 | Peeling device | set | 3 | |
| 17 | Peeling device material | steel roll + rubber roll | ||
| 18 | Gear box | mechanical | ||
| 19 | Wheel distance | guide | mm | 1300 |
| drive | 1300 | |||
| 20 | Tyre size(Optional 4 drive) | guide | 6.50-16 | |
| drive | 9.5-24 | |||
| 21 | Min.radius of curve | left turn | mm | 5100 |
| right turn | 5500 | |||
| 22 | Total loss rate | ≤4 % | ||
| 23 | Seed damage rate | ≤1 % | ||
| 24 | Peeling rate | ≥85 % | ||
| 25 | Impurity rate | ≤1.5 % | ||
| 26 | Straw crushing rate | ≥85 % | ||
| 27 | Stubble height | mm | ≤100 | |
| 28 | Grain tank | m³ | 1.2 | |
| 29 | Grain unloading way | hydraumatic side dumping | ||

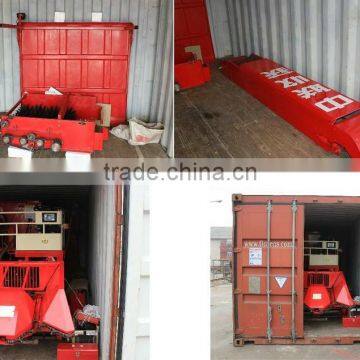

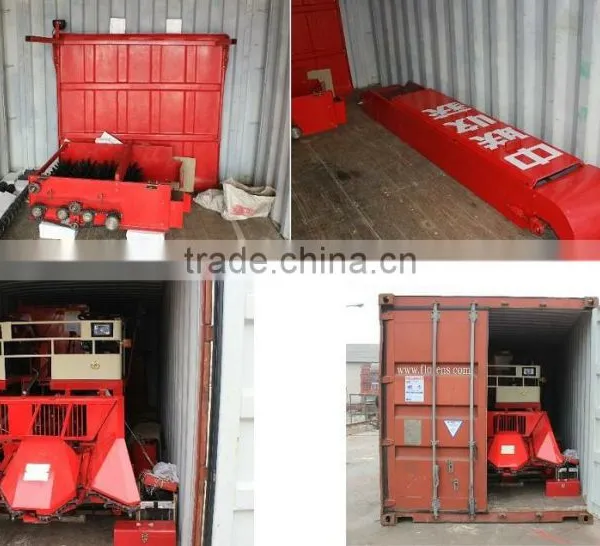

| 30 | Transportation | 1 set in a 20'GP ( dis-assembled ) | ||
| 2 sets in a 40'HC ( dis-assembled ) | ||||
| 31 | Product Main Features | |||
|
1). Special cutter table, can cut the cornstalk into segments and return to the field.
6). 4 wheels drive, good mobility.
7). Adopt hydraumatic side dumping device, convenient for operating corn unloading.
|
||||
HOT SALE:
FACTORY:
NEW ASSEMBLY WORKSHOP:
PRODUCT:
