2014 most popular mini corn combine harvester
| Product Main Technical Specification:) | ||||
| Model | Type No. | 4YZ-3X | ||
| Structural style | full feed self-propelled wheel type | |||
| Function | pick, peel, cut and shatter the straw, return shattered straw to field | |||
| Size ( L, W, H ) | 5550*2050*2900mm | |||
| Net weight | 3500 kg | |||
| Gear box | mechanical | |||
| Engine | model | 4L88, diesel | ||
| power | 88 HP | |||
| speed | 2600 r/min | |||
| Oil tank | 106 L | |||
| Oil consumption | ≤20 kg/hectare | |||
| Performance | Cutting width | 2050 mm | ||
| Harvest rows | 3 rows | |||
| Peeling device | 3 sets | |||
| Peeling device material | trough type, rubber roller + iron roller | |||
| Rows distance | 450-750 mm | |||
| Work efficiency | 0.4 - 0.6 hectare/hour | |||
| Drive speed | 2.88-20.1 km/h | |||
| Working speed when harvesting | 2.5-4.5 km/hour | |||
| Max unloading height | 2050 mm | |||
| Minimum ground clearance | 350 mm | |||
| harvest moisture required | ≤30%(corn grain), ≤60%(corn straw) | |||
| corn cob height from ground | ≥450mm | |||
| transverse and longitudinal slope required | ≤8° | |||
| Total loss rate | ≤4 % | |||
| Seed damage rate | ≤1 % | |||
| Peeling rate | ≥85 % | |||
| Straw crushing rate | ≥85 % | |||
| Impurity rate | ≤1.5 % | |||
| Stubble height | ≤100mm | |||

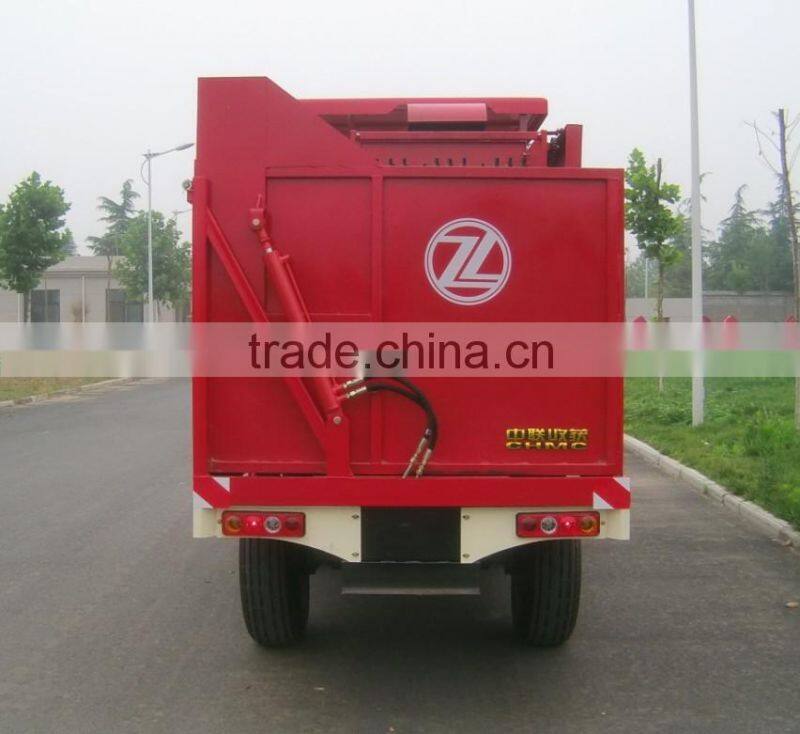

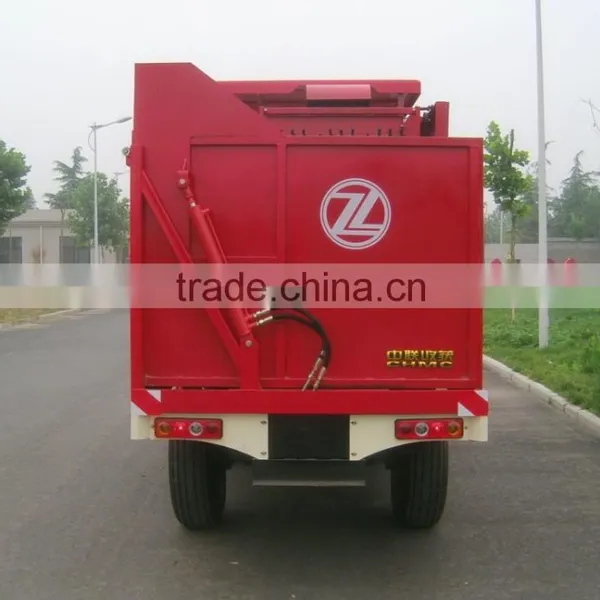

| Grain unloading way | hydraumatic side dumping | |||
| Grain Tank | 1.2 m³ | |||
| Wheel | Type of drive | 4 or 2 wheels drive | ||
| Wheel distance | guide | 1300 mm | ||
| drive | 1300 mm | |||
| Tyre size | guide | 10-15 size(2WD), 6.5-16 size(4WD) | ||
| drive | 9.5-24 size | |||
| Min.radius of curve | left turn | 5100 mm | ||
| right turn | 5550 mm | |||

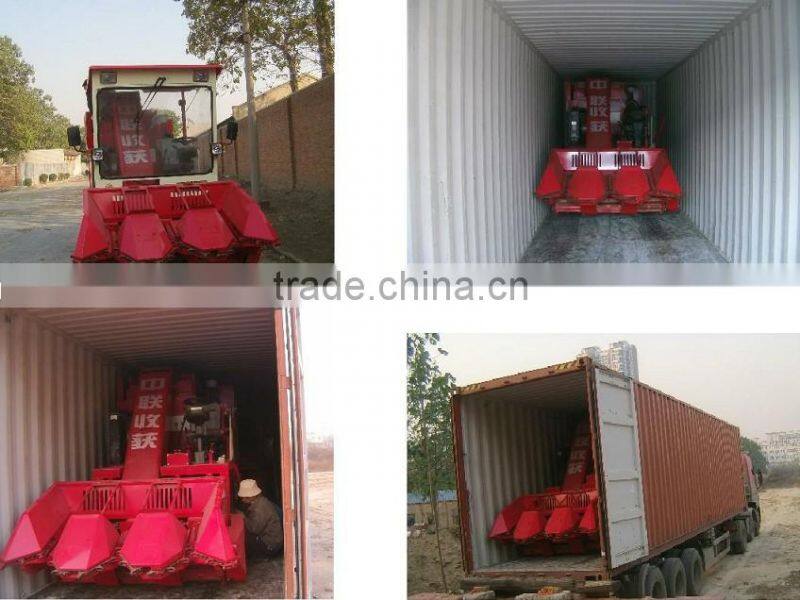

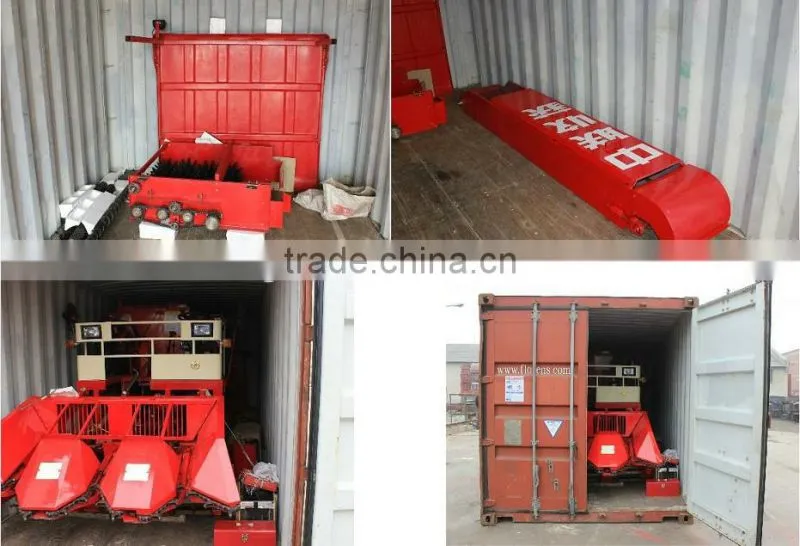

| Transportation and Package | / | 1 set in a 20'GP ( dis-assembled ) | ||
| 2 sets in a 40'HC ( dis-assembled ) | ||||
|
Product Features:) * Special cutter table, can cut the cornstalk into segments and return to the field. * 3 sets peeling device. * Special design in peeing device, adopt soft peeling way, half metal rolls and half rubber rolls for each set of peeling device, this design reduces seed damage rate and seed lose rate. * Flexible harvesting ways, suitable for different row distance, different planting structure. * Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate. * 4 wheels drive, good mobility. * Adopt hydraumatic side dumping device, convenient for operating corn unloading. | ||||

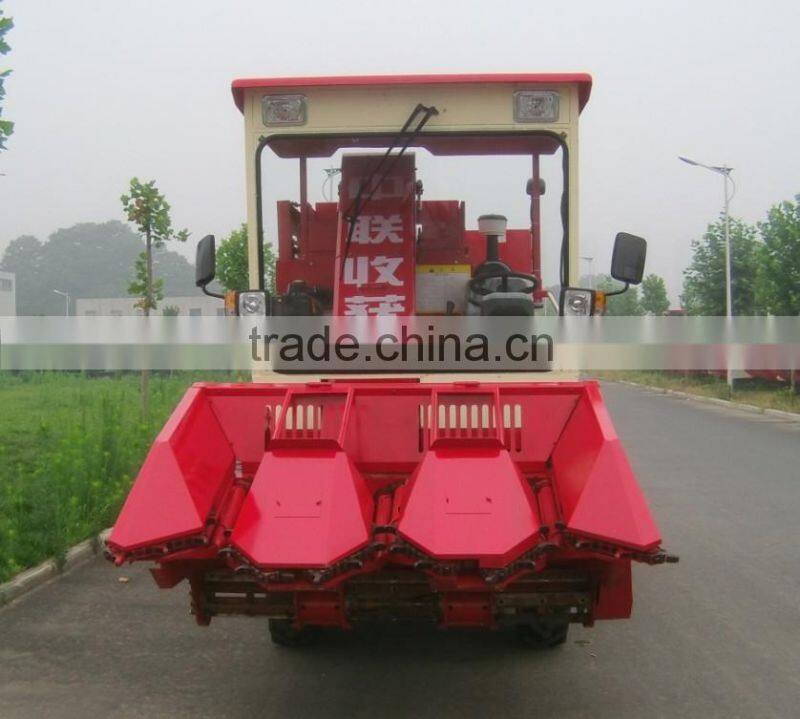

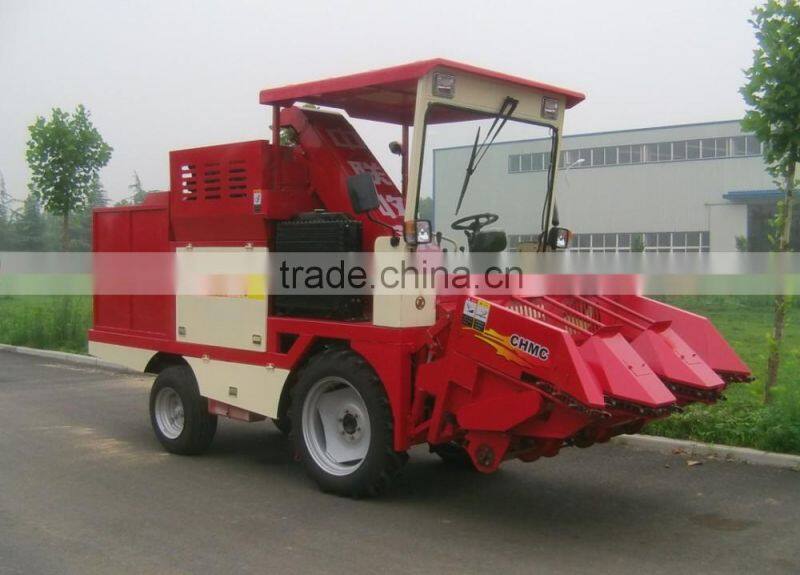

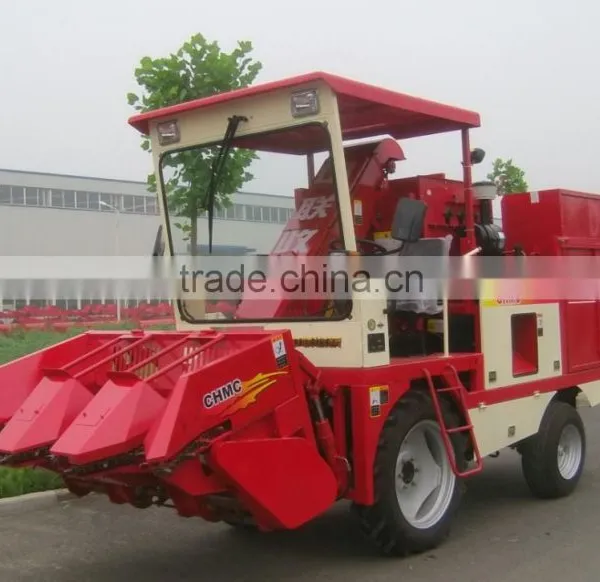

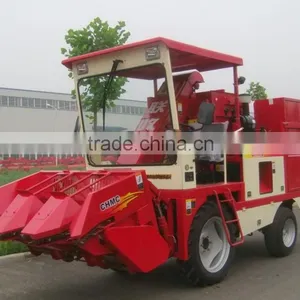

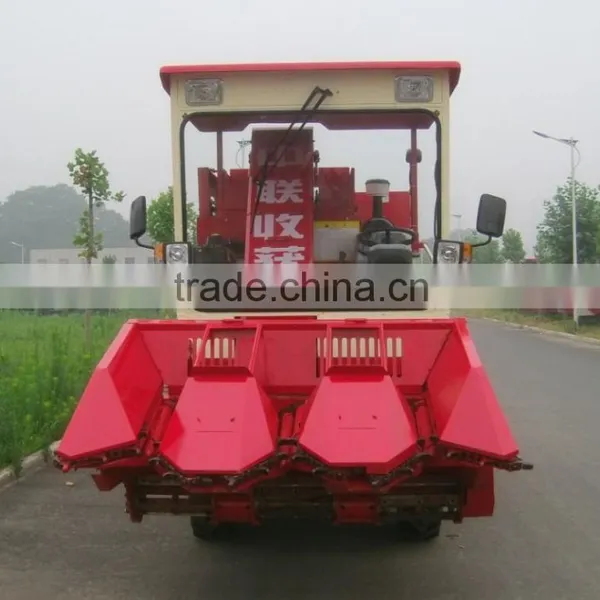

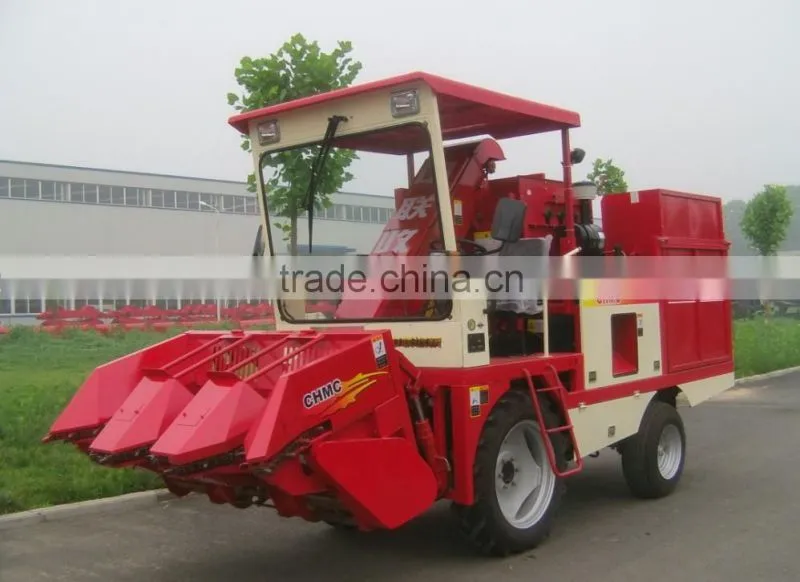

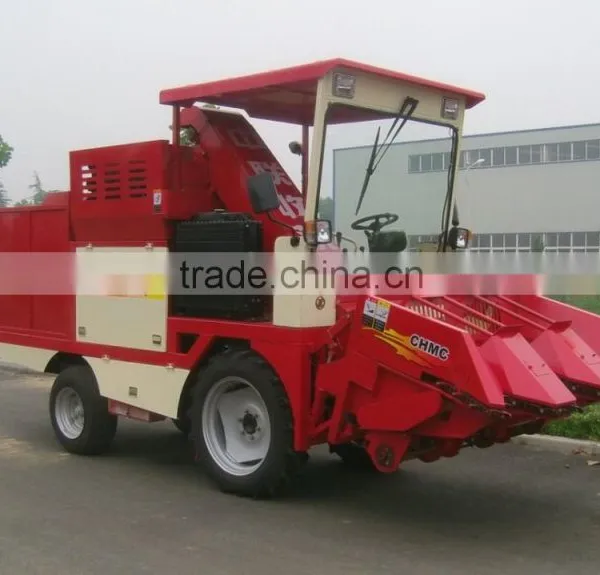

Product Pictures:)
Company&Factory Intro:)
Zhengzhou Zhonglian Harvest Machinery Co., Ltd, which is set up basing on original Zhengzhou Harvester Factory
( was built in August 1995), is a joint-stock enterprise specializing in spare parts manufacturing, complete machine
assembling and sales service of harvesters, and is the earliest harvester manufacturing company in China. At present,
our company has 360 employees, and 46 technical engineering personnel. The factory of company has a land area of
over 150,000 square meters with companies registered capital RMB 30 million. The company has 85 patents including
8 self-developed patents, and also has achieved ISO9001:2000 International Quality Management System Certification.
1. Manufacturer and exporter for crop combine harvesters which can harvest wheat, rice, corn, soybean, and rapeseed etc.
2. Offer competitive price.
3. Large production power, more than 6000sets machines annual output.
4. Quick delivery date, 7 working days after receiving the payment.
Our Factory:)
NEW ASSEMBLY WORKSHOP:)
If you are interested, pls don't hesitate to contact us.
Any special requirements about the harvester, please note it when
you send us email.
Wish you a nice day!
