Home > Products > corn harvester > Mini corn picker for corn cobs
Mini corn picker for corn cobs
- 100 Set / Sets per Month
- Qingdao Lianyungang
- T/T
Product Details
Condition: | New | Application: | Agriculture | Type: | Combine Harvester |
Drive Type: | Gear Drive | Usage: | Corn Harvester | Place of Origin: | Henan, China |
Brand Name: | CHMC | Model Number: | 4YZ-3B | Dimension(L*W*H): | 5860*2300*3320 mm |
Weight: | 4400kg | Certificate: | Other, ISO9001:2000 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Dis-assembled in a 40ft container
Product Description
Product Features:)
* Special cutter table, auger-type picking roller, forcelly and quickly to pull the corn stick into cutter table, not intertwine, not blocking.
* Adopt straw crushing and returning machine, can crush the corn straw completely and reduce the stubble height.
* Special design in peeing device, adopt soft peeling way, 3 sets peeling device, 12 pieces rollers, half metal rollers and half rubber rollers, this design makes peeling more clean, reduces seed damage rate and seed lose rate.
* Flexible harvesting ways, suitable for different row space and different planting structure,can harvest not in rows.
* Assembling shake sieve and seed recycling bins, can collect the fallen corn seed, reduce loss rate.
* Short machine body, short front-back wheel distance, small turning radius, easy to turn around in field.

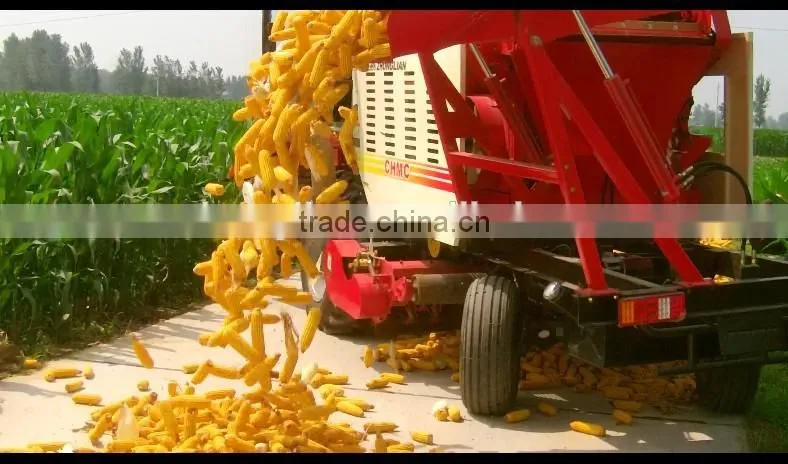

* Adopt hydraumatic side dumping device, convenient for operating corn unloading.
* Small size but high efficiency, suitable for both farm working and family working.
Product Specification:)
Model | Type No. | 4YZ-3B | ||
Structural style | full feed self-propelled wheel type | |||
Function | pick, peel, cut and shatter the straw, return shattered straw to field | |||
Size ( L, W, H ) | 5860*2300*3320 mm | |||
Weight | 4400 kg | |||
Gear box type | mechanical (3+1) x 2 | |||
Engine | model | 4108ZL, diesel | ||
power | 88 KW | |||
speed | 2400 r/min | |||
Oil tank | / | |||
Oil consumption | ≤20 kg/hectare | |||
Performance | Cutting width | 1950 mm | ||
Harvester rows | 3 rows | |||
Picking roller type | four prismatic | |||
Peeling roller number | 3 sets | |||
Peeling roller type | trough type, rubber roller + iron roller | |||
Rows distance | 500-700 mm | |||
Work efficiency | 0.4 - 0.6 hectare/hour | |||
Drive speed | 2.88-20.1 km/h | |||
Working speed when harvesting | 3.31-6.59 km/hour | |||
Max unloading height | 1850 mm | |||
Minimum ground clearance | 300 mm | |||
harvest moisture required | ≤30%(corn grain), ≤60%(corn straw) | |||
corn ear height | ≥450mm | |||
Transverse and longitudinal slope required | ≤8° | |||
Total loss rate | ≤4 % | |||
Seed damage rate | ≤1 % | |||
Peeling rate | ≥85 % | |||
Straw crushing rate | ≥85 % | |||
Impurity rate | ≤1.5 % | |||
Stubble height | ≤100mm | |||
Grain unloading way | hydraumatic side dumping | |||
Grain tank capacity | 1.5 m³ | |||
Straw crushing and returning machine | 1JHY-160 | |||
Wheel | Type of drive | 2 wheels drive | ||
Wheel distance | guide | 1435 mm | ||
drive | 1644 mm | |||
Tyre size | guide | 10-15 size | ||
drive | 11.2-24 | |||
Min.radius of curve | left turn | 6250 mm | ||
right turn | 6200 mm | |||
Transportation and Package | / | 1 sets in a 40'HC ( dis-assembled ) | ||

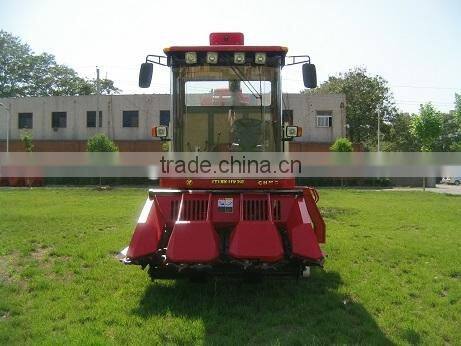

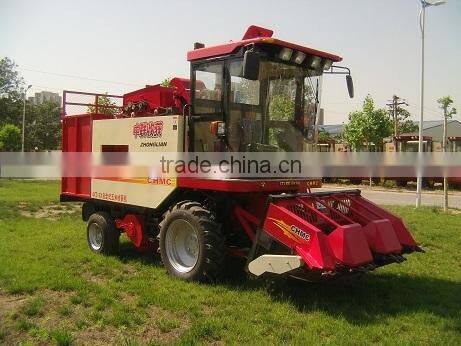

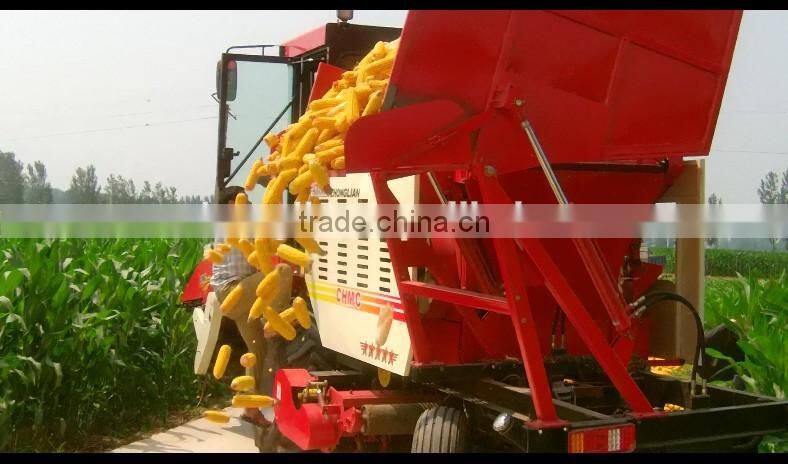

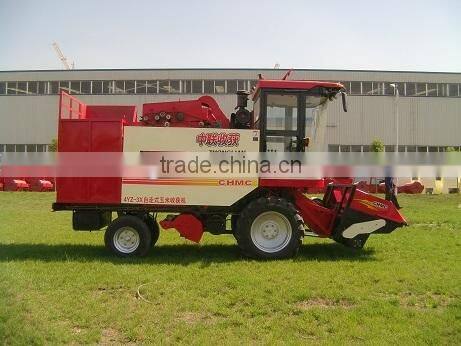

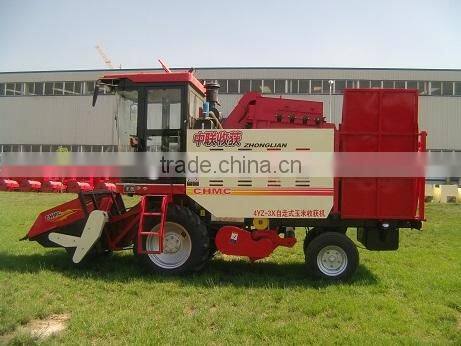

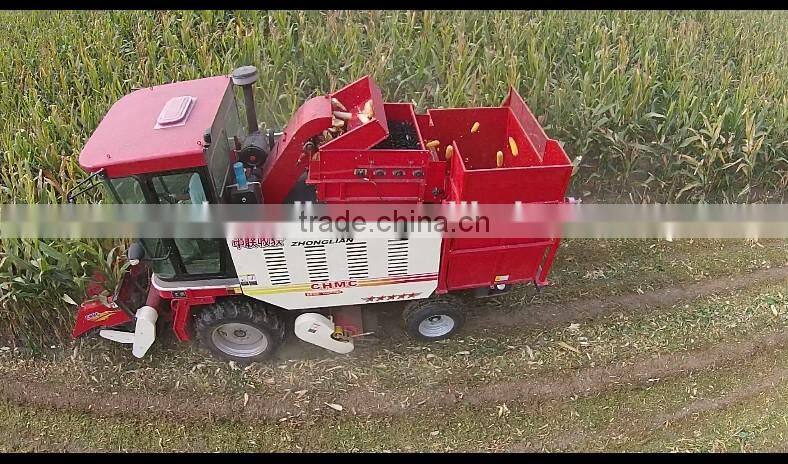

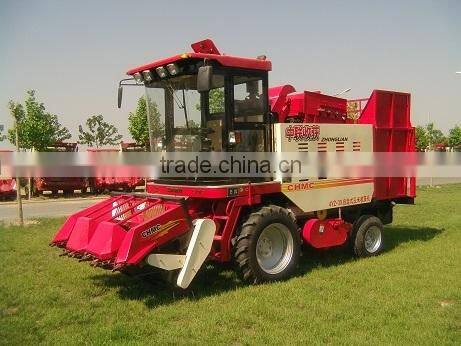

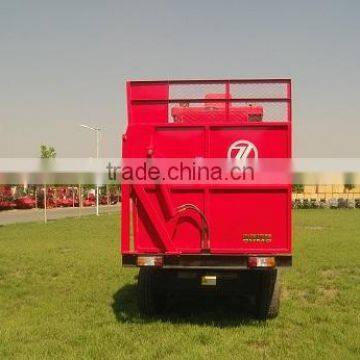

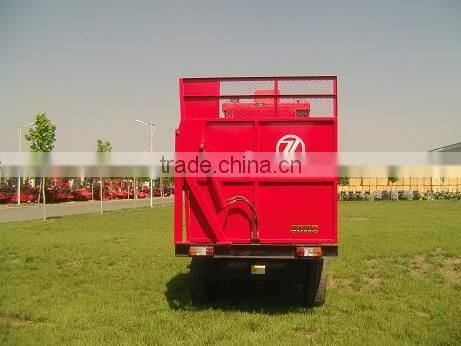

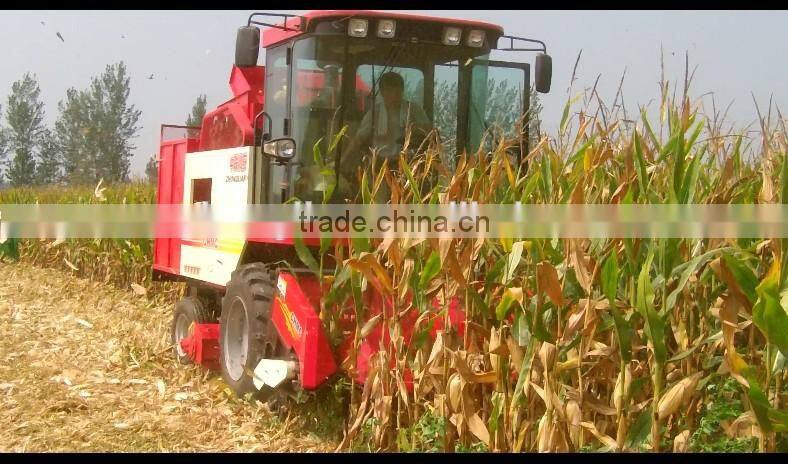

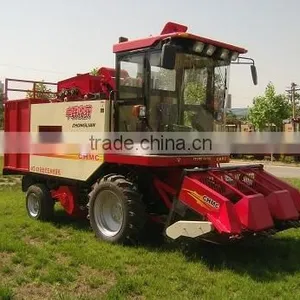

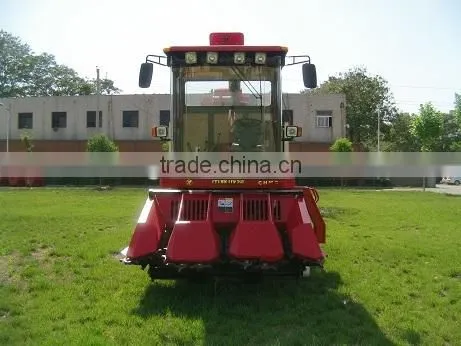

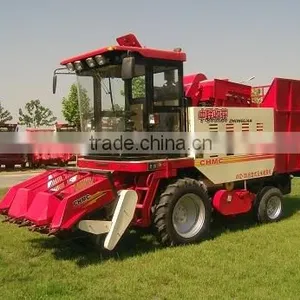

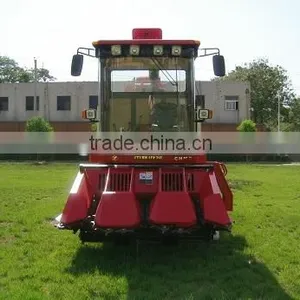

Product Pictures:)
Company Profile
Zhengzhou Zhonglian Harvester Machinery Co., Ltd. is a joint-stock enterprise specializing in spare parts manufacturing, complete machine assembling and sales service of harvesters, and is the earliest harvester manufacturing company in China. Our company has a land area of over 150,000 square meters with total assets of USD25 million, and annual sales of USD60 millions. Our company has strong R&D capability and abundant technical personnel with a complete series of combine harvesters. We have in total four series 17 models and more than 100 kinds of products. Our company has 360 employees, and 46 technical engineering personnel. Our company has perfect sales service networks, and has a sales team of more than 100 people. And our products sell well in 16 provinces of China and are exported to India, Mongolia, Kazakhstan, Guinea and other countries. Our products achieve a wide acknowledgement from customers and farmers. Our company has achieved ISO9001:2000 International Quality Management System Certification, and owns 30 invention patents. Our company was appraised as "2011 China Industrial Leading Company". We sincerely hope to cooperate with friends all over the world. Welcome to contact us and build a good business relationship in the near future.
