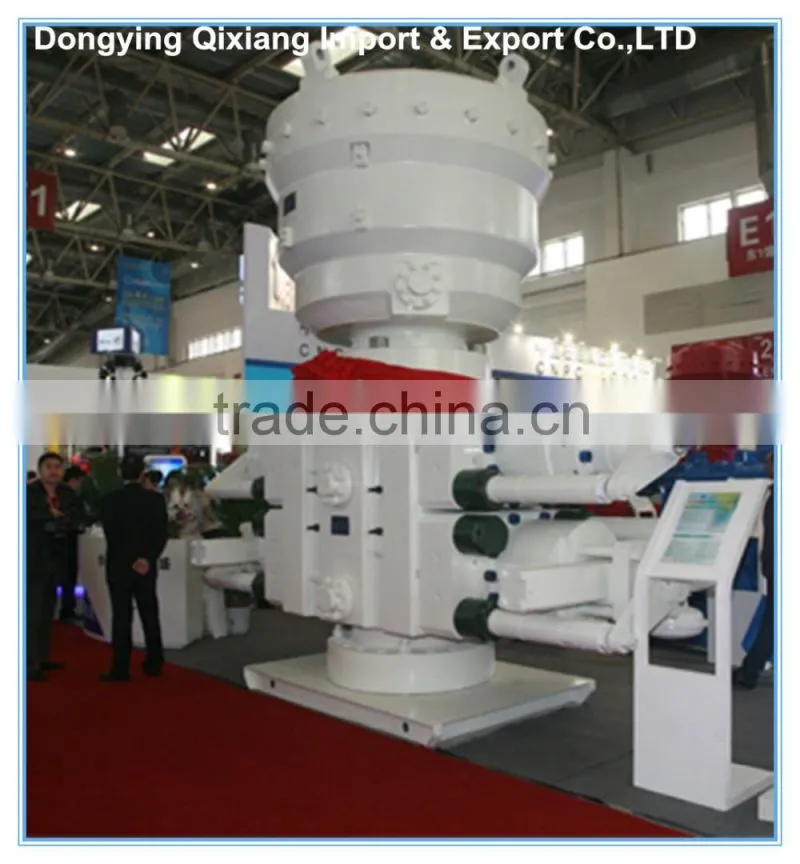

API 16A oilfield good quality Cameron Tappered Rubber Annular BOP(Blowout Preventer)
API 16A Blowout preventer is an important component assembly of well control device. It is characterized by flexible switch, easy operation, safety in use and simple maintenance, etc.
Structural features
For double-faced ram, both faces of the ram are symmetrical. For different sizes of drilling tools, only rubber seal semi-ring and ram briquetting need to be replaced, and other parts can be used interchangeably; single-faced ram is not reversible; shear ram can cut off wellhead drilling tools and fully seal wellhead; variable ram is used within certain limits to seal different sizes of drilling tools and annular tubes.
Seal features of ram:
Ram floating, ram’s automatic cleaning and well pressure seal, and ram’s automatic centering and self-feeding function. When sealing wellhead, ram preventer should seal four places at the same time to shut in a well effectively, that is, the seal between ram top and shell, the seal between ram front end and pipe, the seal between shell and side entrance and the seal between piston rod and side entrance.
Ram locking device:
Manual type locking device is used to close or lock ram by man. Please note that manual locking device is only used to close ram rather open it. To open ram after use, it’s necessary to first reset and unlock manual locking device and then open ram with hydraulic pressure.
Standard:API16A
Bore size:7 1/16—21 1/4”
Material :forged and casing
Pressure: 2000-10000psi

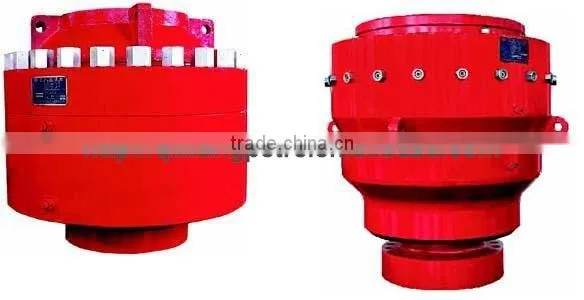

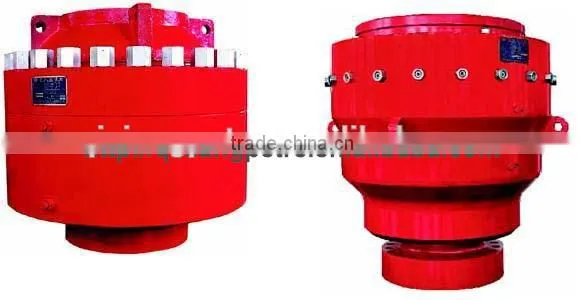

There are A type (cone gum core )annular BOP and D type(ball gum core) annular BOP
Technical parameter:
1) A type
Type |
Bore in(mm) |
Working pressure(Mpa/psi) |
Close volume oil(L) |
Open volume oil(L) |
Outer size(mm) |
Weight (KGS) |
FH18-70 |
7 1/16(179.4) |
70/10000 |
36 |
27 |
1200*1250 |
6293 |
FH28-70 |
11(279.4) |
66 |
66 |
1465*1653 |
12290 |
|
FH35-70 |
13 5/8(346.1) |
116 |
117 |
1554*1742 |
15190 |
|
FH43-35 |
16 3/4(425.4) |
35/5000 |
134 |
134 |
1680*1590 |
14100 |
FH54-14 |
21 1/4(539.8) |
14/2000 |
136.5 |
84.9 |
1380*1503 |
7660 |
2) D type
Type |
Bore in(mm) |
Working Pressure (MPa/psi) |
Hydraulic control pressure (MPa) |
Close volume oil(L) |
Open volume oil(L) |
Weight (kgs) |
Hydraulic control connection |
FH18-21 |
7 1/16(179.4) |
21/3000 |
<=0.5/1500 |
20 |
13 |
1200 |
NPT1” |
FH18-35 |
7 1/16(179.4) |
35/5000 |
|
1500 |
NPT1” |
||
FH23-21 |
9(228.6) |
21/3000 |
34 |
22.8 |
2398 |
VNPT1” |
|
FH23-35 |
9(228.6) |
35/5000 |
42 |
33 |
2986 |
NPT1” |
|
FH28-21 |
11(279.4) |
21/3000 |
50 |
39 |
2950 |
Rc1/2” |
|
FH28-35 |
11(279.4) |
35/5000 |
72 |
56 |
4675 |
NPT1” |
|
FH35-35 |
13 5/8(346.1) |
35/5000 |
94 |
69 |
6415 |
NPT1 1/2” |
|
FH43-35 |
16 3/4(425.4) |
35/5000 |
220 |
171 |
16000 |
NPT1” |
|
FH53-21 |
20 3/4(527) |
21/3000 |
173 |
110 |
6994 |
Rc1/2” |
|
FH54-35 |
21 1/4(539.8) |
35/5000 |
241 |
181 |
20230 |
NPT1” |
