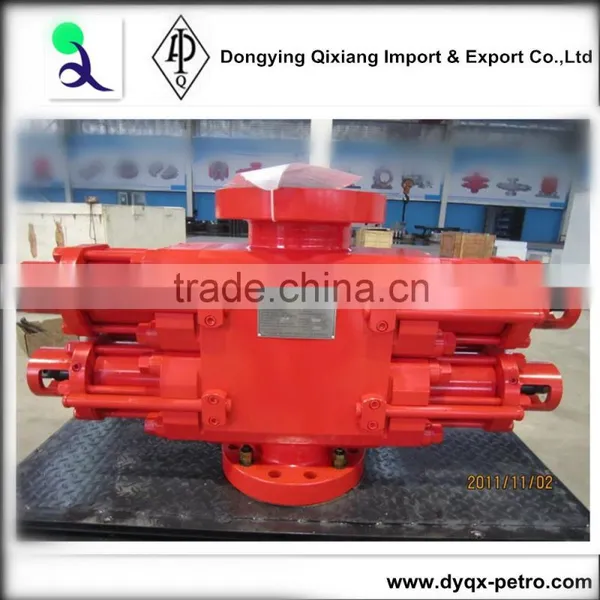

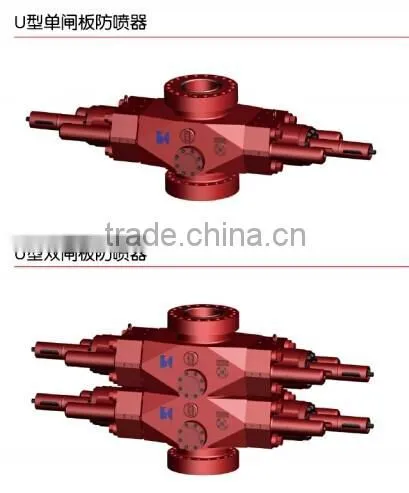

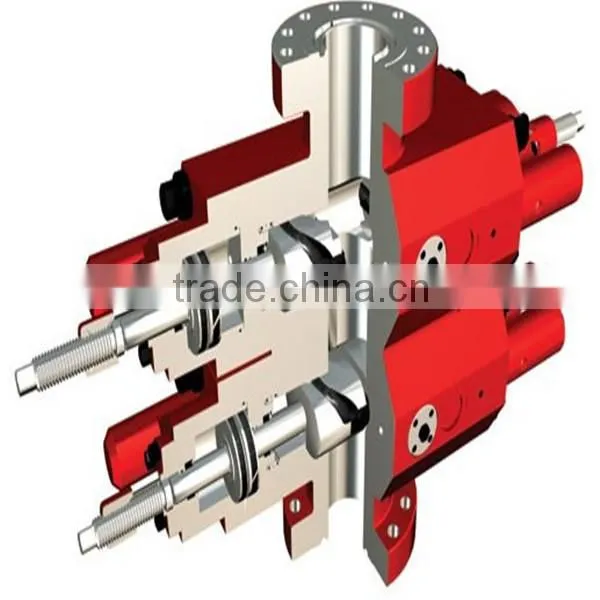

API 16A cameron/shaffer type Single Ram BOP
Features:
1. Body and side door are made of alloy steel;
2.Use seal rings assembly to improve sealing of side door;
3. Use floating type ram. Front ram rubber is separated from top ram rubber, making it more reliable in sealing and easier to change;
4. Use buried oil way inside body. Loading hinge is separated from hydraulic hinge;
5. Compact hinge structure makes it easy to assemble and disassemble;
6. Use arc-shaped body chamber with four round corners as transition section to reduce stress peak value whenever bearing the pressure;
7. Ram cavity can be fitted with ram assembly of same type BOP made abroad;
8.Flange grooves are stainless steel lined.
Ram BOP Technical Parameter:
Ram BOP | ||||||
Model |
Bore (in) |
Working Pressure (Psi) |
Hydraulic Control Pressure (Psi) |
Piston Size (in) |
Piston Stroke (in) |
Working Temperature (F) |
2FZ18-21 |
7-1/16" |
3000 |
1200-1500 |
5.9 |
4.1 |
-4F--186"F |
2PZ18-35 |
7-1/16" |
5000 |
5.9 |
4.1 |
||
2FZ23-21 |
9" |
3000 |
5.9 |
5.9 |
||
2FZ23-35 |
9" |
5000 |
8.6 |
5.9 |
||
2FZ23-70 |
9" |
10000 |
9.8 |
5.9 |
||
2FZ28-35 |
11" |
5000 |
9.8 |
6.3 |
||
2FZ28-70 |
11" |
10000 |
9.8 |
6.3 |
||
2FZ28-105 |
11" |
15000 |
13.7 |
7.1 |
||
2FZ35-14 |
13-5/8" |
2000 |
6.3 |
7.1 |
||
2F235-21 |
13-5/8" |
3000 |
8.7 |
7.1 |
||
2F235-35 |
13-5/8" |
5000 |
13.7 |
7.1 |
||
2FZ35-70 |
13-5/8" |
10000 |
13.7 |
8.2 |
||
2FZ35-105 |
13-5/8" |
15000 |
13.7 |
8.2 |
||
