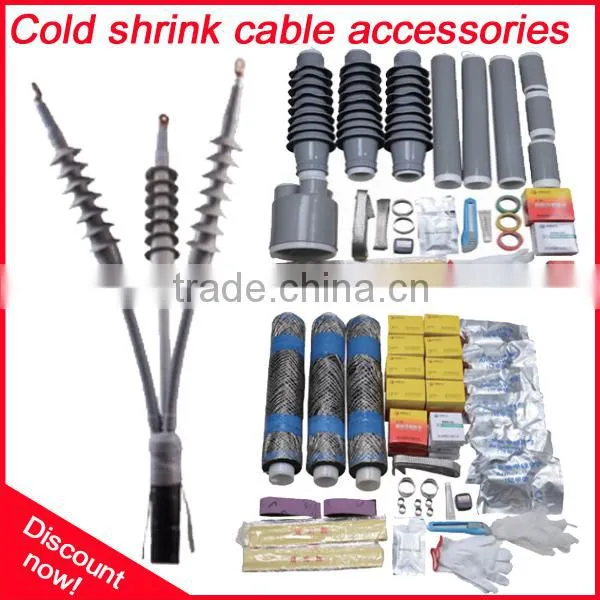

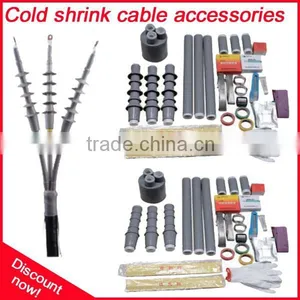

20kv Cold shrink cable accessories
1. JUNXELE cold shrink cable accessories are manufactured with advanced liquid silicon rubber, which has high resilience and strength, good electrical insulation.
2. The cold shrink cable termination and joints applications from 1 to 35kV (0.6/1kV, 8.7/15kV, 18/25kV, 26/35kV).
3. The simple installation of cold shrink cable accessories can help you save time and physical force. It improves your work efficiency, make the cable connect safely and reliably, assure your every connection correctly sealed and insulated for long protection. So our cold shrink MV termination and joints are widely applied in power plant, wind farm, substations, city subway etc.
| 20kV Cold shrink cable accessories | |||||||||||||||||||||
|
| Main performance | Parameter |
| Wet power frequency voltage withstand test (outdoor) | 54KV 5min |
| Dry power frequency voltage withstand test (indoor) | 54KV 5min |
| Impulse voltage withstand test | 125KV +10 times |
| DC voltage withstand test | 96KV 30min |
| Power frequency voltage withstand test | 48KV 4h |
| Partial discharge test | ≤10Pc(1.73U0) |

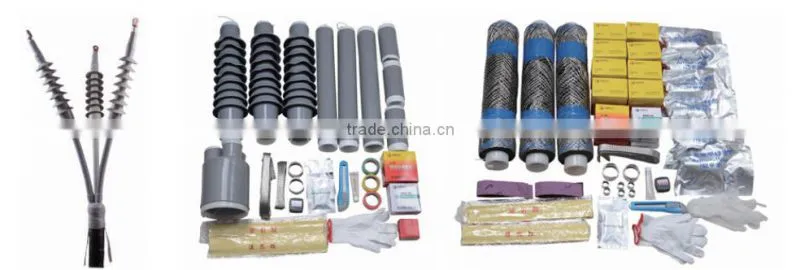

20kV Cold shrink cable accessories
| Product | Order model | Cable section area(mm2) | Product | Order model | Cable section area(mm2) |
| Single core indoor terminal | NLS-20/1.1 | 35-70 | Three cores indoor terminal | NLS-20/3.1 | 35-70 |
| NLS-20/1.2 | 95-150 | NLS-20/3.2 | 95-150 | ||
| NLS-20/1.3 | 185-400 | NLS-20/3.3 | 185-400 | ||
| NLS-35/1.4 | 500-630 | NLS-20/3.4 | 500-630 | ||
| Single core outdoor terminal | WLS-20/1.1 | 35-70 | Three cores outdoor terminal | WLS-20/3.1 | 35-70 |
| WLS-20/1.2 | 95-150 | WLS-20/3.2 | 95-150 | ||
| WLS-20/1.3 | 185-400 | WLS-20/3.3 | 185-400 | ||
| WLS-20/1.4 | 500-630 | WLS-20/3.4 | 500-630 | ||
| single core intermediate connector | ZLS-20/1.1 | 35-70 | three cores intermediate connector | ZLS-20/3.1 | 35-70 |
| ZLS-20/1.2 | 95-150 | ZLS-20/3.2 | 95-150 | ||
| ZLS-20/1.3 | 185-400 | ZLS-20/3.3 | 185-400 | ||
| ZLS-20/1.4 | 500-630 | ZLS-20/3.4 | 500-630 |
1.We are Alibaba Assessed Gold Supplier.
2.We are a factory manufacturing circuit breaker,contactor,transformer,best production capability ,best quality control, Best Service .
3.100% QC inspection Before Shippment. Cold shrink cable accessories
4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price. Cold shrink cable accessories
