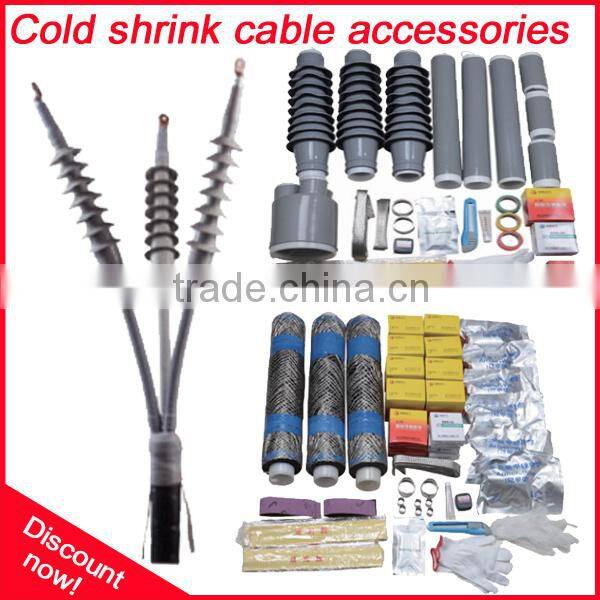

35kV Cold Shrink Cable Accessories

Name: 35kV Cold Shrink Cable Accessories
Brand: JUNXELE
Availability: InStock

FOB Price

US$ 1 - 100 / Set

1 Set(Min. Order)

Port Ningbo Shanghai for 35kv Cold shrink cable accessories
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JUNXELE
Model Number	NLS		Type	Other, Cold shrink cable accessories, 1kV 10kV 20kV 35kV

Product Description

35kv Cold shrink cable accessories

Product Description

1. JUNXELE cold shrink cable accessories are manufactured with advanced liquid silicon rubber, which has high resilience and strength, good electrical insulation.

2. The cold shrink cable termination and joints applications from 1 to 35kV (0.6/1kV, 8.7/15kV, 18/25kV, 26/35kV).

3. The simple installation of cold shrink cable accessories can help you save time and physical force. It improves your work efficiency, make the cable connect safely and reliably, assure your every connection correctly sealed and insulated for long protection. So our cold shrink MV termination and joints are widely applied in power plant, wind farm, substations, city subway etc.

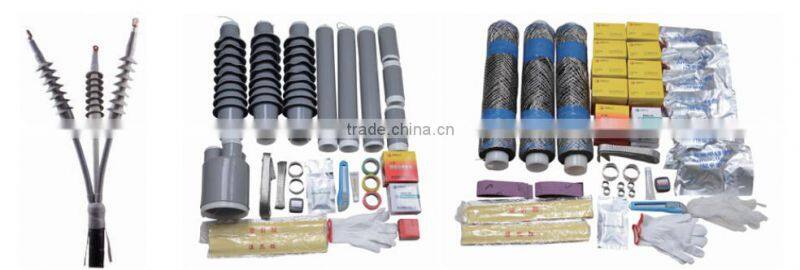

35kV Cold shrink cable accessories

Material	Main performance	Parameter
Main cold shrink material	Shore hardness(A)	45±3
Main cold shrink material	Tensile strength(Mpa)	≥14
Main cold shrink material	Permanent deformation rate	≤5%
Cold insulation pipe	Volume resistivity(Ω.cm)	≥1×10¹⁴
Cold insulation pipe	Disruptive strength(KV/mm)	≥23
Cold stress cone	Permittivity(ξ)	≈25

Main performance	Parameter
Wet power frequency voltage withstand test (outdoor)	105KV 1min
Dry power frequency voltage withstand test (indoor)	105KV 1min
Impulse voltage withstand test	250KV 1.2/50 μ s⁺10 times
DC voltage withstand test	156KV 15min
Power frequency voltage withstand test	78KV 4h
Partial discharge test	≤10Pc(1.7U₀)

35kV Cold shrink cable accessories

Product	Order model	Cable section area(mm²)	Product	Order model	Cable section area(mm²)
Single core indoor terminal	NLS-35/1.1	35-95	Three cores indoor terminal	NLS-35/3.1	35-95
	NLS-35/1.2	120-185		NLS-35/3.2	120-185
	NLS-35/1.3	240-400		NLS-35/3.3	240-400
	NLS-35/1.4	500-630		NLS-35/3.4	500-630
Single core outdoor terminal	WLS-35/1.1	35-95	Three cores outdoor terminal	WLS-35/3.1	35-95
	WLS-35/1.2	120-185		WLS-35/3.2	120-185
	WLS-35/1.3	240-400		WLS-35/3.3	240-400
	WLS-35/1.4	500-630		WLS-35/3.4	500-630
single core intermediate connector	ZLS-35/1.1	35-95	three cores intermediate connector	ZLS-35/3.1	35-95
	ZLS-35/1.2	120-185		ZLS-35/3.2	120-185
	ZLS-35/1.3	240-400		ZLS-35/3.3	240-400
	ZLS-35/1.4	500-630		ZLS-35/3.4	500-630

Packaging & Shipping

Shipping

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door; relay

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods. relay

Payment Terms

1. Payment: T/T, Western Union, B/L ; 30% deposits; 70% balance before delivery.

2.MOQ: 1pcs. Cold shrink cable accessories

Cold shrink cable accessories

Our Services

1.We are Alibaba Assessed Gold Supplier.

2.We are a factory manufacturing circuit breaker,contactor,transformer,best production capability ,best quality control, Best Service .

3.100% QC inspection Before Shippment. Cold shrink cable accessories

4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price. Cold shrink cable accessories
