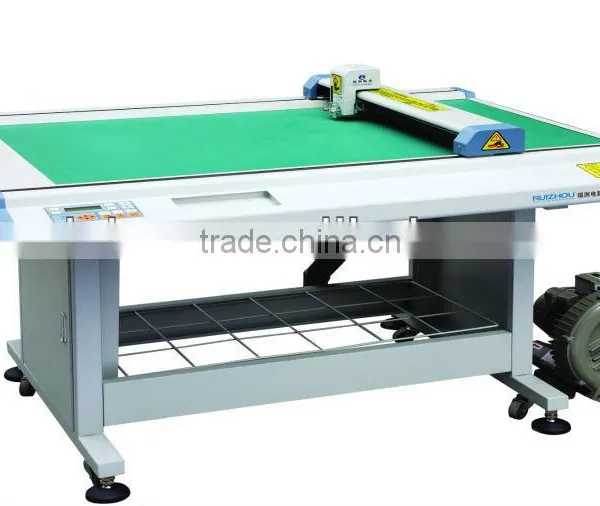

Help CenterCNC Gasket Cutting Plotter for Rubber and Plastic
Related Products
-
CNC Gasket Cutting Bed for Rubber and PlasticUS$ 1 - 10,000MOQ: 1 Set -
Phone Case Cutting Machine RZCUT-1007US$ 10,000 - 100,000MOQ: 1 Set
-
Phone Case Cutter RZCUT-1007US$ 10,000 - 100,000MOQ: 1 Set
-
Shoes Sample Pattern Cutting Machine RZCAM-0906AUS$ 10,000 - 100,000MOQ: 1 Set
-
Phone Case Printer RZCUT-1007CUS$ 10,000 - 100,000MOQ: 1 Set
Specifications
Available for through-cutting,kiss-cutting,dotting-cutting .High quality and performance make the longevity of your investment.The head-office of Ruizhou technology
1. 15 years of experience in CNC cutting technology;
2. The first and biggest CNC cutting machine manufacturer in China;
3. We only focus on the research and development of CNC knife-cutting technology and related CAD software over the past 15 years;
4. We use HAAS and DMG machine tool to process key components;
5. We imported Servo Motor from Panasonic and Straight-line guide rail from Germany;
6. We regard quality and service as the life of our corporation;
7. We will never be satisfied until you are satisfied;
8. Our engineering team never stops to improve our machine and upgrade our software;
| Color | Gray |
| Nominal voltage | 220V |
| Machine size | 1.42m*1.10m*0.94m |
| Shape | Square |
| Cutting thickness | Up to 2mm |
| Cutting area | 900*600mm |
| Cutting speed | Up to 1000mm/s |
| Condition | New |
| Power consumption | 1.1KW |
| Reproductive accuracy | Less than 0.1mm |
Available Model |
RZCAM-0906A |
RZCAM-1209A |
RZCAM-1509A |
RZCAM-1512A |
RZCAM-1812A |
Working Area |
910*620mm |
1200*920mm |
1500*920mm |
1500*1200mm |
1800*1200mm |
Cutting Materials |
Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) |
||||
Working Performance |
Cutting Speed: 900mm/s (Max.) |
||||
Cutting Thickness: 0.5-2mm | |||||
Mechanical Resolution: 0.07mm | |||||
Blade and Pen Type |

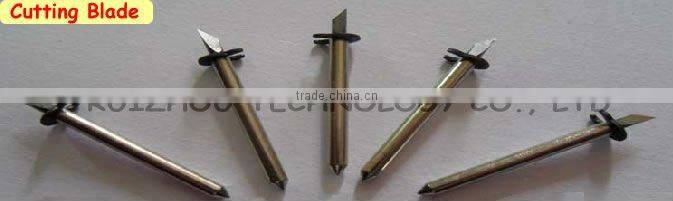

Blade: wolfram steel; |
||||
Pens: water-based fiber-tip, oil-based ballpoint, disposable ink pen. | |||||
Mat. hold-down method |
Vacuum Suction |
||||
Software Resolution |
0.025mm 0.01mm 0.1mm optional |
||||
Interface |
Standard parallel port or serial port |
||||
Command System |
HP-GL and GP-GL compatible mode |
||||
Power Consumption |
Machine: 200W AC 220±10%,50HZ |
||||
Vacuum Pump: 1100W AC 220±10%,50HZ | |||||
Feeding Mode |
Feeding by hand |
||||
- A dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.
- The complexor knife can do through-cutting,kiss-cutting and dot-cutting accoding to your specific requirments

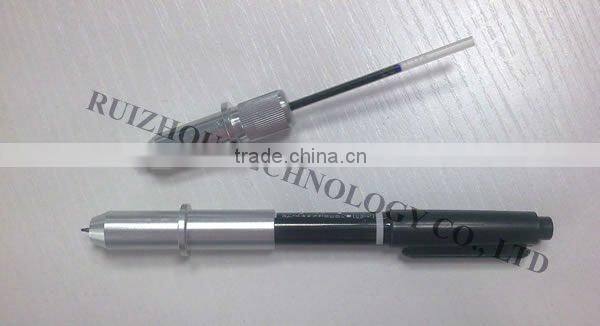

- The various types of pens availabe to do writing and marking,various types of pen ,choose them depending on your material
Easy to use
Ruizhou shoemaking machine are easy to install and simple to set-up and use. The table is programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of the table.
l Saves time and money whilst improving quality
Eliminates the cost and time you spend cutting paper patterns and making brass bound pattern boards.
Greatly reduces the time taken to hand cut sample and graded paper patterns.
Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.
Reduces your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
l Flexible
When used with Ruizhou RECAD software, Ruizhou tables are designed to work in the background, cutting and/or plotting pattern pieces whist you continue to develop other 2D patterns.

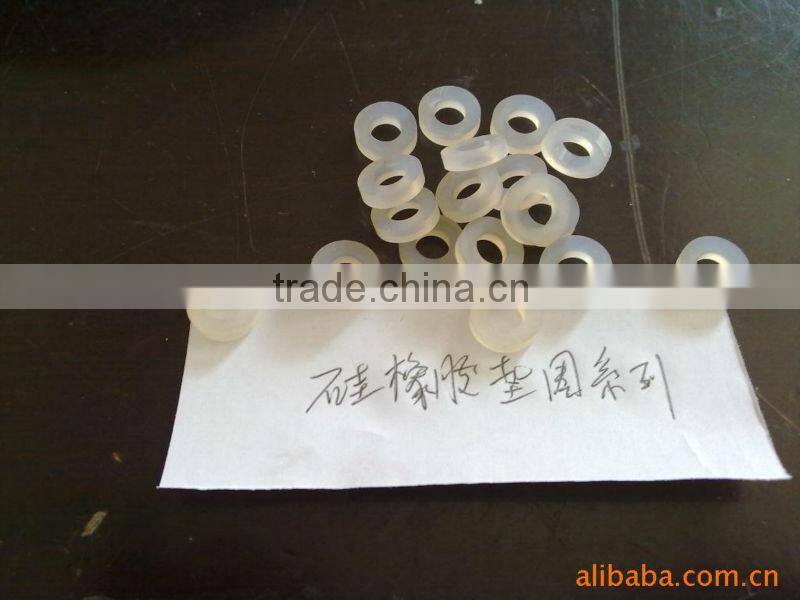

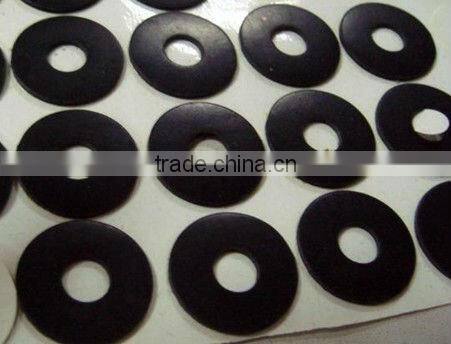

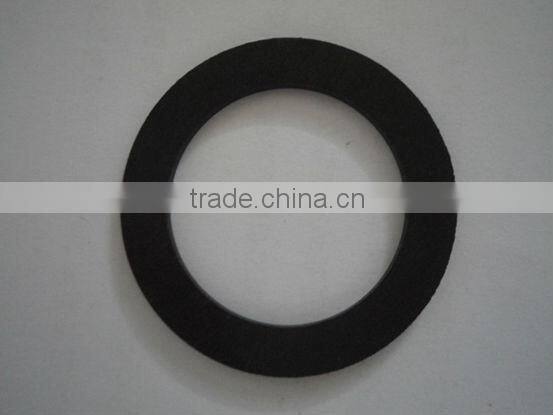

Sample display
