Help CenterShoes Sample Pattern Cutting Machine RZCAM-0906A
Related Products
-
Phone Case Printer RZCUT-1007CUS$ 10,000 - 100,000MOQ: 1 Set -
Shoe,boot Paper Pattern Cutting MachineNegotiableMOQ: 1 Set
-
Car Mat, Car Seat, Car Inside Material Cutting MachineUS$ 40,000 - 41,000MOQ: 1 Set
-
Wallet Glove Key Bag Phone Case Producing Machine by Knife CuttingUS$ 35,000 - 50,000MOQ: 1 Set
-
Suitcases & Bags Pattern Design & Engineering System, SoftwareNegotiableMOQ: 1 Set
Specifications
The machine with complexor blade can do through-cutting,kiss-cutting,dotted cutting.Good performance,high accuracy.
TECHNICAL PARAMETER
Available Model |
RZCAM-0906A |
RZCAM-1209A |
RZCAM-1509A |
RZCAM-1512A |
RZCAM-1812A |
Working Area |
910*620mm |
1200*920mm |
1500*920mm |
1500*1200mm |
1800*1200mm |
Cutting Materials |
Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) |
||||
Working Performance |
Cutting Speed: 900mm/s (Max.) |
||||
Cutting Thickness: 0.5-2mm | |||||
Mechanical Resolution: 0.07mm | |||||
Blade and Pen Type |
Blade: wolfram steel; |
||||
Pens: water-based fiber-tip, oil-based ballpoint, disposable ink pen. | |||||
Mat. hold-down method |
Vacuum Suction |
||||
Software Resolution |
0.025mm 0.01mm 0.1mm optional |
||||
Interface |
Standard parallel port or serial port |
||||
Command System |
HP-GL and GP-GL compatible mode |
||||
Power Consumption |
Machine: 200W AC 220±10%,50HZ |
||||
Vacuum Pump: 1100W AC 220±10%,50HZ | |||||
Feeding Mode |
Feeding by hand |
||||

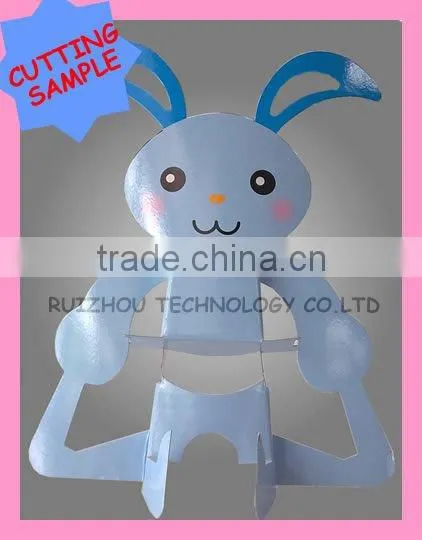

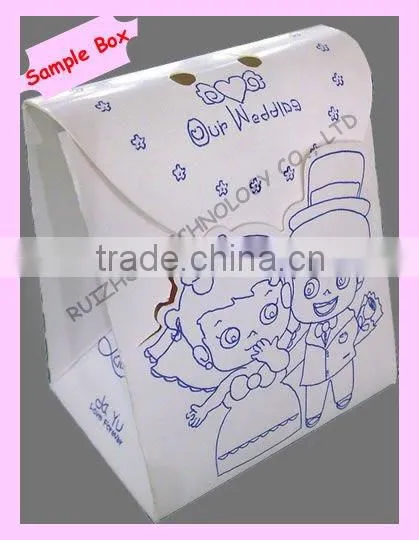

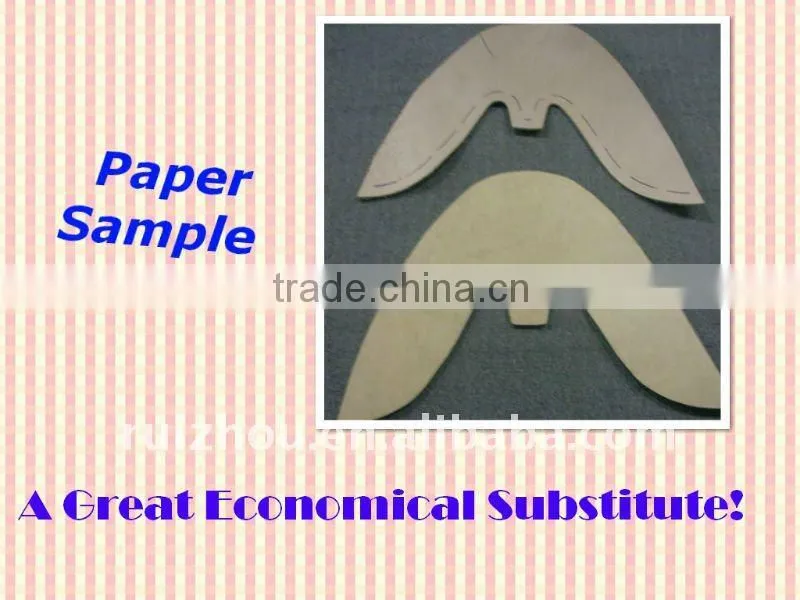

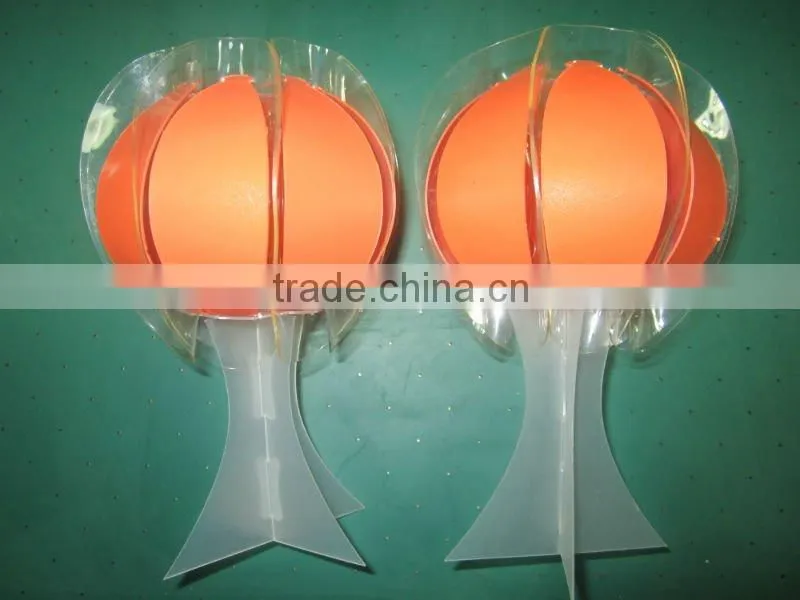

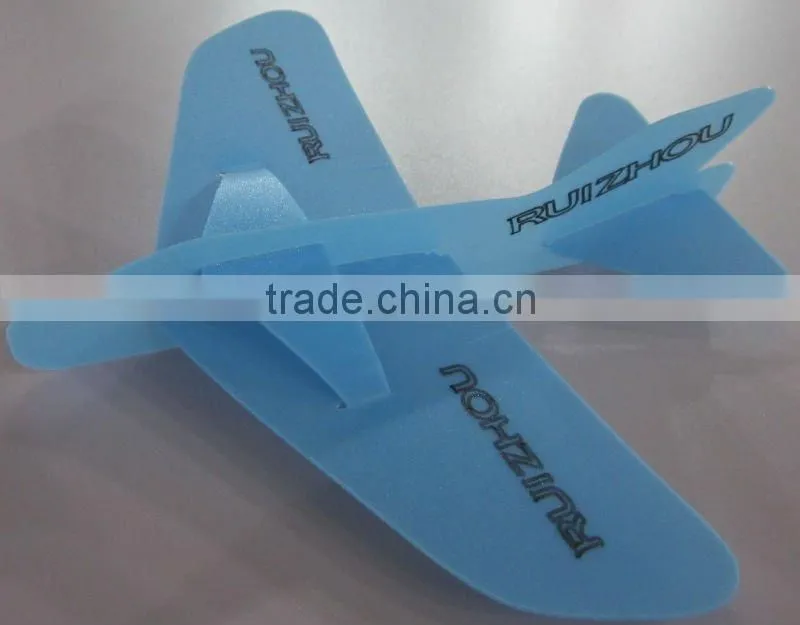

SAMPLE DISPLAY
|
|
|
APPLICALE INDUSTRIES
|
|
|
|
Scan the part into the computer,grading the part to get all sizes of part as your requirements,then export them to cut with our machine.
WHAT ARE THE FEATURES?
- A dual function tool head incorporating a trailing knife and pen, that is especially suited for cutting pattern paper and up to 2mm cardboard.
- can do through-cutting,kiss-cutting and dot-cutting accoding to your specific requirments
- can do writing and marking,various types of pen ,choose them depending on your material
