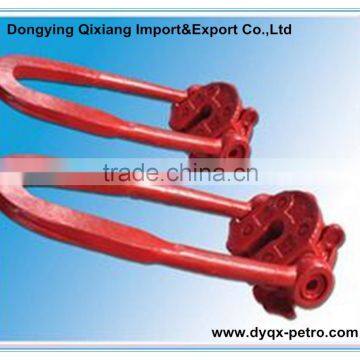

Help CenterAPI 8C Elevator Link and Lifting Ring for Oil Well Drilling Used at Wellhead
Related Products
-
API 8C Double Arm Elevator Link and Lifting Ring for Oil Well Drilling Used at WellheadUS$ 1000.00 - 1000.00MOQ: 1 Pair -
High Quality API Spec 7KType Q Pneumatic Spinning Wrenches for OilfieldUS$ 100.00 - 100.00MOQ: 1 Set
-
API 7K TQ340 Casing/ Hydraulic Power Tong Sucker Rod Power Tubing Tong With Torque GaugeUS$ 14000.00 - 14000.00MOQ: 1 Set
-
API High Quality 13 3/8 -36 Extended Manual Casing Tongs for Handling ToolsUS$ 100 - 500MOQ: 1 Piece
-
API 7K WA-T Safety Clamps Fot OilfieldUS$ 1 - 200MOQ: 1 Piece
API STANDARD ELEVATOR LINKS
Elevator Links are designed to hang elevators from Top Drive System or Hooks. Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated and MPI tested. Additional material is added in critical wear areas for extended life. The design safety factor and design verification of the elevator links conform to requirements of API Spec 8A or API Spec 8C, any elevator links are proof load tested to 1.5 times the working load.
Each elevator link of one pair is marked with Serial Number for traceability.
Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads
Partial specifications data for elevator links are provided as follows, any order of elevator links for field service are available
Specifications |
DH 150 |
DH 200 |
DH 250 |
DH 350 |
DH 500 |
Rating loads |
150ton |
200 ton |
250 ton |
350 ton |
500 ton |
Length (cm) |
180 |
270 |
270 |
330 |
360 |
specifications |
SH 50 |
SH 65 |
SH 75 |
Rating loads |
50t |
65t |
75t |
Length (cm) |
110 |
150 |
180 |
