API 8C double arm elevator link and lifting ring for oil well drilling used at wellhead
- 10000 Pair / Pairs per Month
- China any port
- T/T Credit Card
- High quality API Spec 7KType Q Pneumatic Spinning Wrenches for oilfield
- API 7K TQ340 Casing/ hydraulic Power Tong sucker rod power tubing tong with torque gauge
- API high quality 13 3/8 -36 Extended Manual casing tongs for Handling tools
- API 7K WA-T safety Clamps fot oilfield
- API 8A/8C Oilfield CDZ drilling pipe elevators
- API 8A/8C Oilfield CD side door type elevators with square shoulder for tubing,casing, dripp pipe and drill collar
Product Details
Place of Origin: | Shandong, China | Brand Name: | DYQX | Model Number: | DYQX links |
Type: | Other, lifting | Material: | Carbon Steel | Size: | Requirements |

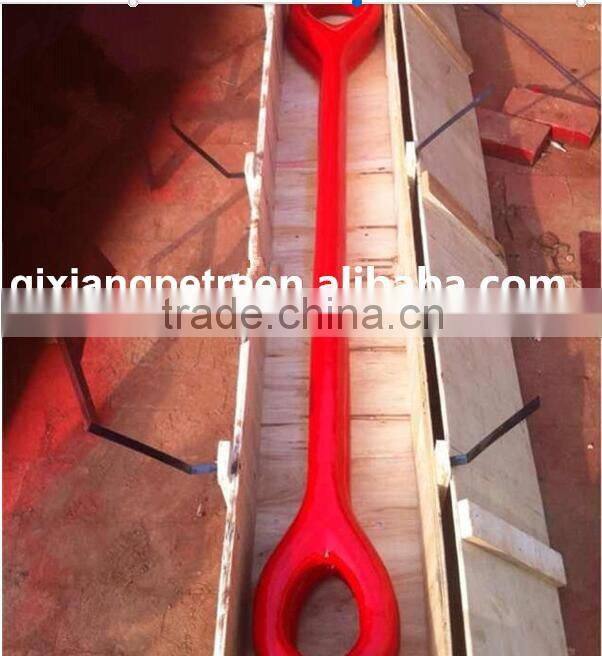

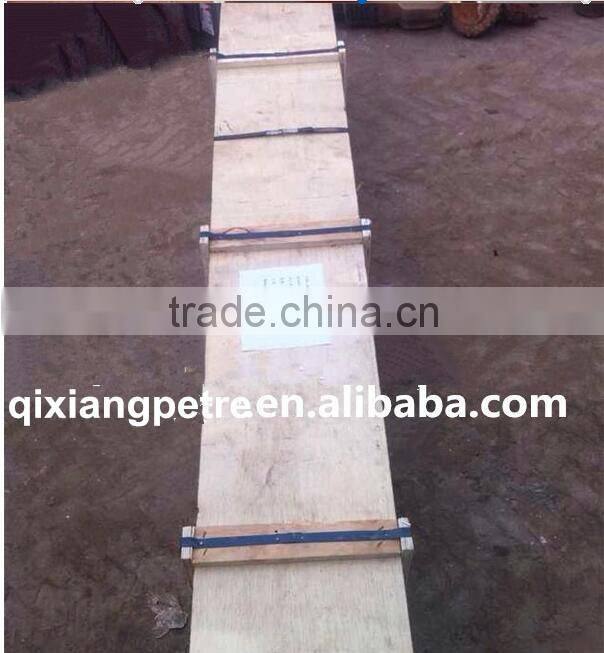

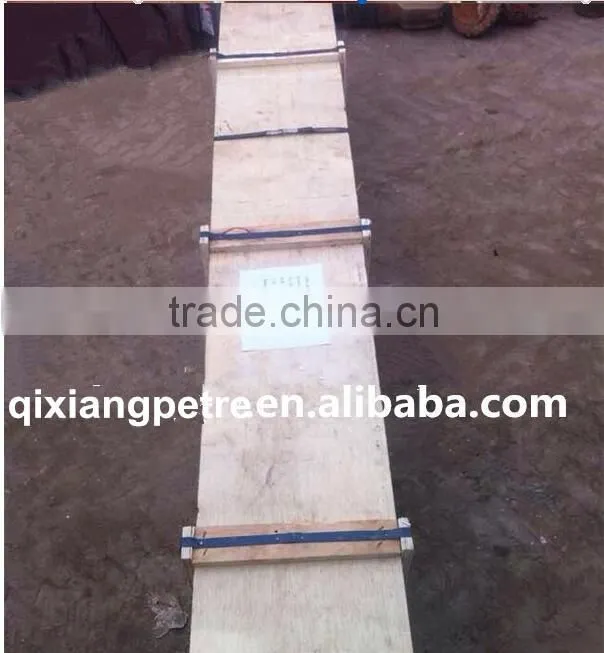

Packaging Details
Wooden box
Product Description

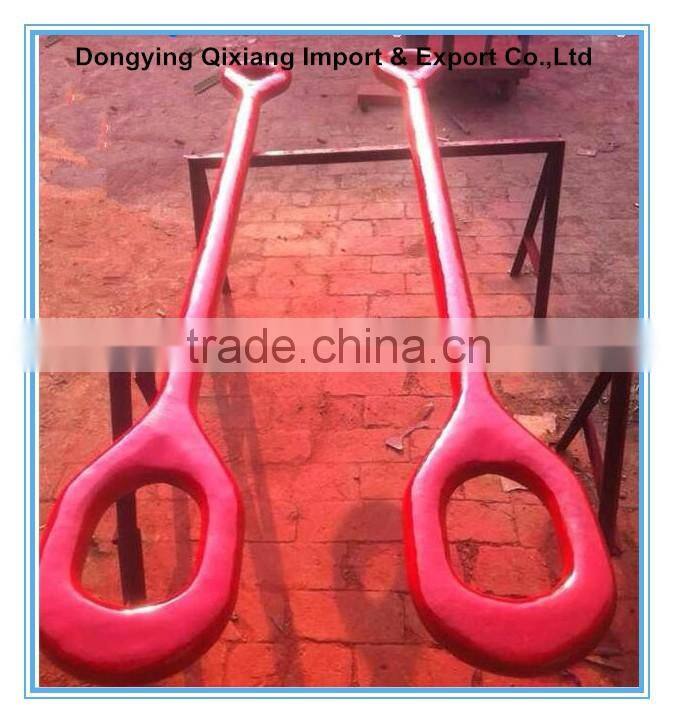

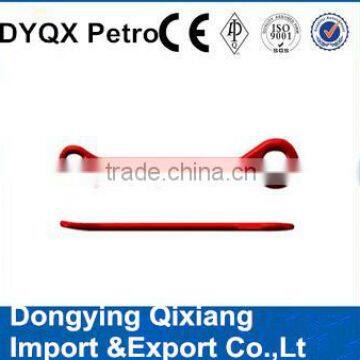

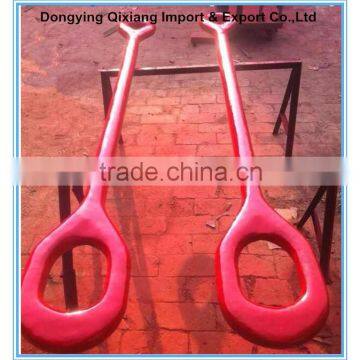

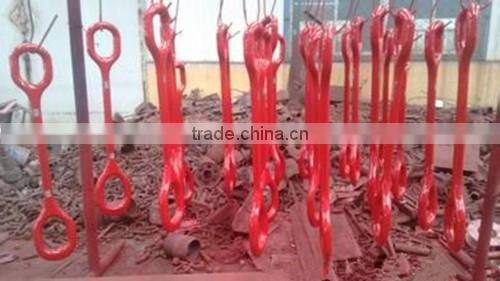

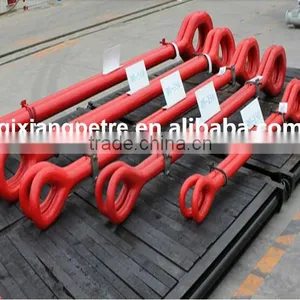

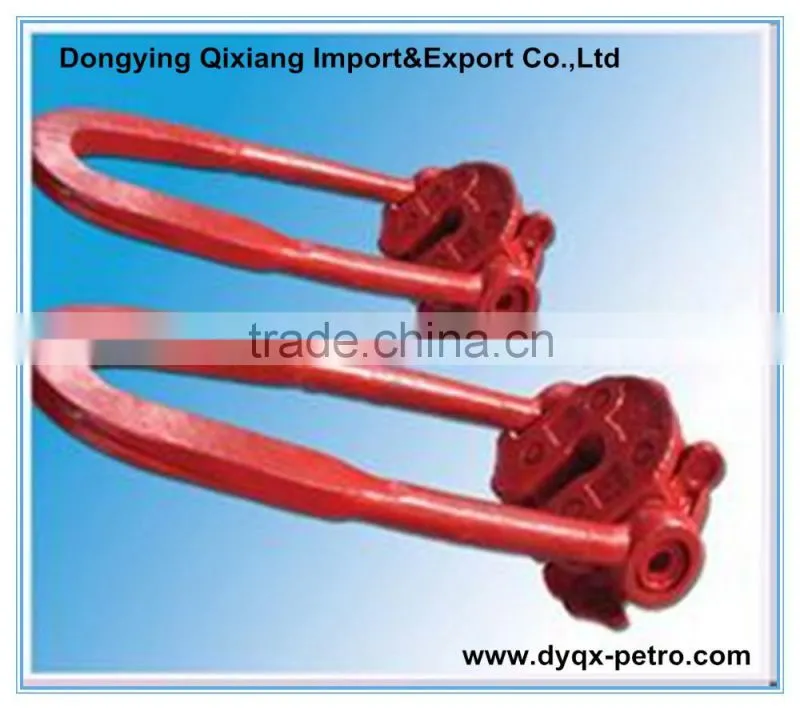

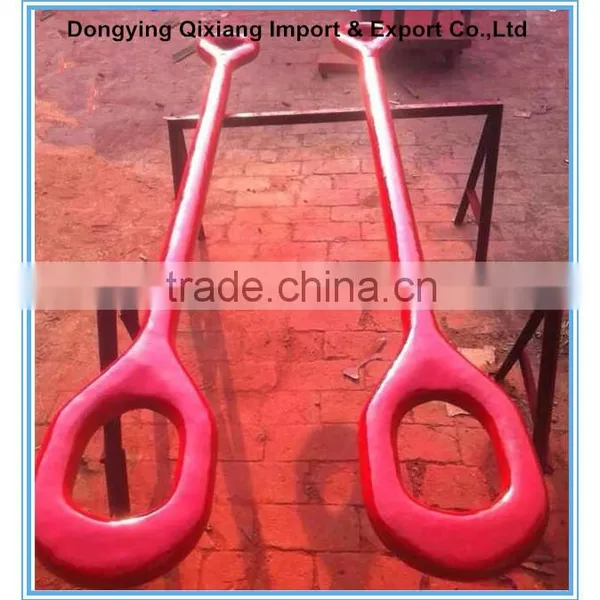

API 8C double arm elevator link
Elevator Links are designed to hang elevators from Top Drive System or Hooks. Each elevator link of one pair is forged from one single billet of high strength alloy steel, heat treated and MPI tested. Additional material is added in critical wear areas for extended life. The design safety factor and design verification of the elevator links conform to requirements of API Spec 8A or API Spec 8C, any elevator links are proof load tested to 1.5 times the working load.
Each elevator link of one pair is marked with Serial Number for traceability.
Elevator links are available in 150t,200t, 250t, 350t and 500t rating loads
Partial specifications data for elevator links are provided as follows, any order of elevator links for field service are available
Specifications | DH 150 | DH 200 | DH 250 | DH 350 | DH 500 |
Rating loads | 150ton | 200 ton | 250 ton | 350 ton | 500 ton |
Length (cm) | 180 | 270 | 270 | 330 | 360 |
specifications | SH 50 | SH 65 | SH 75 |
Rating loads | 50t | 65t | 75t |
Length (cm) | 110 | 150 | 180 |
Related Products
Dongying Qixiang Import & Export Co.,LTD(DYQX Petro company) follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Our Service Objective: People-O riented, Quality firstly and Best service.
Welcome to Visit DYQX petro.
Dongying Qixiang Import&Export Co.,Ltd
Address:North 2nd Road,Number 352,Dongying Zone, Dongying City, Shandong province, China.
Skype:eve.liu06211988
Mobile:0086-18554639639
whatsnap:0086-13290276176
Web: & http://qixiangpetre.en.china.cn
Company Profile
Dongying Qixiang Import &Export Co.,Ltd(hereinafter as DYQX Petro company) was founded in January, 2002, in the Yellow River delta (Shengli Oil Field, the second large oil field in China)--- Dongying City, Shandong Province. Its business covers drilling rig, workover rig, solids control equipment, oil production equipment,OCTG ,wellhead & downhole tools and spare parts drilling rig supporting and drilling strings and other equipments related with petroleum. Strictly abide by ISO9001 quality system certification and API standard.
DYQX Petro company follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
The target of DYQX Petro company Enterprise: To establish an international first-class enterprise, and become a professional petroleum equipment supplier and oilfield engineering services company.; "providing the most qualified products, most competitive prices and most professional service for every customer " as its mission.
DYQX Petro company mainly engages in offering oil drilling and production equipment and providing oilfield technical service.Our target is to supply our products and spread company culture to all over the world. We will build a new stage, and we will welcome all the friends from all over the world, to cooperate sincerely and create our brilliant future!
