Specifications
Dieless Plastic Film Cutting Machinescut & draw
Cut screen protective film,keyboard film,paper cut,sticker,metallic film

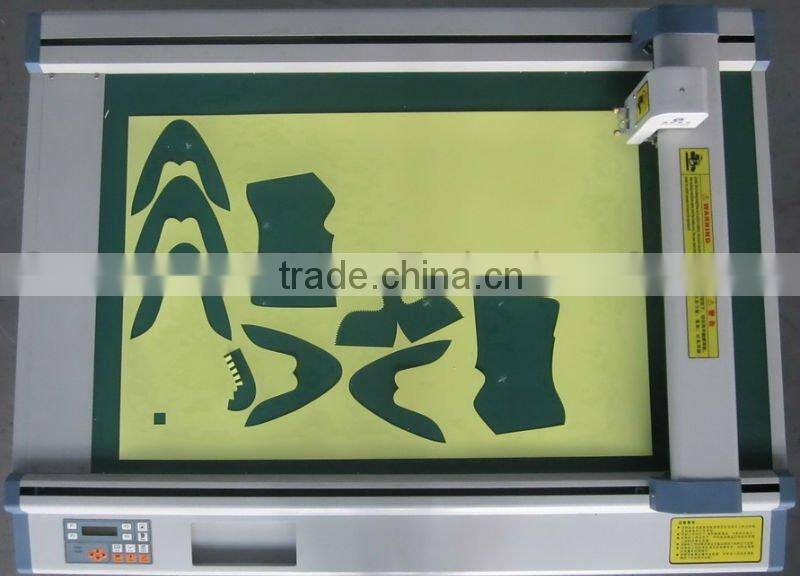

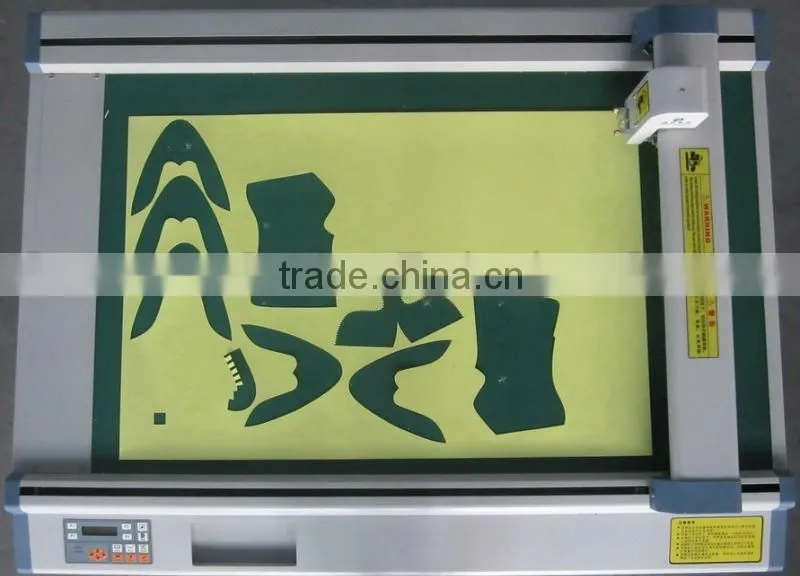

Ruizhou Dieless Plastic Film Cutting Machines
Ruizhou Dieless Plastic Film Cutting Machines are specially developed cutting solution for electronics, footwear, bags & luggages and garment industries. Based on vacuum-suction system, Ruizhou Dieless Plastic Film Cutting Machines are able to create accurate footwear and garment patterns on standard pattern paper, cardboard, or PVC sheet and cut screen protective film, keyboard film, color appliqué, sticker, metallic film.
.
WHAT ARE THE BENEFITS?
1. Easy to use
* Ruizhou Dieless Plastic Film Cutting Machines are easy to install and simple to set-up and use. Ruizhou Dieless Plastic Film Cutting Machines are programmed for use with Ruizhou RECAD software, which apart from the manual adjustment for the depth of the knife, will reduce the need for hands-on setup of Ruizhou Dieless Plastic Film Cutting Machines.
2. Saves time and money whilst improving quality
* For making patterns, they eliminate the cost and time you spend cutting paper patterns and making brass bound pattern boards.
* They also greatly reduce the time taken to hand cut sample and graded paper patterns.
* They reduce your lead times for samples, short production runs and overall pattern development time for both sampling and production, helping you to provide that 'quick response' your customer demands.
* Consistent accuracy throughout, utilizing the Ruizhou RECAD software, any modifications to the pattern can be re-cut quickly and efficiently.
3. Flexible
* When used with Ruizhou RECAD software, Ruizhou Dieless Plastic Film Cutting Machines are set to work in the background cutting and/or plotting pieces whist you continue to develop other designs.
WHAT ARE THE FEATURES?
1. Tool Head
* Application of self-developed built-in digital control system, imported American CPU and precise electronic components, stability and operability reaching the leading level both at home and aboard.
* Joint use of imported linear tracks and synchronous belt in the machine making the cutting precision up to zero error of shuttle original position.
* Particular form-feed cutting function in domestic cutter industry.
* Compatible to many CAD software, rapid cut out of precise parts used in CSRC, such as screen protective film, keyboard film, color appliqué, adhesive sticker, metallic film etc.
2. Compatibility
* Connectible to common CAD software, widely used for design and manufacture of electronics, footwear, apparel, suitcases, bags, lamps and automobile leatherwares.
TECHNOLOGICAL SPECIFICATION
Available Model |
RZCAM-0906A |
RZCAM-1209A |
RZCAM-1509A |
RZCAM-1512A |
RZCAM-1812A |
Working Area |
910*620mm |
1200*920mm |
1500*920mm |
1500*1200mm |
1800*1200mm |
Cutting Materials |
Paper, Cardboard, Plastic board, Rubber board, Fiber sheet (up to 2mm) |
||||
Working Performance |
Cutting Speed: 800-1300mm/s |
||||
Cutting Thickness: 2mm | |||||
Mechanical Resolution: 0.07mm | |||||

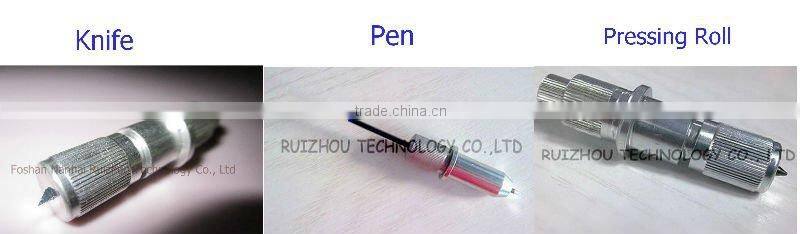

Blade and Pen Type |
Blade: wolfram steel; |
||||
Pens: water-based fibertip, oil-based ballpoint, disposable ink pen. | |||||
Mat. hold-down method |
Vacuum Suction |
||||
Software Resolution |
0.025mm 0.01mm 0.1mm optional |
||||
Interface |
Standard parallel port or serial port |
||||
Command System |
HP-GL and GP-GL compatible mode |
||||
Power Consumption |
Machine: 200W AC 220±10%,50HZ |
||||
Vacuum Pump: 1100W AC 220±10%,50HZ | |||||
Feeding Mode |
manual feeding |
||||
