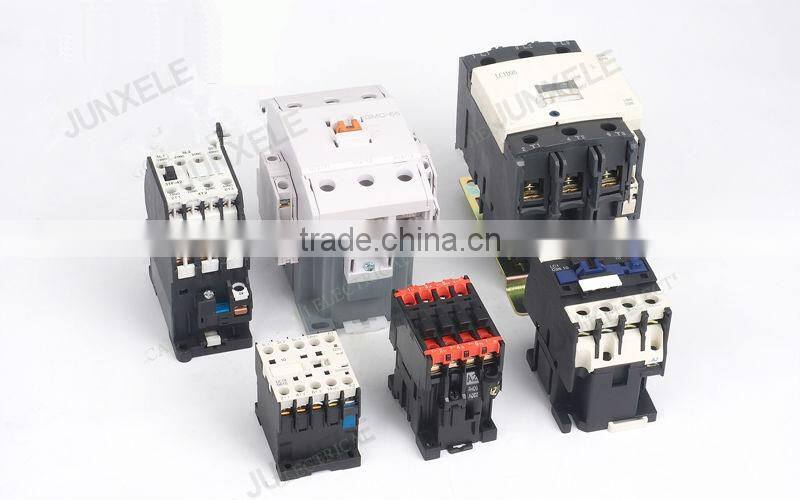

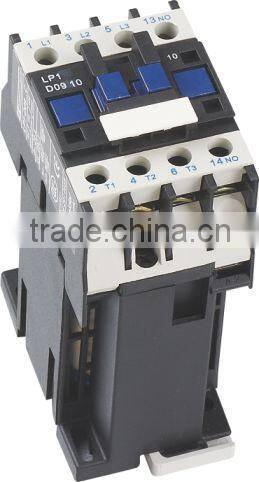

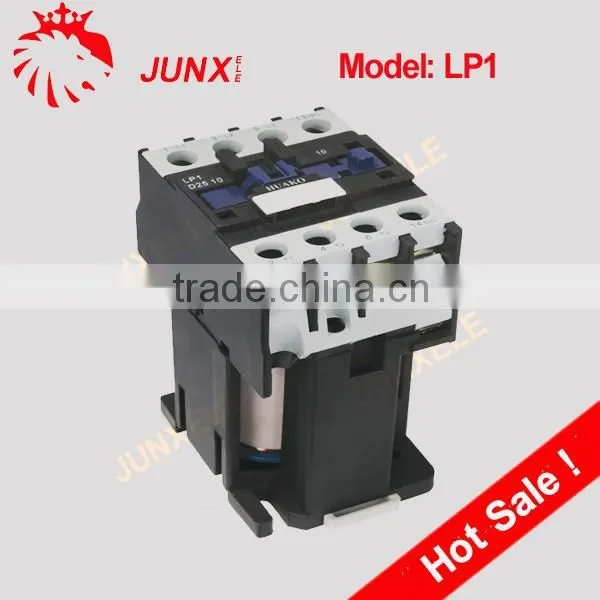

LP1 dc contactor
1.LC1 LP1 LE1
2. AC DC contactor
3. r new and old type
LP1 DC contactor is suitable for frequency 50Hz/60Hz, rated voltage up to 380VDC and rated current up to 125A. For remote controlling circuit making, breaking and frequent starting DC motor. It can also combine with the auxiliary contact group, air delayer, thermal relay devices etc.
Technical Data
| Type | LP1-D09 | LP1-D12 | LP1-D18 | LP1-D25 | LP1-D32 | LP1-D40 | LP1-D50 | LP1-D65 | LP1-D80 | LP1-D95 | ||
| Rated working current(A) | 380V | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | ||
| 660V | AC3 | 6.6 | 8.9 | 12 | 18 | 21 | 34 | 39 | 42 | 49 | 55 | |
| AC4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 | ||
| Rated heat current(A) | 25 | 25 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | ||
| Controllable power(kW) | 220/240V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 | |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | ||
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | ||
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | ||
| 600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | ||
| Pole | 3,4 | 3,4 | 3 | 3,4 | 3 | 3,4 | 3,4 | 3,4 | 3,4 | 3,4 | ||
| Rated working voltage(V) | 380,660 | |||||||||||
| Rated insulation voltage(V) | 660 | |||||||||||
| Mechanical life x104 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | ||
| Electrical life | AC3x104 | 100 | 100 | 100 | 100 | 80 | 80 | 80 | 80 | 60 | 60 | |
| AC4x104 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | ||
| Operating frequency | Electrical life | AC3x104 | 1200 | 1200 | 1200 | 1200 | 600 | 600 | 600 | 600 | 600 | 600 |
| AC4x104 | 300 | |||||||||||
| Mechanical life x104 | 3600 | |||||||||||
| Rated controlled voltage (V) | 24-660 | |||||||||||
| Working voltage | Close | DC% | 0.85-1.1Us | |||||||||
| Open | AC% | 0.10-0.75Us | ||||||||||
1. Design Services-- Our team has experience in all fields relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2. Samples Procedure-- purchasing from a Chinese supplier, especially for the first time, is that when the goods arrive - it's not what you wanted. Our samples procedure takes away that worry completely!
3. Research & Development -- Research & Development is a key part of what we do, and what we offer to our clients
4. Quality Control-- includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
5. After-sales-- Working closely with our customers we evaluate the success of our delivered product
With your valuable feedback we can begin to plan for better services.
The Reason Why Choose Us? LC1-D ac contactor
(1) We have been supplying own label and branded Electrical products for more than 10 years with clients from the USA and Europe .
(2) We have a professional in-house design team which can support you in all aspects of product design.
(3) We continuously assess and review our partners; ensuring we can always offer the up to the minute products, the most competitive prices and the best quality products to satisfy our clients requirements.
(4) Samples are always available for checking quality and can be dispatched to you very quickly.
(5) We have a stringent quality control system; including checks throughout the production process.
(6) All Our products have passed CE.
(7) Our production capability can reach 2,000,000 pieces per month .
Who Can We Supply? SB LC1-D ac contactor W voltage stabilizer
We have experience in supplying customers throughout the USA and Europe. Our client base ranges from distributers looking to promote ready products, through to start ups looking to bring a product to market and multinational retailers looking for high volume, quality products distributed globally.
The Business Partner We Are Seeking For? SB LC1-D ac contactor W voltage stabilizer
We are always interested to hear from potential partners and we are keen to develop our business in the USA, Europe and Asia. We are especially eager to hear from interested parties with experience and a network in Electrical.
