LE1 magnetic contactor1.LC1 LP1 LE1
2. AC DC contactor
3. CE ISO KEMA magnetic contactor

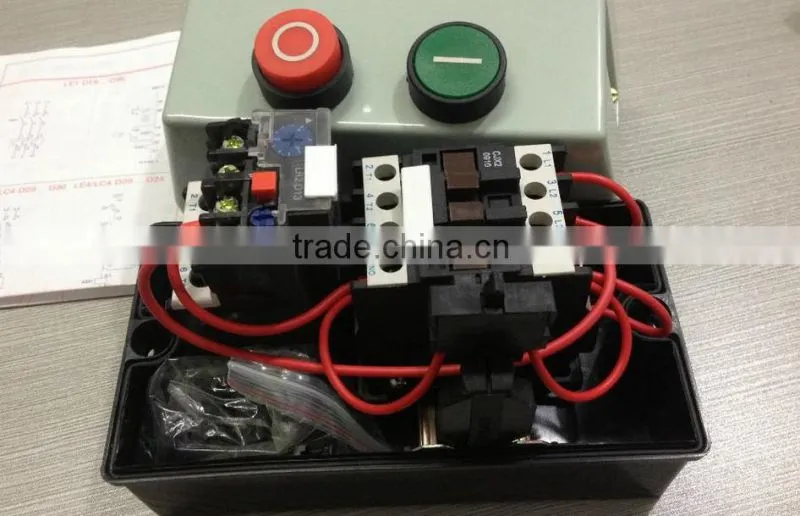

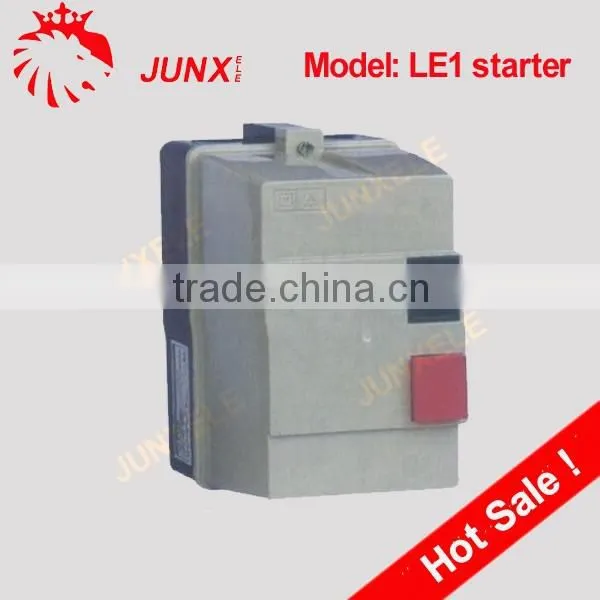

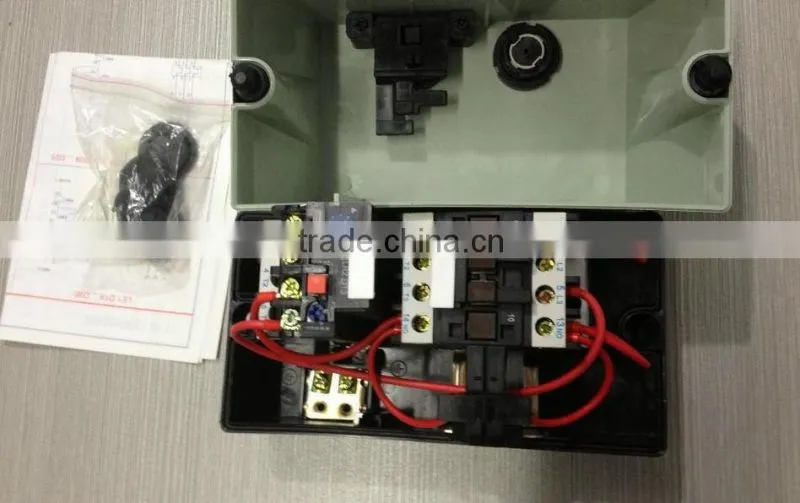

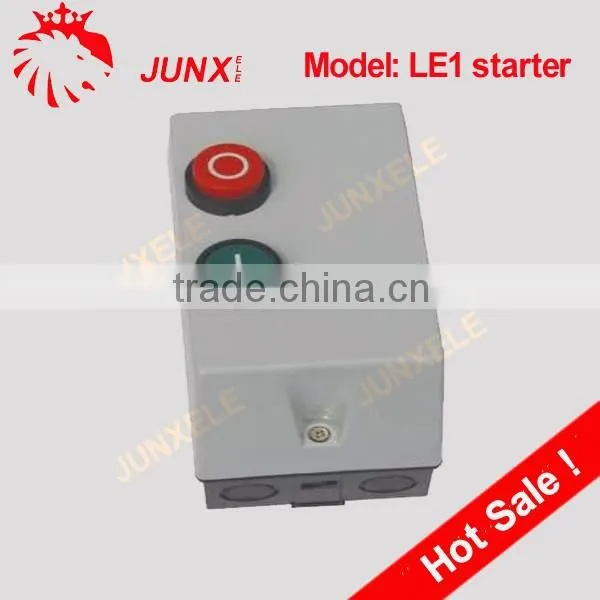

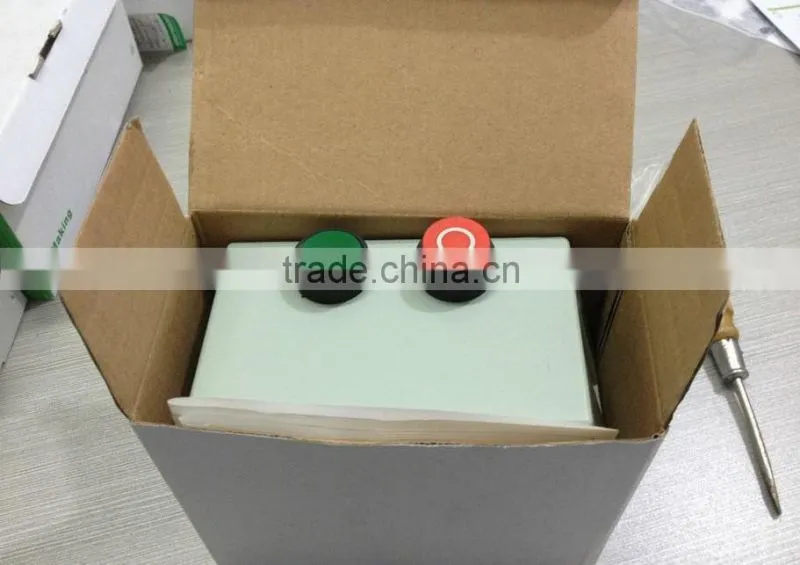

LE1 magnetic contactor
LE1 series magnetic contactor is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe andreliable performance. It complies to IEC947-4-1.
| Type | Rated | Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
| Current(A) | 220V | 380V | 415V | 440V | 500V | 660V | ||
| 230V | 400V | 690V | ||||||
| LE1-9 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | LR2 D1312 |
| LR2 D1314 | ||||||||
| LE1-12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 |
| LE1-18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 |
| LE1-25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | LR2 D1322 |
| LR2 D2353 | ||||||||
| LE1-32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | LR2 D2355 |
| LE1-40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | LR2 D3353 |
| LR2 D3355 | ||||||||
| LE1-50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | LR2 D3357 |
| LR2 D3359 | ||||||||
| LE1-65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 |
| LE1-80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | LR2 D3363 |
| LR2 D3365 | ||||||||
| LE1-95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |
1. Design Services-- Our team has experience in all fields relating to product design and development. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.
2. Samples Procedure-- purchasing from a Chinese supplier, especially for the first time, is that when the goods arrive - it's not what you wanted. Our samples procedure takes away that worry completely!
3. Research & Development -- Research & Development is a key part of what we do, and what we offer to our clients
4. Quality Control-- includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
5. After-sales-- Working closely with our customers we evaluate the success of our delivered product
With your valuable feedback we can begin to plan for better services.
The Reason Why Choose Us? magnetic contactor
(1) We have been supplying own label and branded Electrical products for more than 10 years with clients from the USA and Europe . magnetic contactor
(2) We have a professional in-house design team which can support you in all aspects of product design.
(3) We continuously assess and review our partners; ensuring we can always offer the up to the minute products, the most competitive prices and the best quality products to satisfy our clients requirements.
(4) Samples are always available for checking quality and can be dispatched to you very quickly.
(5) We have a stringent quality control system; including checks throughout the production process.
(6) All Our products have passed CE. magnetic contactor
(7) Our production capability can reach 2,000,000 pieces per month . magnetic contactor
Who Can We Supply? magnetic contactor
We have experience in supplying customers throughout the USA and Europe. Our client base ranges from distributers looking to promote ready products, through to start ups looking to bring a product to market and multinational retailers looking for high volume, quality products distributed globally. magnetic contactor
The Business Partner We Are Seeking For? magnetic contactor
We are always interested to hear from potential partners and we are keen to develop our business in the USA, Europe and Asia. We are especially eager to hear from interested parties with experience and a network in Electrical. magnetic contactor
