Specifications
High Performance Digital Gasket Cuttersshape:all gaskets
Cut:papers,plastics,rubbers,complex materials
CE,ISO

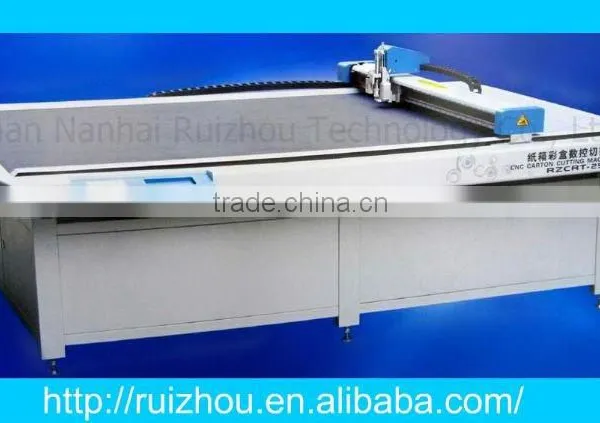

High Performance Digital Gasket Cutters for Short-run Productivity
High Performance Digital Gasket Cutters for Short-run Productivity is very useful to cut gaskets.
THE ADVANTAGES
1. Dieless
free you from moulds and dies, ideal for sample-making and small production.
2. Creative
Using CNC system, you can design any shapes you like, to better suit your customers' needs, enlarging your products lines. Designs can be unlimited, creativity will be maximized.
3. Accurate
using oscillating knife technology, cut exactly you want.
4. Versatile
multifunctional tool head, containing an oscillating blade, a pinch roller and a marking pen, capable of full-cutting, kiss-cutting, dotted-line cutting, creasing, laser-positioning, marking and drawing.
5. Easy
Simple user interface (liquid crystal display and touching button) and laser positioning, optimised design, easy to install, to set up and to use.
6. Professional
We have developped 21 kinds of knives to satisfy your cutting needs
improves your quality, reduces the costs and improve your efficiency
* Consistent accuracy: utilizing the Ruizhou RECAD software, any patterns can be re-cut or modified precisely in a short time.
* Shorten your lead times for samples and production, enabling you 'quick response' to customers and the market.
Specifications:
Mode |
RZCRT-1410 |
RZCRT-1813 |
RZCRT-2516 |
Cutting area |
1400mm*1000mm |
1800*1300mm |
2500*1600mm |
Working Character |
The gasket cutters are running at the same time with the computer operation .Fast finish data transfer and it can be used continuously. |
||
Cutting Speed |
80-150cm/s |
||
Cutting thickness |
0.5-10mm |
||
Cutting materials |
Corrugated paper, Plastic, Rubber board, Grey board Paper, Complex Material, Underlay ,White board paper |
||
Knife |
Rotate blade head, Vibration blade head, Die cutter |
||
Applicable pen type |
Common sign pen, Oil pen, ball-point pen, Silver pen |
||
Measure to Fix Paper |
Vacuum-based |
||
Mechanical resolution |
0.07mm |
||
Software resolution |
0.025mm 0.01mm 0.1mm optional |
||
Interface of transmission |
Standard parallel and serial interface |
||
Buffer Capability |
Once fast transfer |
||
Command |
HP-GL and GP-GL compatible mode |
||
Digital control Panel |
Liquid crystal display and touching button |
||
Transmission materials |
Straight line guide track / Synchronous belt / Imported synchronous belt |
||
Motor |
Servo motor |
||
Vibrating Blade Head |
Oscillating blade head motor 20000 rotate/min |
||
Machine working voltage |
AC 220∨±10%,50HZ |
||
Air pump working voltage |
AC 380∨±10%,50HZ |
||
