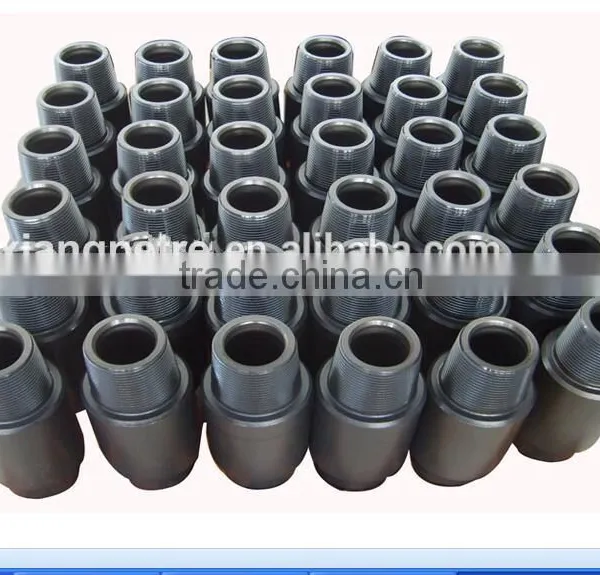

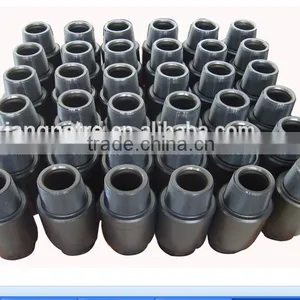

API Drill Pipe Tool Joint
US$ 200.00 - 200.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
DYQX
Model Number:
Size
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Drill Pipe Float Valves For OilfieldUS$ 200.00 - 200.00MOQ: 1 Piece -
RGF-1000 Oil Drilling Triplex Mud Pump Spare Parts Bimetallic Cylinder Liner/sleeveUS$ 100.00 - 100.00MOQ: 1 Piece
-
Drill Rod Coupling,Metal Polished Rod Coupling,Sucker Rod CouplingUS$ 1.60 - 1.60MOQ: 1 Piece
-
API Lifting Thread Protector for Drill Pipe and Drill CollarUS$ 300.00 - 300.00MOQ: 1 Pair
-
High Quality API Wear Sub For Drill Pipe and CasingsUS$ 1000.00 - 1000.00MOQ: 1 Piece
Place of Origin
Shandong, China
Brand Name
DYQX
Model Number
Size
Type
Drill Pipe
Machine Type
Drilling Tool
Certification
API
Material
Chromium
Processing Type
Casting
Use
Well Drilling
Product Description
Drill pipe tool joint main technical advantage
1. Raw material : choose alloy steel forging material
2. Heat treatment :advanced heat treatment temperature control technology
3. Mechanical property : each tool joint would be tested with body sample

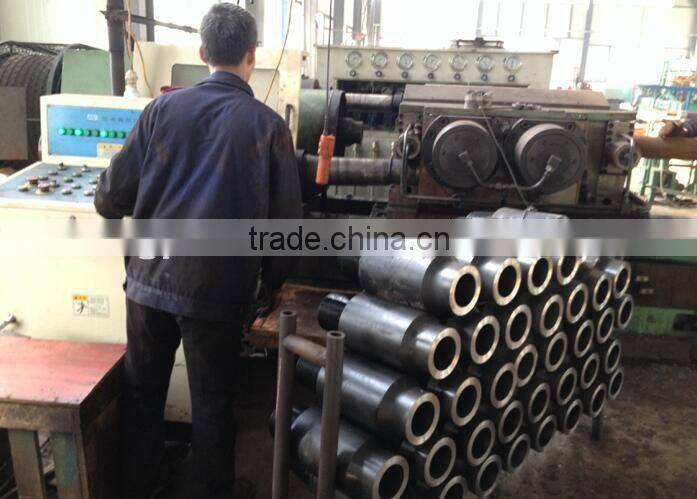

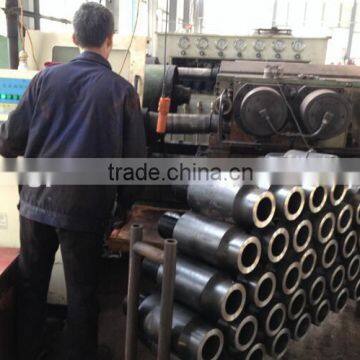

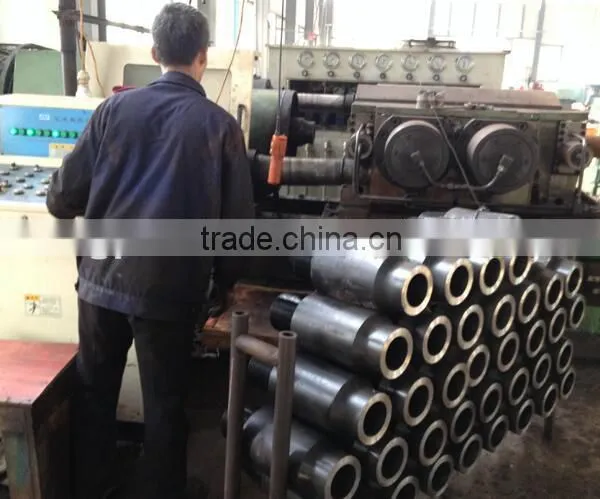

4. Thread machining with CNC lathe ,ensure its thread accurancy .
The following is normal tool joint size
| Drill pipe tool joint size ,thread and weight | ||||||
| Double shouldered connection with high resistance torque | ||||||
| Model | Tool joint OD |
Tool joint ID |
Pin length | Pitch | Side step torque |
Main stel torque |
| NC26 | 3-3/8 | 1-3/4 | 3 | 2.668 | 2066 | 6875 |
| NC31 | 4-1/8 | 2 | 3-1/2 | 3.813 | 5020 | 13389 |
| NC31 | 4-3/8 | 1-5/8 | 3-1/2 | 3.183 | 7150 | 17170 |
| NC38 | 5 | 2-9/16 | 4 | 3.808 | 6428 | 20326 |
| NC38 | 5 | 2-7/16 | 4 | 3.808 | 7928 | 22213 |
| NC38 | 5 | 3-1/8 | 4 | 3.808 | 11174 | 26515 |
| NC40 | 5-3/8 | 2-7/16 | 4-1/2 | 4.072 | 11150 | 29930 |
| NC40 | 5-1/4 | 2-9/16 | 4-1/2 | 4.072 | 9623 | 27760 |
| NC40 | 5-1/2 | 2-1/4 | 4-1/2 | 4.072 | 13245 | 32493 |
| NC40 | 6-1/2 | 2-7/16 | 4-1/2 | 4.072 | 11150 | 30114 |
| NC46 | 6 | 3-1/4 | 4-1/2 | 4.626 | 10451 | 33625 |
| NC46 | 6 | 3 | 4-1/2 | 4.626 | 14898 | 39229 |
| NC46 | 6-1/4 | 3 | 4-1/2 | 4.626 | 14898 | 39659 |
| NC46 | 6-1/4 | 2-3/4 | 4-1/2 | 4.626 | 18860 | 44871 |
| NC46 | 6-1/4 | 2-1/2 | 4-1/2 | 4.626 | 22352 | 49630 |
| NC46 | 6-1/4 | 2-1/4 | 4-1/2 | 4.626 | 25389 | 53936 |
| NC50 | 6-5/8 | 3-3/4 | 4-1/2 | 5.042 | 10956 | 37676 |
| NC50 | 6-5/8 | 3-1/2 | 4-1/2 | 5.042 | 16678 | 44673 |
| NC50 | 6-5/8 | 3-1/4 | 4-1/2 | 5.042 | 21859 | 51447 |
| NC50 | 6-5/8 | 3 | 4-1/2 | 5.042 | 26513 | 57800 |
| NC50 | 6-5/8 | 2-3/4 | 4-1/2 | 5.042 | 30656 | 63406 |
| 5-1/2FH | 7 | 3-3/4 | 5 | 5.591 | 25185 | 60338 |
| 5-1/2FH | 7 | 3-1/2 | 5 | 5.591 | 31214 | 60338 |
| 5-1/2FH | 7-1/4 | 3-1/2 | 5 | 5.591 | 29000 | 72480 |
| 5-1/2FH | 7-1/4 | 3-1/4 | 5 | 5.591 | 36672 | 76156 |
| 5-1/2FH | 7-1/2 | 3 | 5 | 5.591 | 41571 | 87341 |
| Main step torque value is referred to API standard torque | ||||||
