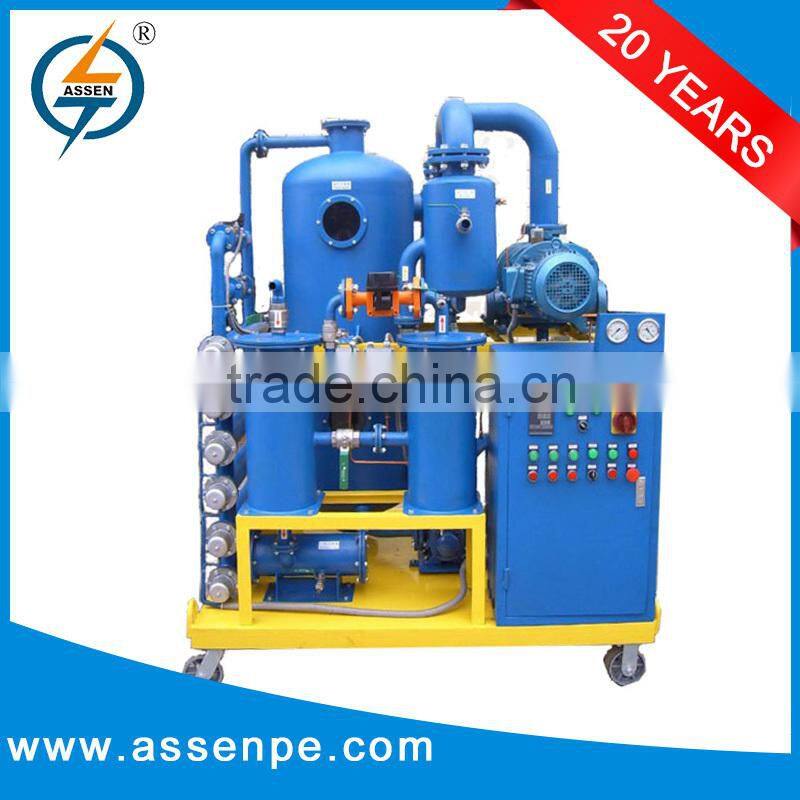

vacuum machine for pumping transformer,online drying transformer
Vacuum is drawn in transformer tank with aid of transformer evacuation system to remove moisture and gases from insulation/oil. Alternately during commissioning of transformer, nitrogen is evacuated with transformer evacuation system before new oil filling or oil alteration in transformers. Transformer evacuation is a wet process which necessitates proper moisture extraction before its entry into vacuum pump.
ASSEN has designed transformer evacuation systems that have efficient moisture condensers with adequate cooling area that are placed in line with the vacuum pump. In case of non-availability of cold water circulation at site, condensers are also provided with facility of ice cups which aid to hold ice and improve the moisture condensation.
The transformer evacuation systems are robustly designed with vacuum pumps and booster pumps (ROOTS pump) to handle large volumes of moisture in transformers.
1. Simple structure and convenient in operation.
2. The forward pump adopts the original world's leading vacuum pump imported from Europe, and customers can choose the imported Roots pump or homemade ones according to their purchasing power.The pump can attain high working vacuity at a vey fast pumping speed.
3. Equipped with Pipeline filter so as to keep large impurities out of the system, not damaging the vacuum pump.
4. Adopt standard closed type structure suitable for outside operation.
ASSEN Series ASV vacuum machine is composed of vacuum pump and roots pump, The roots pump automatically works by the controlling of relays or electrical-contact vacuum gauge. ASV equips an electrical control system and a cooling water system. It is quick start, big capacity of vacuum evacuating etc, widely used in vacuum smelting, welding, chemical, pharmaceutical and electric power system, particularly suitable for transformer vacuum operation.
vacuum machine's Technical Data:
Name |
ASV-70 |
ASV-150 |
ASV-300 |
ASV-600 |
ASV-1200 |
Pumping Rate (L/s) |
70 |
150 |
300 |
600 |
1200 |
Ultimate Vacuum (Pa) |
≤7 |
≤7 |
≤7 |
≤5 |
≤5 |
Operating Vacuum(Pa) |
≤133 |
||||
Pumping Stage |
2 |
2 |
2 |
2 |
3 |
Net Weight |
450 |
600 |
900 |
1200 |
1500 |
Overall Dimensions (cm) |
100*60*140 |
120*65*150 |
120*70*160 |
130*80*180 |
150*100*190 |
vacuum machine's Advantage:
1. Drying transformer
2. Double stage vacuum (vacuum pump and roots booster pump)
3. Pumping Speed from 108 m3/hr to 4320 m3/hr
- Your inquiry related to our products or prices will be replied in 24 hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
- OEM is available for Anern Products.
- Protection of your sales area, ideas of design and all your private information.
Q: How to dry the transformers?
A:Vacuum is drawn in transformer tank with aid of transformer evacuation system to remove moisture and gases from insulation/oil. Alternately during commissioning of transformer, nitrogen is evacuated with transformer evacuation system before new oil filling or oil alteration in transformers. Transformer evacuation is a wet process which necessitates proper moisture extraction before its entry into vacuum pump.
ASSEN has designed transformer evacuation systems that have efficient moisture condensers with adequate cooling area that are placed in line with the vacuum pump. In case of non-availability of cold water circulation at site, condensers are also provided with facility of ice cups which aid to hold ice and improve the moisture condensation.
The transformer evacuation systems are robustly designed with vacuum pumps and booster pumps (ROOTS pump) to handle large volumes of moisture in transformers.
.
