Application:

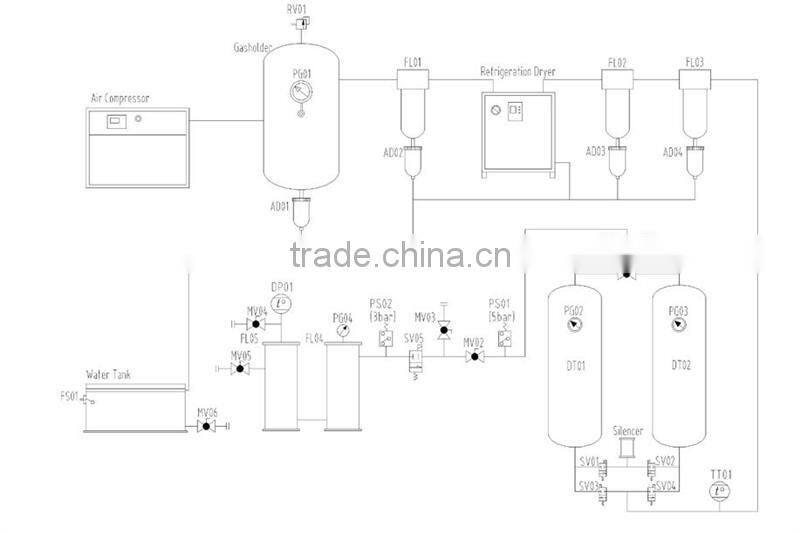

ASSEN offers packaged Dry Air Generator Plant in which complete assembly is mounted on a common skid. Assembly includes Air Compressor, After Cooler, Air Receiver and Heatless Air Dryer. The system is ready to install type just requiring power connection, water connection and air inlet/outlet connection. Standard Packaged Dry Air generator Plants are offered upto a capacity of 150CFM.and a pressure of 7- 15 kg/cm2 The Heatless type dry air generator is suitable for supplying dry air at site and is able to continuously operate without manual assistance by automatic recycling of air drying and regeneration of absorbent.
TAD dry air generator is suitable for supplying dry air at site and is able to be continuously operated without manual assistance by automatic recycling of air drying and regeneration of adsorbent
compressed air generator
Functions:
1.The air compressor is doublescrew; we use new technology to dehydrate by flocculation method in low
temperature.
2.It is small and light, easy to operate, save energy, safe and reliable to use.
3.We use both cooling dryer, absorption dryer and fine filtration to supply dry air with high quality and low water
content.
4.It is integrated design; you can choose PLC to check parameters automatically. It has compact and reasonable structure and good performance with low consumption and long lifetime. Its lifetime is 3 times longer with its Compositedesiccant than common desiccant.
5.We use technology to dehydrate by regenerated absorption, use high precision and oil-resistant dehydratedfilter 0.01μm to ensure clean air. It is easy to operate, safe and reliable to use,it can save energy .
compressed air generator

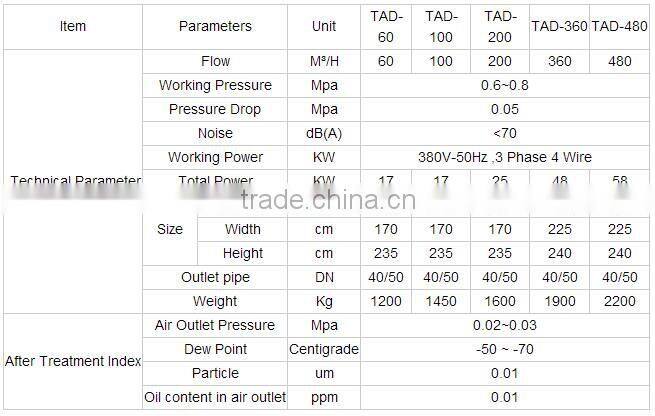

Technical Data:
| After-sales Service Provided | Engineers available to service machinery overseas |
| Certification | ISO CE |
| Weight | 860KG |
| Dimension(L*W*H) | 1790*1360*1570MM |
| Power(W) | 80KW |
| Voltage | 380 or as customer's requirements |
| Usage | Dry air generator |
| Model Number | TAD-150 |
| Brand Name | ASSEN |
| Place of Origin | China (Mainland) |
| China (Mainland) | Chongqing |
| Working Pressure | 0.4MPA |
| Flow | 150m³/H |
| compressed air generator | compressed air generator |
Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, compressed air generator, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
