Help CenterAutomatically Boosting Insulating Oil Test Instrument
Related Products
-
Rational Construction Transformer Oil Bdv Oil Tester EquipmentUS$ 2,150 - 2,550MOQ: 1 Set -
ART Automatic Transformer Turns Ratio TesterUS$ 4,480 - 5,550MOQ: 1 Set
-
Factory Wholesale BDV Dielectric Strength TesterUS$ 2,250 - 2,440MOQ: 1 Set
-
SCT Transformer ON-LOAD Tap Changer TesterUS$ 4,480 - 5,550MOQ: 1 Set
-
Fully Automatic 80 kv Insulating Oil TesterUS$ 2,150 - 2,550MOQ: 1 Set
Application:
In the electric power industry, insulating oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. Series ST insulating oil test instrument is special for testing insulating oil's dielectric strength. ST Automatic oil tester is designed according to international standard of IEC156. Adopt industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti-jamming technologies which greatly improve the tester's performance.

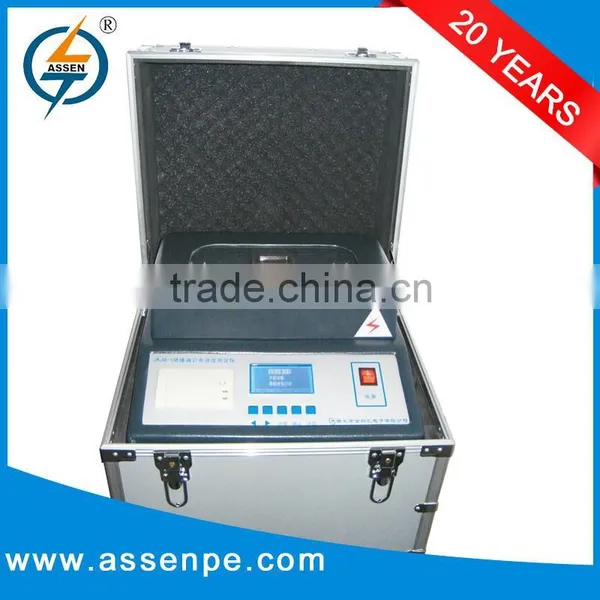

insulating oil test instrument
Features:
1. Simple operation, high degree of automation (just press a button)
2. Using the menu management, easy to understand the input parameters
3. Can store 99 groups oil sample test data to facilitate future access to and print, test data can be stored in power off state for 10 years.
4. The system clock in the power off state can continue to run.
5. Through the RS232 port with a software upgrade or with the PC, on-line detection.
6. Anti-interference ability
7. Detection with high precision
8. Small size, light weight, easy operations
insulating oil test instrument
Parameters:
1.Output voltage : AC 0V~100KV
2.Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3.Max test times setting for user-defined mode: 9
4.Stir time setting for user-defined mode: 0~999s
5.Waiting time setting for user-defined mode: 0~999s
6.Test error: 3%RDG+0.3%FS
7.Display: 256 ´ 128 LCD
8.Maximum storage capacity: 100 groups of test data
9.Power supply : AC220V±10%, 50Hz/60Hz
10.Environment temperature: 0-50 °C
11.Relative humidity ≤ 80%RH
12.Weight:41kg
13.Size: 620mm*430mm*330mm
| Usage | Auto Testing Machine |
| Power | Electronic |
| Model Number | ST-100 |
| Brand Name | ASSEN |
| Place of Origin | China (Mainland) |
| China (Mainland) | Chongqing |
| insulating oil test instrument | insulating oil test instrument |
Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, insulating oil test instrument, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
| Contacts : | Jay Ai
|
| Tel : | +86-2388703683 |
| Phone : | +86-15223801122
|
| Fax : | +86-2388703683 |
| Homepage: | https://img13.fr-trading.com/
|
