Hot Sale Oil Bdv Testing With High Quality

Application:

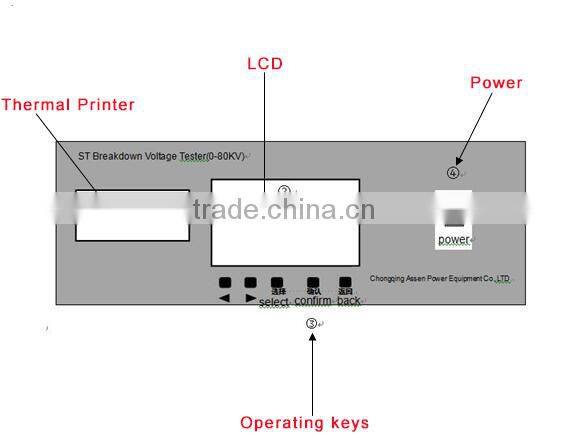

ST Fully Automatic Insulating Oil Dielectric Strength Tester is developed according to the national standard GB-86 Insulating Oil Dielectric Strength Testing Method .LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .

ST Fully Automatic Insulating Oil Dielectric Strength Tester is very easy for customers to measure the breakdown voltage of all kinds of oil. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

oil bdv testing

Functions:
1.Breakdown test of user-defined
2.Proof test
3.IEC60156/IS6792/BS5874 test
4.ASTM D1816 standard test
5.ASTM D877 standard test
6.5 minutes standard test
7.Manual test
8.Calibration interface for customers
9.Uploading data to PC and making word report automatically.
10.Result print

oil bdv testing

Parameters:
1.Output voltage : AC 0V~100KV
2.Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
3.Max test times setting for user-defined mode: 9
4.Stir time setting for user-defined mode: 0~999s
5.Waiting time setting for user-defined mode: 0~999s
6.Test error: 3%RDG+0.3%FS
7.Display: 256 ´ 128 LCD
8.Maximum storage capacity: 100 groups of test data
9.Power supply : AC220V±10%, 50Hz/60Hz
10.Environment temperature: 0-50 °C
11.Relative humidity ≤ 80%RH
12.Weight:41kg
13.Size: 620mm*430mm*330mm

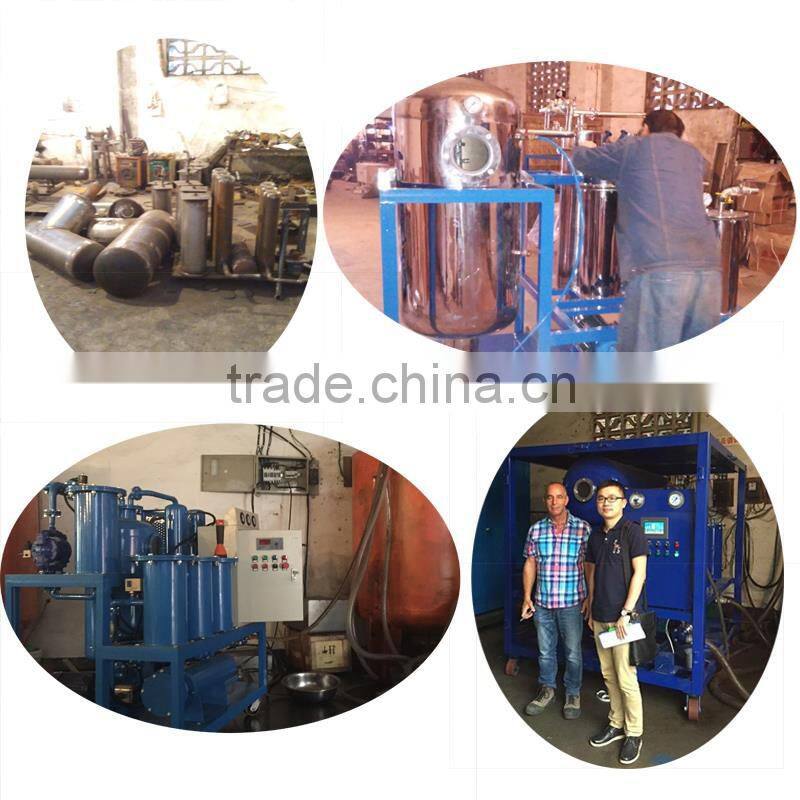

Chongqing Assen Power Equipment Co.,LTD , which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams

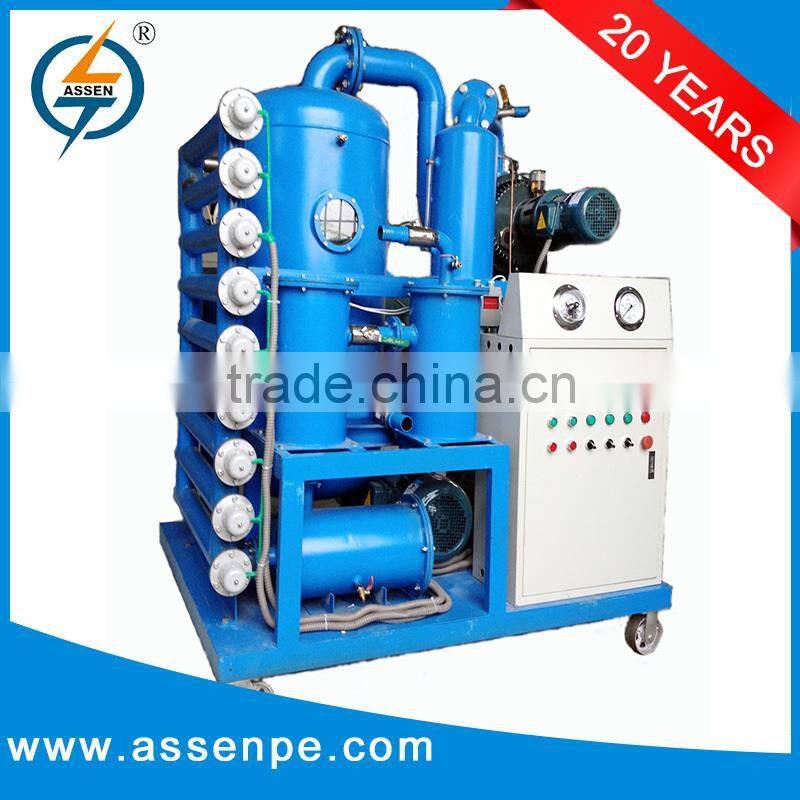

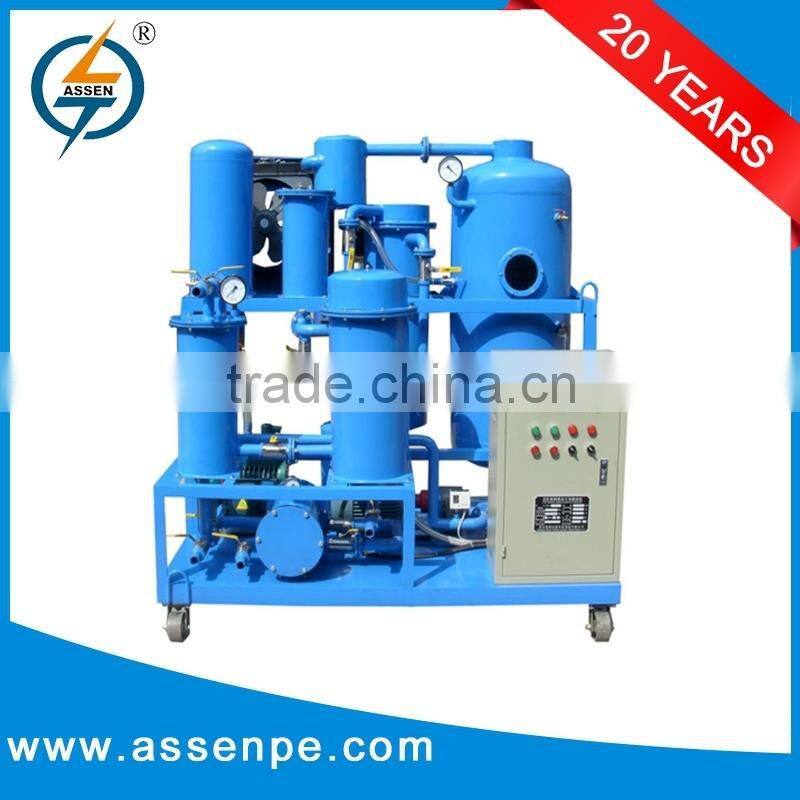

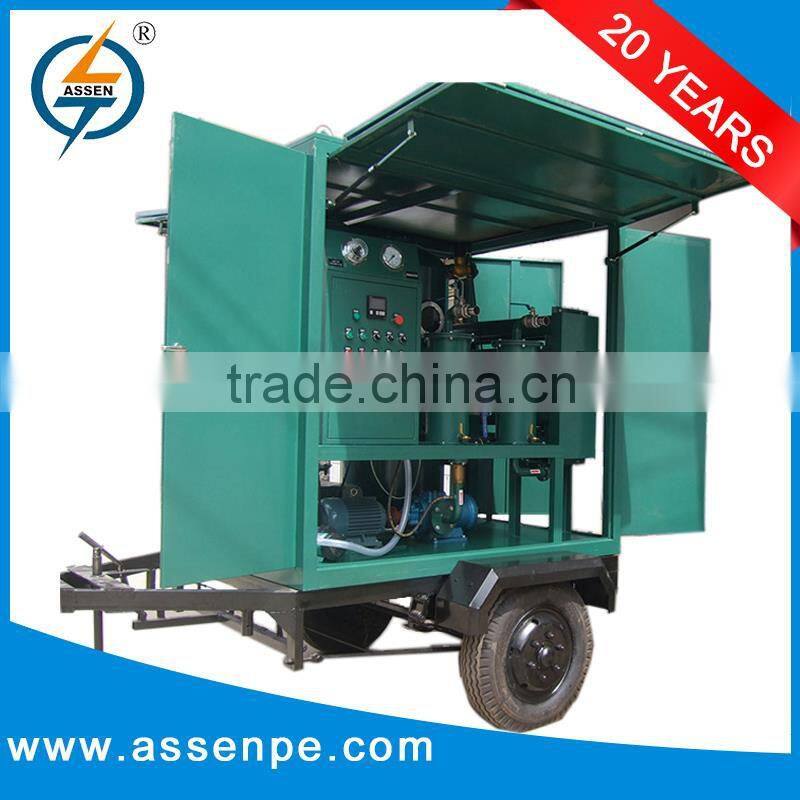

Our Product:   Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, oil bdv testing, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.

Our Service:   special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
