Help CenterODM OEM Security Camera CCTV System - Video IN/OUT: BNC (Male) Support Most Video Device CCTV TWISTED PAIRS Video Balun
Related Products
-
BNC Female Jack to F FEMALE JACK F Female BNC Female RF Connector AdaptorUS$ 0.09 - 0.29MOQ: 100 Pieces -
RG59 BNC Male Twist On ConnectorUS$ 0.09 - 0.29MOQ: 100 Pieces
-
Bnc Male to Mini UHF Female Adaptor ConnectorUS$ 0.19 - 0.99MOQ: 100 Pieces
-
Mini UHF Male to BNC Male Connector Adaptor Adapter ConverterUS$ 0.19 - 0.99MOQ: 100 Pieces
-
50 Ohm 3 Piece 50 Ohm BNC Female Bulkhead Crimp Connector RG58US$ 0.09 - 0.29MOQ: 100 Pieces
Specifications
1.a wide range,plug and play2.good quality
3.easier for installation, save time and safer cable connection

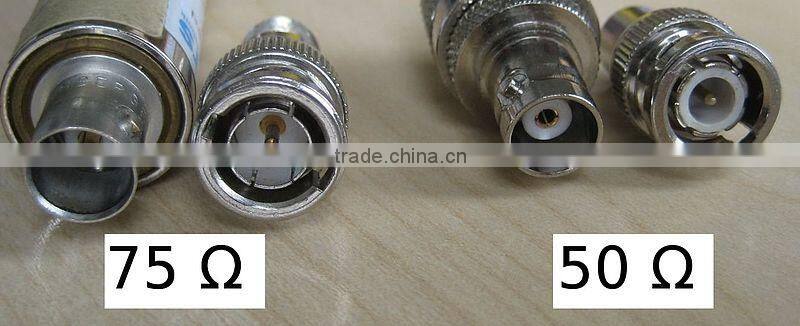

The BNC (Bayonet Neill–Concelman) connector is a miniature quick connect/disconnect radio frequency connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is fully achieved with a quarter turn of the coupling nut. BNC connectors are used with miniature-to-subminiature coaxial cable in radio, television, and other radio-frequency electronic equipment, test instruments, and video signals. The BNC was commonly used with 10BASE2computer networks. BNC connectors are made to match the characteristic impedance of cable at either 50 ohms or 75 ohms. They are usually applied for frequencies below 4 GHz and voltages below 500 volts.
Similar connectors using the bayonet connection principle exist, and a threaded connector is also available. United States military standard MIL-PRF-39012 entitledConnectors, Coaxial, Radio Frequency, General Specification for (formerly MIL-C-39012) covers the general requirements and tests for radio frequency connectors used with flexible cables and certain other types of coaxial transmission lines in military, aerospace, and spaceflight applications.
|

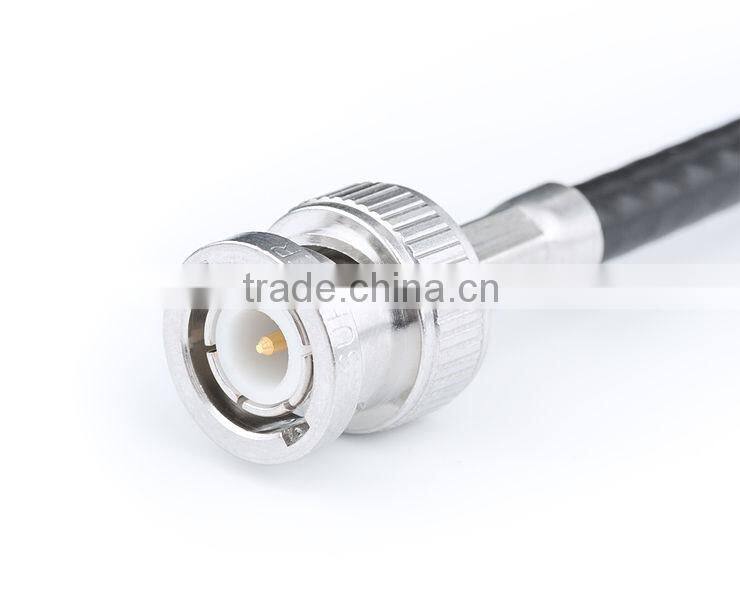

Male 50 ohm BNC connector | |||
| Type | RF coaxial connector | ||
|---|---|---|---|
| Production history | |||
| Designer | Paul Neill, Carl Concelman, & Octavio M. Salati | ||
| Designed | Patented 1951 | ||
| Manufacturer | Various | ||
| General specifications | |||
| Diameter |
Male: 0.570 in (1.45 cm) Female: 0.436 in (1.11 cm) (outer, typical) |
||
| Cable | Coaxial | ||
| Passband | Typically 0–4 GHz | ||
Send Inquiry to This Supplier
