Specifications
3T CE quick clamp1.engine:Yuchai,Deutz,Cummins
2.power shift:tor-con
3.1year warranty
4.A/C,joystick,quick hitch,grass clam

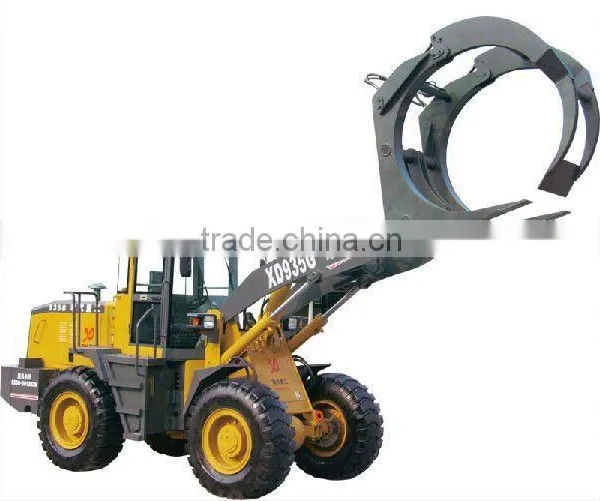

3T quick clamp
1.YUCHAI 6108 engine with large power reservation, energy efficient. You also can choose DEUTZ and CUMMINS engine.
2.Hydraulic transmission and hydraulic steering, easy and flexible operation .
3.Single-stage centripetal turbine torque converter and countershaft power-shift gearbox with large power and high reliability .
4.Air over hydraulic brake system can make sure the brake system easy and efficient.
Item |
XD935G |
wood diameter |
1320-2450mm |
Weight (t) |
9.8 |
Rated load (t) |
3.0 |
Gear box |
428 |
Lifting time of the arms (s) |
≤6 |
Hydraulic cycle time (s) |
≤11 |
Traveling speed (km/h) |
0-35 |
Forward gear I |
7-12.5 |
Forward gear II |
21-35 |
Reverse gear I |
0-14 |
Reverse gear II |
25 |
Max. climbing gradient |
30° |
Overall length (mm) |
7140 |
Overall width(mm) |
2400 |
Overall height(mm) |
3120 |
Wheel base (mm) |
2600 |
Wheel tread(mm) |
1800 |
Min. radius(mm) |
5100 |
Max. Breakout force(KN) |
96 |
Max. dumping height(mm) |
2800 or 3050 or 3260 |
Dumping reach (mm) |
1180 |
Engine model |
YC6108G or Cummings 6BT-5.9-C125 |
Rated speed (r/min) |
2200 |
Rated power(kw) |
92 |
Tires type |
17.5/25 |
Standard Device |
Air conditioner |
Hydraulic pilot control |
Pilot control joystick
bumping bag spring seat
