Specifications
3T log clamp1.engine:Yuchai,Deutz,Cummins
2.power shift:tor-con
3.1year warranty
4.optional:A/C,joystick,quick hitch

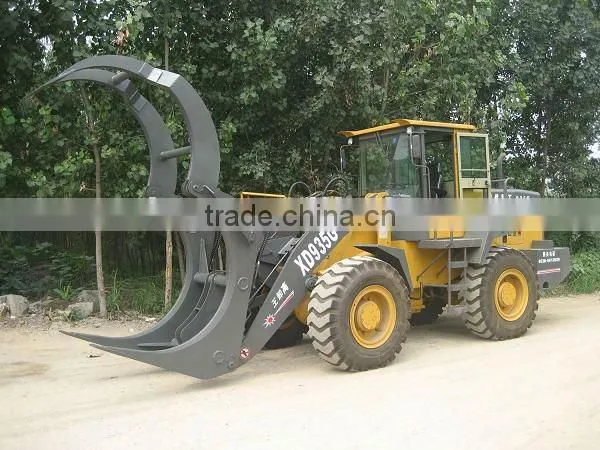

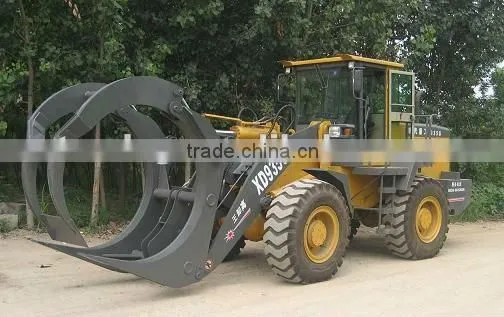

3T log clamp which can clamp wood in agriculture, forestry area.
XD935G clamp with 428 Gear Box; 315 Torque Converter; Overload protection system; Hydraulic drive; CVT system.
Optional accessories: grass grapple, quick hitch,side-dump bucket, high dump bucket, exhausted air cleaner.
Item |
XD935G |
Bucket capacity (m3 ) |
1.8 |
Weight (t) |
9.8 |
Rated load (t) |
3.0 |
Gear box |
428 |
Lifting time of the arms (s) |
≤6 |
Hydraulic cycle time (s) |
≤11 |
Traveling speed (km/h) |
0-35 |
Forward gear I |
7-12.5 |
Forward gear II |
21-35 |
Reverse gear I |
0-14 |
Reverse gear II |
25 |
Max. climbing gradient |
30° |
Overall length (mm) |
7140 |
Overall width(mm) |
2400 |
Overall height(mm) |
3120 |
Wheel base (mm) |
2600 |
Wheel tread(mm) |
1800 |
Min. radius(mm) |
5100 |
Max. Breakout force(KN) |
96 |
Max. dumping height(mm) |
2800 or 3050 or 3260 |
Dumping reach (mm) |
1180 |
Engine model |
YC6108G or Cummings 6BT-5.9-C125 |
Rated speed (r/min) |
2200 |
Rated power(kw) |
92 |
Tires type |
17.5/25 |
Standard Device |
Air conditioner |
Hydraulic pilot control |
