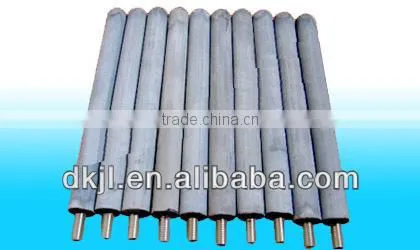

Si3N4 thermocouple protection tube/silicon nitride protection tubes
Application:
1. High temperatue senser sheath working in liquid aluminum, copper, zinc.
2. Other high temperature and corrosion enviroment.
Description: NSiC has higher strength than RSiC and has excellent oxidation resistance. Maximum working temperature is 1500deg.In addition to its structural properties, NSiC has excellent wear properties and is resistant to corrosion and erosion by molten metals. So that it can be used in direct contact with molten aluminum, zinc, copper, magnesium. NSiC has been successfully used for protection tubes for temperature measurement.
Technical Parameter of Silicon Carbide thermocouple protection tubes
item |
data |
temperature of application |
1380°C |
density |
>3.05g/cm3 |
open porosity |
<0.1% |
bending strength |
250Mpa(20centigrade), 280Mpa(1200centigrade) |
modulus of elasticity |
330Gpa(20centigrade), 300Gpa(1200centigrade) |
thermal conductivity |
45W/m.k(1200centigrade) |
coefficient of thermal expansion |
4.5K-1*10-6 |
Mohs hardness |
13 |
Packaging: standard exported wooden case
Shipping: By vessel or plane from any Chinese port
Provide sample for test before order
Provide competitive price
Arrange prodcution on time
Control product quality and delivery time
Provide finished products and packing photos
Book the earliest and fast vessel
Provide original document and original certificate
After sale
DKJL refractories exporting company is one of the most professional suppliers of refractories in China.The main products are refractory bricks,thermal insulation material,heating elements, industrial ceramics and scientific instruments.They are available in various size and shapes.Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
MOQ: 10pcs
Inquiry factors: Working temp, Size, Quantity
