Silicon Carbide Plate for Kiln Furnace

Silicon Carbide Plate for Kiln Furnace thumbnail-1
Silicon Carbide Plate for Kiln Furnace photo-1
US$ 1 - 20 MOQ: 100 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
China
Shape:
Plate
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
Dkjl Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Shape Plate
Material Silicon Carbide (SiC)
SiO2 Content (%) -
Al2O3 Content (%) -
MgO Content (%) -
CaO Content (%) -
CrO Content (%) -
SiC Content (%) 75-90
Brand Name DKJL

  Silicon carbide plate for kiln furnace







Product Description





Features



1. Extremely high cold crushing strength.
2. Superior corrosion resistance

3. Low apparent porosity and thermal expansion.

4. Outstanding thermal shock resistanc

5. Excellent thermal conductivity





Production process of sic plate

a.) Choose metal silicon as raw material, add additives, then mix.

b.) Put the mixture into the mold, then make embryoid by machine pressing.

c.) Be reaction sintered by nitrogen protection in electric furnace.



 Packing details of sic plate

a.) The products are packed in wooden cases, and the wooden cases are tied up by 6 steel belts, then the wooden cases are put on fumigation wooden pallet.

b.) We also pack products as custom request.





Physical properties and chemical composition



Item
                 Index
SiC ,  %      min
                   90
SiO2 , %  min
                   8
Bulk Density ,  g/cm3
              2.55-2.7
Apparent Porosity , %          max
                  <15
Cold Crushing strength,  MPa     min
                 >120
rupture strength ,  MPa  min
                   >30
Refractoriness  ( SK )
                   1790
Initial soften point under load (°C)
                   1650
Thermal Conductivity, w/m.k   min
                   15.3
thermal expansion coefficient,  max
                 <5.2x10-6/°C

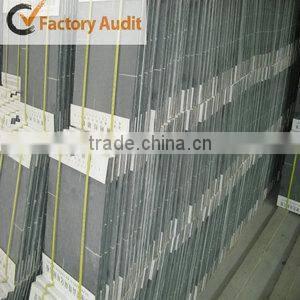

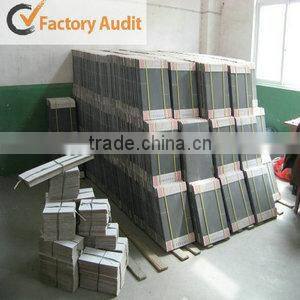

Silicon carbide plate for kiln furnaceSilicon carbide plate for kiln furnace









Packaging & Shipping





Packaging: Standard export carton,  wooden pallet

Shipping: By vessel or plane from any Chinese port







Our Services





Provide sample for test before order

Provide competitive price

Arrange prodcution on time

Control product quality and delivery time

Provide finished products and packing photos

Book the earliest and fast vessel

Provide original document and original certificate

After sale









Company Information





DKJL refractories exporting company is one of the most professional suppliers of refractories in China.The main products are refractory bricks,thermal insulation material,heating elements, industrial ceramics and scientific instruments.They are available in various size and shapes.Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.









FAQ





MOQ: 100pcs

Inquiry factors: Working temp, Density, Size, Quantity
