Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Skid Steer Diggers

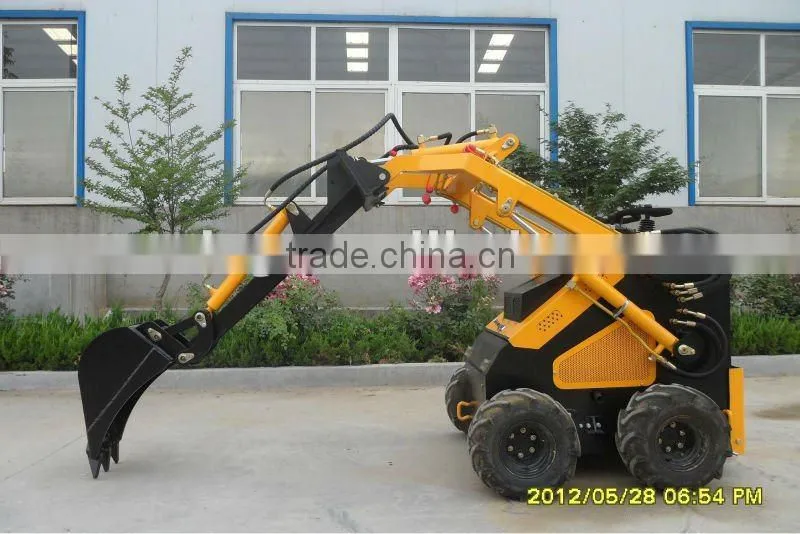

Skid Steer Diggers
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XD
Model Number:
XD380
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
XD
Model Number
XD380
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Other, mini skid steer loader
Dimension(Long * Breadth * High)
2206*1033*1205mm
Rated Load
280kg
Specifications
skid steer diggers1B&S gas(21HP or 23HP)
2.bucket capacity:0.014M3
3.Max.digging depth:1.6M
4.wheeled/tracked for needs
21HP--23HP skid steer diggers :
1.Emgine:B&S 21HP power,
2.18*9.5-8 solid tires,
3.Max digging depth: 1.6M

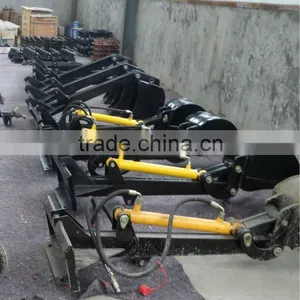

4.4kinds of tires, 15kinds of attachments are optional to make XD380 mini loader multifunctional.
5.digging bucket capacity:0.014M3
Model |
XD380 |
Engine Model |
B&S 3854 |
Rated Power |
20HP |
Bucket Capacity |
0.014M3 |
Digging depth |
0--1.6M |
Operating Weight |
1100KG |
Engine Displacement |
627ML |
System Pressure |
17mpa |
Bucket Breakout Force ,Bucket Cylinder |
550KN |
Breakout Force,Lift Cylinder |
375KN |
Tipping Load |
325KG |
Grade Ability |
8 |
Fuel Tank Capacity |
21L |
OIL Tank Capacity |
27--50L |
Max.Travel Speed |
5.5Km/h |
Dimension(L*W*H) |
2206*1033*1205mm(loader with solid tires) |
Send Inquiry to This Supplier
6Yrs
Business Type
Manufacturer
Year Established
2004
Factory Size
5,000-10,000 square meters
Total Employees
101 - 200 People
