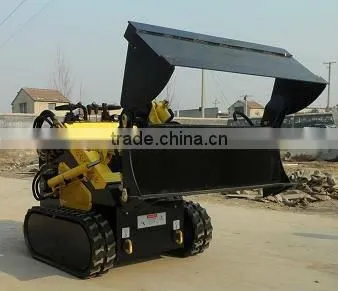

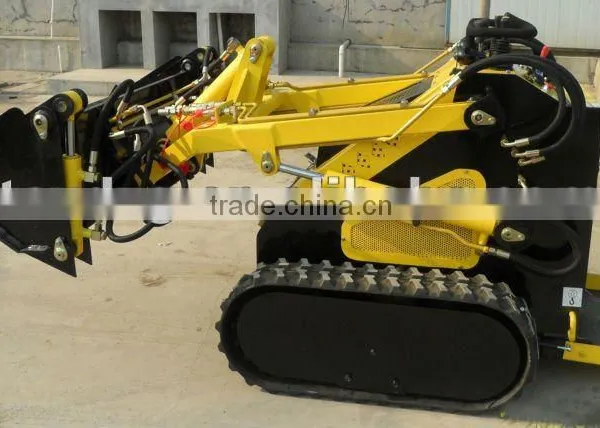

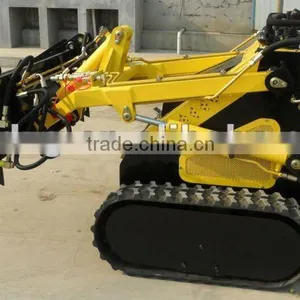

Help CenterLight Duty Shovel Mini Skid Loader
Related Products
Specifications
light duty shovel skid steer loader1.use for piling,scraping,loading
2.volume:0.15M3
3.rated load:280kg
4.wheeled/tracked
light duty shovel for skid steer loader:
1.use for piling, loading,scraping.
2.volume:0.15M3
3.optional:4tires,15attachments,joystick,crawler.
4. wheeled or tracked for needs
Model |
XD380 |
Engine Model |
Briggs&Stratton gas |
Rated Power |
21HP/-23HP |
Performance | |
Hydraulic pumps |
2 pumps |
Relief pressure(drive) |
170bar |
Relief pressure(aux ) |
170bar |
Attachment flow |
25 l/min |
Travel Speed |
0-5.5Km/h |
Rate lift capacity |
|
Rate lift capacity |
SWL:325kg |
MWL:375kg | |
Auxiliary hydraulic outlets |
3 or 5 |
Dimensions | |
Overall length |
1752mm (without bucket) |
2206mm (With bucket) | |
Overall width |
1150mm |
Overall height |
1233mm |
Max operating height |
2143mm |

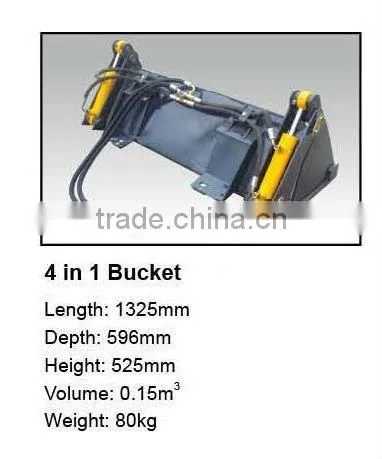

Turning radius with 4-in-1bucket |
1307mm |
Angle of departure |
11 |
Wheel base |
636mm |
Ground clearance |
118mm |
Dump height Std bucket |
1473mm |
Dump reach |
348mm |
Height to hinge pin |
1880mm |
Machine width |
1160mm |
Hydraulic reservoir capacity |
27L |
Machine mass |
920kg |
