Help CenterXD850 Compact Backhoe Loader
Related Products
Specifications
Compact Backhoe Loader1. Load 1.8 ton, 1.0cbm
2. backacter bucket capacity 0.3cbm
3. four-wheel drive, joystick control

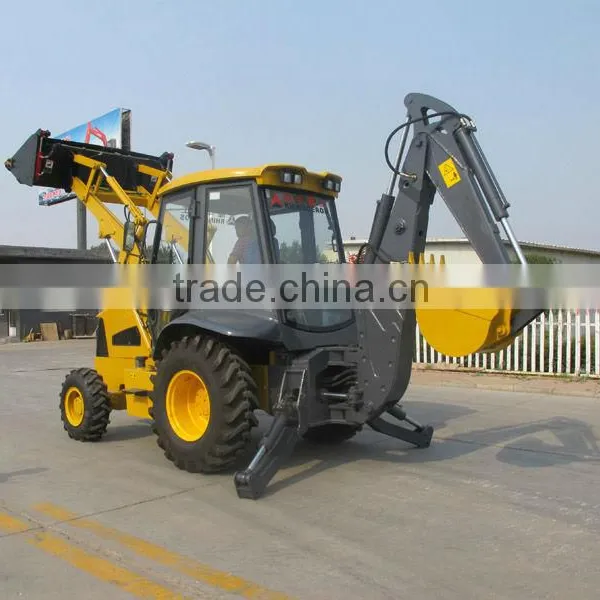

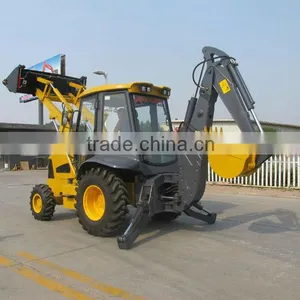

XD850 Compact Backhoe Loader
Main specification:
Engine | |
Model |
CUMMINS / YTO |
Rated power |
60kw/51.5kw/2200rpm |
Transmission system | |
Hydraulic torque converter |
XN280 |
Drive Method |
4x2 / 4x4 |
Number of speed reverse |
2 (high/low speed) |
Speed | |
First forward |
6 km/h/ 12km/h |
Second forward |
14.5 km/h/ 29km/h |
First reverse |
6 km/h/12km/h |
Second reverse |
14.5 km/h/ 29km/h |
Axle | |
Axle type |
Hub reduction axle |
Front axle track |
162 mm |
Rear axel track |
134 mm |
General information |
|
Total weight |
6200 kg |
Overall dimension |
7400x2170x2950 mm |
Turning radius |
5000 mm |
Backhoe volume |
0.2-0.25 cbm |
Loading bucket volume |
0.7-0.8 cbm |
Front wheels (size & ply rating) |
12-16 |
Rear wheels (size & ply rating)) |
15-24 |
Diesel fuel tank |
125 L |
Hydraulic system fluid |
132 L |
General information |
|
Total weight |
6200 kg |
Overall dimension |
7400x2170x2950 mm |
Turning radius |
5000 mm |
Backhoe volume |
0.2-0.25 cbm |
Loading bucket volume |
0.7-0.8 cbm |
Front wheels (size & ply rating) |
12-16 |
Rear wheels (size & ply rating)) |
15-24 |
Diesel fuel tank |
125 L |
Hydraulic system fluid |
132 L |
Operating range |
|
|
Loader |
|
|
A |
Maximum bucket reach |
3850 mm |
B |
Maximum loading height |
3300 mm |
C |
Maximum loader dumped height |
2550 mm |
D |
Dumping distance from bucket to fender |
810 mm |
F |
Maximum transport length |
7400 mm |
G |
Maximum loading depth |
20-25 mm |
H |
Ground clearance |
300 mm |
Backhoe |
|
|
I |
Maximum dumping height |
4250 mm |
J |
Maximum bucket reach |
5250 mm |
L |
Maximum digging depth |
3800 mm |
M |
Maximum digging reach from pivot point |
5250 mm |
N |
Maximum digging reach from rear axle |
5367 mm |
