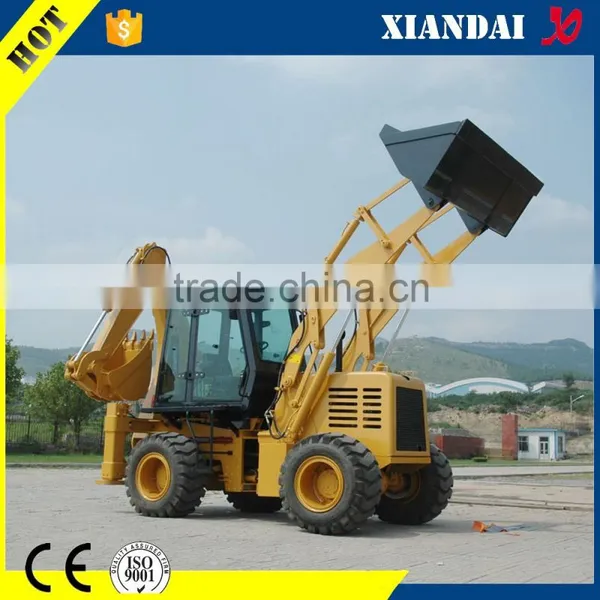

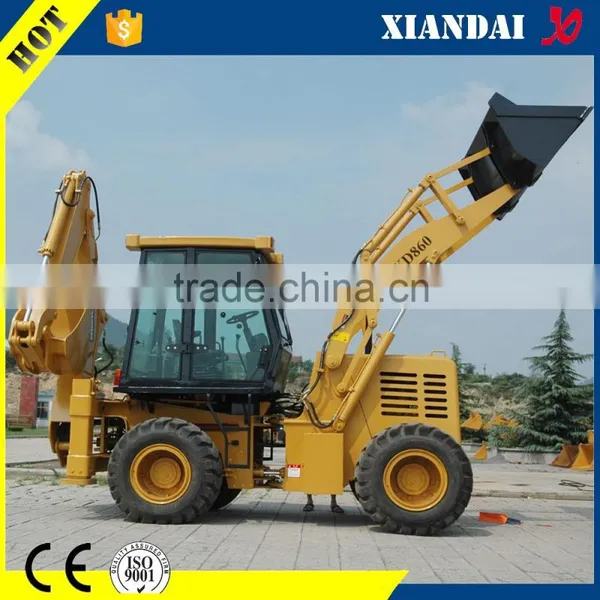

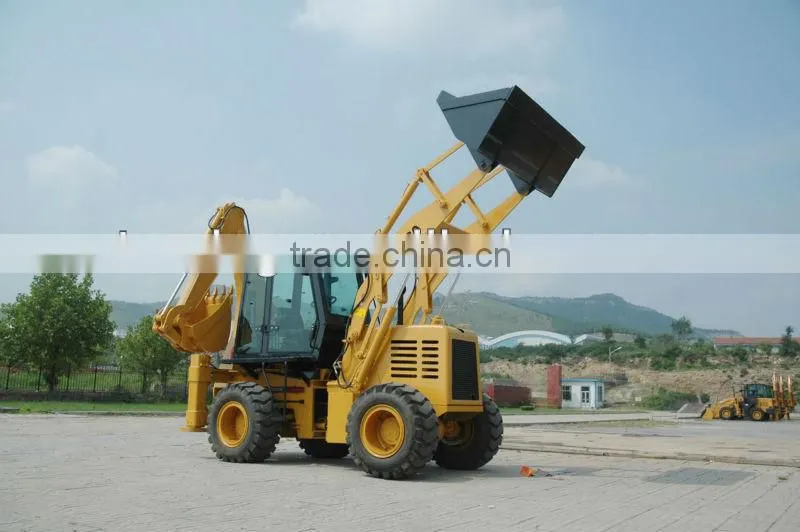

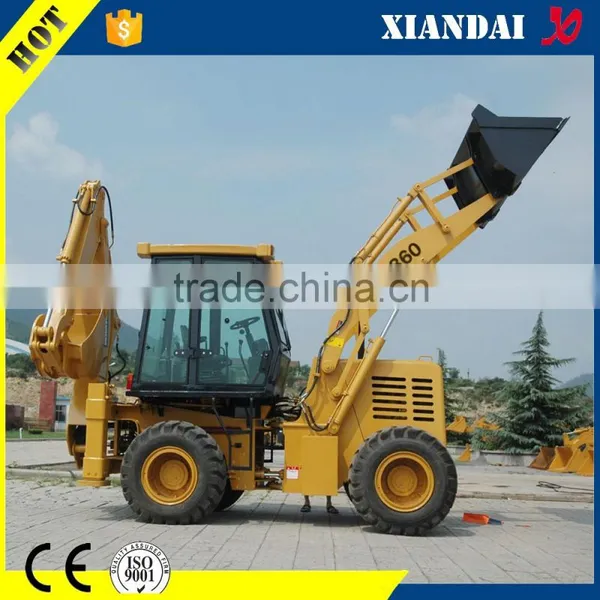

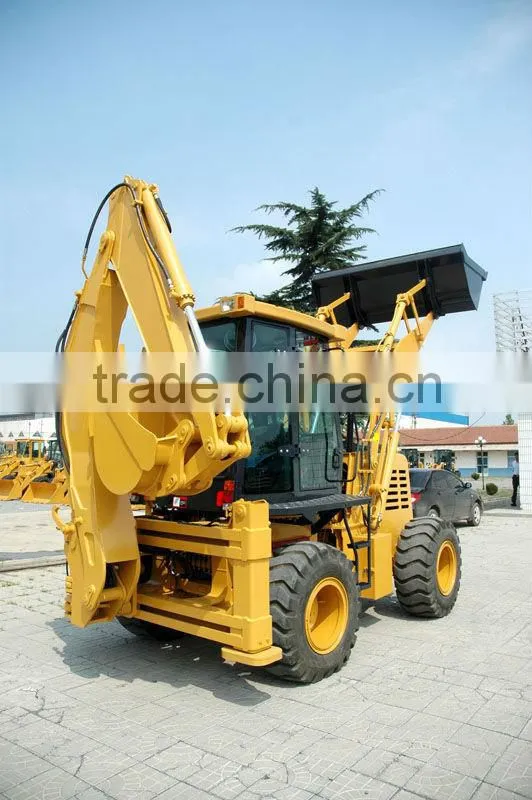

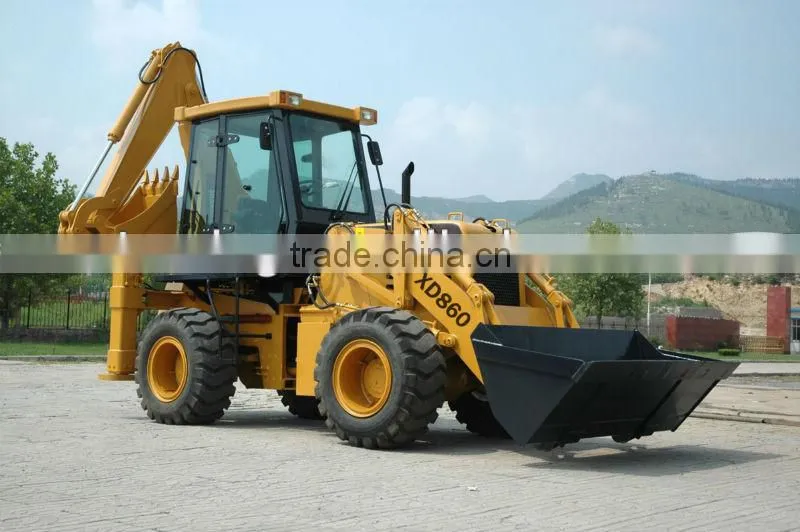

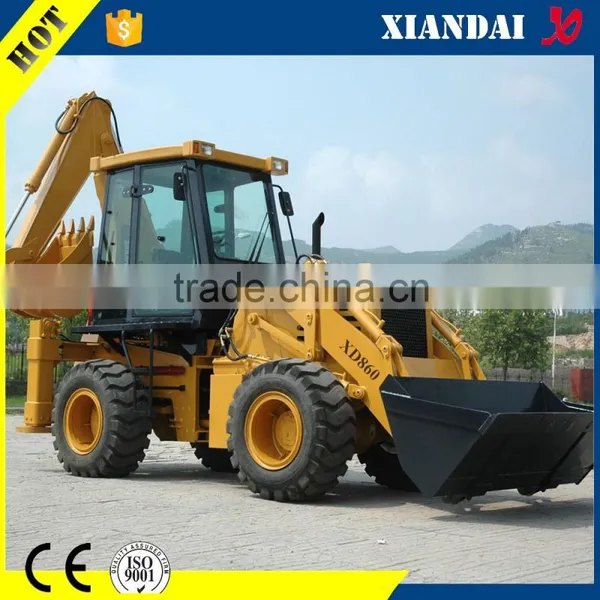

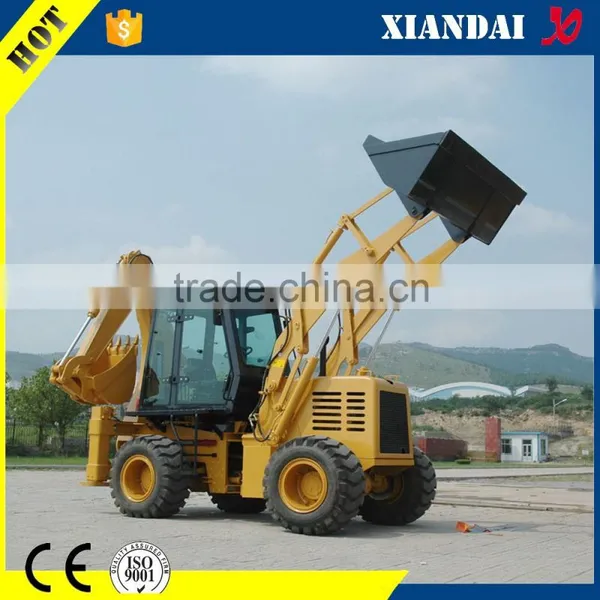

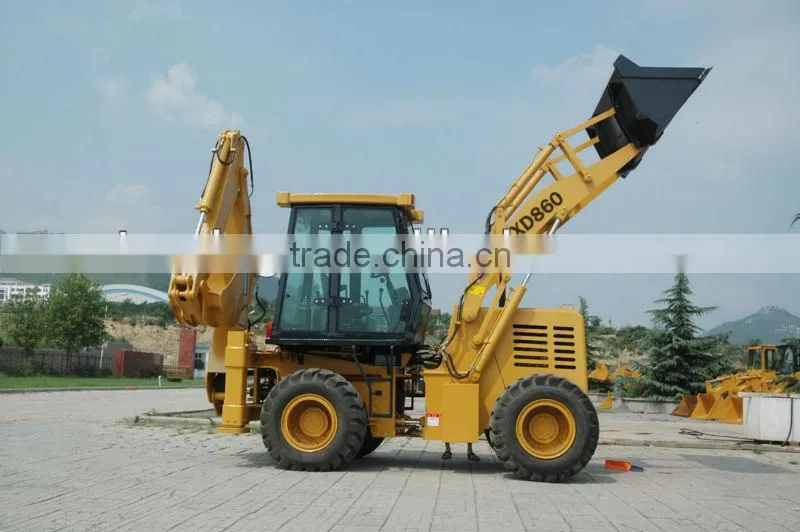

Alibaba express XD860 Articulated backhoe loader for sale made in china

FOB Price

USD $30,000 - $40,000 / Unit

1 Unit(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	BACKHOE LOADER	Use:	FARM	Certification:	CE
Place of Origin:	Shandong, China	Brand Name:	XIANDAI	Model Number:	XD860
Condition:	New	After-sales Service Provided:	Overseas third-party support available

Packaging Details

1 unit one 40HQ container;

Product Description

I.Features&Benifits

1. Central articulated frame, smaller turning radius, mobile and flexible, lateral stability, ease of loading operations in a narrow venue.

2. Loading device appearance with reference to the advanced level in the world , the British company JCB's 3CX structure, mining device form factor reference John Deere 310SE structure, good looks, the cab with a large area of glass, the driver get more comfortable operation.

3.Air over hydraulic caliper disc foot brake system and external beam drum hand brake, safe and reliable braking.

4. The use of hydraulic transmission structure, and improve the reliability of the transmission system.

5.Full hydraulic steering, power shift, work unit hydraulically operated. The machine is easy to operate and flexible, smooth and reliable action.

6. The use of low-voltage wide-based off-road tires, the rear axle swing, has good off-road performance and performance.

7. Capable of lateral slip device excavation, broader digging range and scope.

8. The suspension damping 360 · swivel seat with armrest and seat belts to improve the comfort and safety of the drivers

9.Optional: CUMMINS engine, hammer.

II.Specifications

Overall Operating Weight	7640KG	Final Reducer	Single Stage Final Reducer
Transport Dimension		Rated Loader of Axle	7.5t
LWH (mm)	5910×2268×3760	Transmission System
Wheel base	2250mm	Torque Converter
Min. Ground Clearance	300mm	Model	YJ280
Bucket Capacity	1.0m3	Type	Single-stage Three Elements
Breakout Force	38KN	Max. Efficiency	84.4%
Loading Lifting Capacity	2500KG	Inlet Pressure	0.4Mpa—0.55 Mpa
Bucket Dumping Height	2742mm	Outlet Pressure	1.2Mpa—1.5 Mpa
Bucket Dumping Distance	1062mm	Cooling Method	Oil-cooling Pressure Circulation
Digging Depth	52mm	Gearbox
Backhoe Capacity	0.3 m3	Type	Fixed Shaft Power Transmission
Max. Digging Depth	4082mm	Oil Pressure of Clutch	1373Kpa—1569 Kpa
Swing Angle of Excavator Grab	190o	Gears	Two Gears Ahead, Two Gears Astern
Max. Pulling Force	39KN	Max.Speed	22Km/h
Engine		Tyre
Model	LR4M3-G93	Model	16/70-20
Type	In Line Direct injection Four-Stroke and Injection Combustion Chamber	Pressure of Front wheel	0.22 Mpa
Cylinder-Inside Diameter*Stroke	4-110×120	Pressure of Back Wheel	0.22 Mpa
Rated Power	65KW	Brake System
Rated Speed	2400r/min	Service Brake	Air Over Oil Caliper Brake
Min. Fuel Consumption	≤216g/km.h		External Type
Max.Torque	≥261.7N.M/1800r/min		Self-regulation
Displacement	4.4L		Self-balance
Steering System		Emergency Brake	Operation Power Implementing brake
Model of Steering Device	BZZ5-250	Emergency Brake	Manual Operation Power Terminating Brake
Steering Angle	±36 o	Hydraulic System
Min. turning radius	5018mm	Digging Power of Excavator Grab	46.5KN
Pressure of the system	12Mpa	Digging Power of Dipper	31KN
Axle		Bucket Lifting Time	5.4S
Manufacturer	Feicheng Axle Factory	Bucket Lowering Time	3.1S
Main Transmission Type	Double Reduction	Bucket Discharge Time	2.0S
The parameters are subject to change without notice

Payment terms & Delivery time &Guarantee time

1.Payment Terms:By TT. 30% deposit paid in advance, 70% balance paid before goods dispatching from the factory;

2.Delivery Time:within 20 days after receiving deposit;

3.Guarantee Time:one year or 1500 working hours which comes first after the date of B/L;

4.Shipping : 1 unit one 40HQ container;

Company Profile

Taian Modern Heavy Industries Technology Co., Ltd.

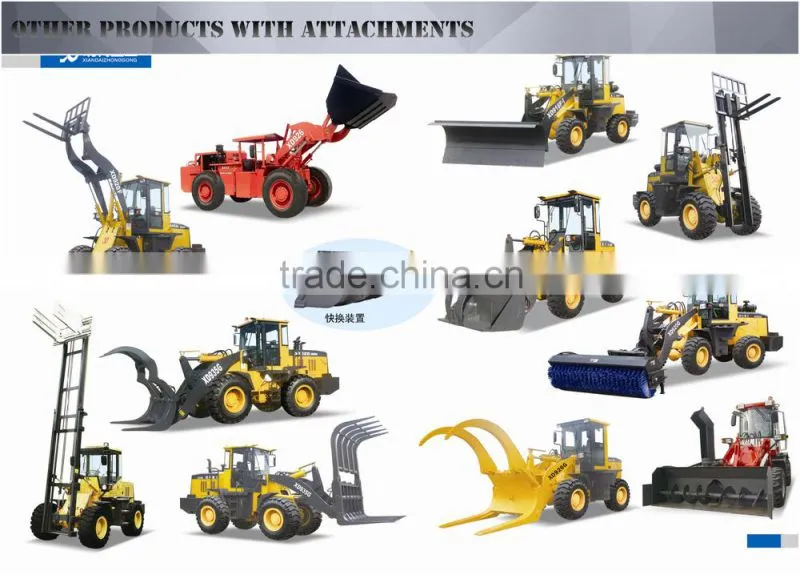

Taian Modern Heavy Industries Technology Co., Ltd is a corporation that focuses on wheel loader and skid steer loader in terms of research and development, manufacture and sales since 1998. With years of development, the company has got two factory areas with 200,000 squere meters, more than 60 untis processing equipment and 150 professional workers. Our company has expanded industrial scale of producing many kinds of products and annual output has reached about 3000 sets, among 300 units were sold to Brazil, Vietnam, Latvia, Turkey, Australia, Newzealand, Norway, Russia, Sudan etc. We adopt China famous brand YUCHAI,WEICHAI, XICHAI, YTO engine, also HYUNDAI, BRIGGS&STRATTON, CUMMINS, DEUTZ and PERKINS worldwide famous engine to meet various requirements from various markets. According to customers actual requirement, the company can develop scores of types of products such as high-dump loader, ultra-low loader for tunnel, wood grabber, grass grabber, fork loader and off-road loader etc. Regarding science and technology as the leading factor, the company performs advanced quality-monitoring framework of production step by step, perfect meshwork of marketing, its production capacity has increased year by year. The company obtained ISO9001:2008 certificate ,wheel loader and skid steer loader got Europe CE certificate, CE noise certificate and Rops&Fops cabin certificate.
We will perform modern products of high quality by taking the technological faith, then consummate service system and cooperate with spacious customer genuinely to try for mutual development.
