supply XD850 mini backhoe loader for sale made in china backhoe loader 3cx
- 300 Unit / Units per Month
- Qingdao or other main ports
- T/T
- XD850 backhoe loader for sale made in china backhoe loader 3cx 7ton
- Alibaba express XD860 4wd Articulated small backhoe loader for sale made in china with ce
- Alibaba express XD860 Articulated tracter backhoe loader for sale made in china cheap loader
- Alibaba express XD860 Articulated backhoe loader for sale made in china
- Alibaba express XD860 Articulated backhoe loader for sale made in china
- XD850 cheap backhoe loader for sale made in china backhoe loader 3cx
Product Details
Condition: | New | Brand Name: | XIANDAI | Model Number: | XD850 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 7400*2170*2950mm | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Overseas third-party support available |
Packaging Details
2 units/40HQ container
Product Description
I.Features&Benefits
1. It has low fuel consumption, low noise and strong power characteristics by using ORIGINAL CUMMINS ENGINE B3.3 (60kw), more efficient and economical, the emission can meet to EURO 3 standard.
2. Adopting main pump PERMCO brand -high quality, long service.
3. JEIL Pilot joystick handler-imported from South Korea, ensure the accuracy and flexibility of each movement.
4. International famous brand front and rear axles same to CARRARO helps steer easily, and the wet brake guarantee the driving and security easily. Efficient hydraulic torque converter provides
ease and great comfort of operation.
5. The super cab is designed with principle of ergonomics to provide the operator a low-noise environment, and possesses fine shock absorption.

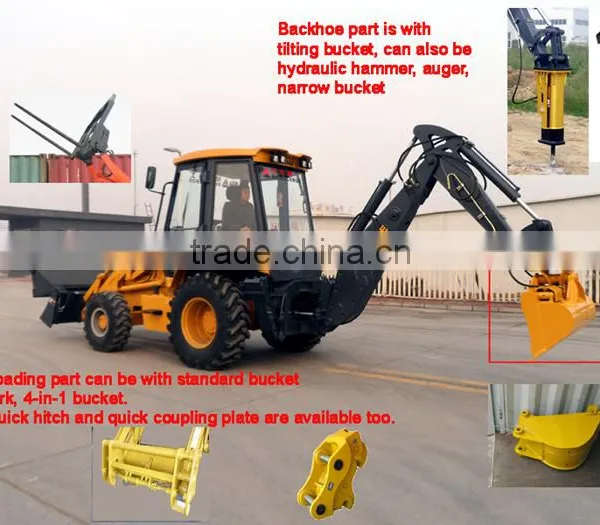

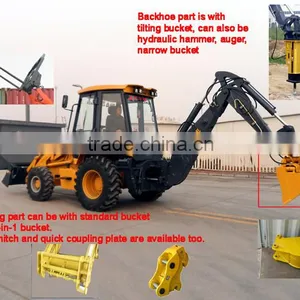

6. Hydraulic accessories option: 4-in- 1 bucket, quick coupling plate, driller, forklift, quick hitch,
hydraulic hammer, narrow bucket, tilting bucket.
II.Specifications
General information |
|
Total weight | 7000 kg |
Overall dimension | 7400x2170x2950 mm |
Turning radius | 3500 mm |
Backhoe bucket capacity | 0.2-0.3 cbm |
Loading bucket capacity | 1.0 cbm |
Engine
| |
Model | Imported CUMMINS (B3.3) |
No. of cylinders, type | 4 cylinders in line, Turbo-charged. water cooled |
Bore and stroke | 102x120 (mm) |
Displacement | 3.261L |
Rated power/rotating speed | 60 kw / 2200rpm |
Transmission system | |
Hydraulic torque converter | XN280 |
Drive Method (2 x 4 or 4 x 4) | 4x2 / 4x4 |
Speed | |
First forward | 6 km/h / 12km/h |
Second forward | 14.5 km/h / 29km/h |
First reverse | 6 km/h /12km/h |
Second reverse | 14.5 km/h / 29km/h |
Axle | |
Axle type | Hub reduction axle |
Front axle track | 1620 mm |
Rear axel track | 1340 mm |
Hydraulic system |
|
Hydraulic Motor | PERMCO imported from America |
Model | 3020 |
Flow rate | 80 L/min |
Working pressure | 22.5 Mpa |
Pilot joystick handler | JEIL brand (import from south korea) |
Multitandem valve | RUILONG brand |
Pilot pump | SKS |
Electrical system |
|
Voltage | 12 V |
Alternator capacity | 4 kw |
Battery capacity | 210 Ah |
Front wheels (size & ply rating) | 21.5-16 |
Rear wheels (size & ply rating) | 15-24 |
Diesel fuel tank | 125 L |
Hydraulic system fluid | 132 L |
Backhoe part |
|
Backhoe bucket width | 560 mm |
Backhoe bucket weight | 185 kg |
Maximum outrigger width (extended) | 2900 mm |
Minimum outrigger width (transport) | 2020 mm |
Loader part |
|
Bucket width | 2030 mm |
Bucket weight | 350 kg |
Operating range |
| |
Loader |
| |
A | Maximum bucket reach | 3850 mm |
B | Maximum loading height | 3300 mm |
C | Maximum loader dumped height | 2550 mm |
D | Dumping distance from bucket to fender | 810 mm |
E | Wheelbase | 2110 mm |
F | Maximum transport length | 7400 mm |
G | Maximum digging depth | 20-25 mm |
H | Ground clearance | 300 mm |
Backhoe |
| |
I | Maximum dumping height | 4350 mm |
J | Maximum bucket reach | 5350 mm |
L | Maximum digging depth | 4010 mm |
M | Maximum digging reach from pivot point | 5350 mm |
N | Maximum digging reach from rear axle | 5467 mm |
O | Travel height | 3300 mm |
P | Height to top of cab | 2950 mm |
Q | Width | 2170 mm |
III.Payment terms & Delivery time &GUarantee time
1.Payment Terms : By TT .30% deposit paid in advance, 70% balance paid before goods dispatching from the factory;
2.Delivery Time : within 35 days after receiving deposit;
3.Guarantee Time: one year or 1500 working hours which comes first after the date of B/L;
4.Shipping : 2 units one 40HQ container;
Company Profile
Taian Modern Heavy Industries Technology Co., Ltd is a corporation that focuses on wheel loader and skid steer loader in terms of research and development, manufacture and sales since 1998. With years of development, the company has got two factory areas with 200,000 squere meters, more than 60 untis processing equipment and 150 professional workers. Our company has expanded industrial scale of producing many kinds of products and annual output has reached about 3000 sets, among 300 units were sold to Brazil, Vietnam, Latvia, Turkey, Australia, Newzealand, Norway, Russia, Sudan etc. We adopt China famous brand YUCHAI,WEICHAI, XICHAI, YTO engine, also HYUNDAI, BRIGGS&STRATTON, CUMMINS, DEUTZ and PERKINS worldwide famous engine to meet various requirements from various markets. According to customers actual requirement, the company can develop scores of types of products such as high-dump loader, ultra-low loader for tunnel, wood grabber, grass grabber, fork loader and off-road loader etc. Regarding science and technology as the leading factor, the company performs advanced quality-monitoring framework of production step by step, perfect meshwork of marketing, its production capacity has increased year by year. The company obtained ISO9001:2008 certificate ,wheel loader and skid steer loader got Europe CE certificate, CE noise certificate and Rops&Fops cabin certificate.
We will perform modern products of high quality by taking the technological faith, then consummate service system and cooperate with spacious customer genuinely to try for mutual development.
