First of all, our products are custom based.
Specifications
Ceramic Band Heaters
1. Ceramic insulation
2. Cr20Ni80 wire,SS304
3. ISO9001, CE, RoH

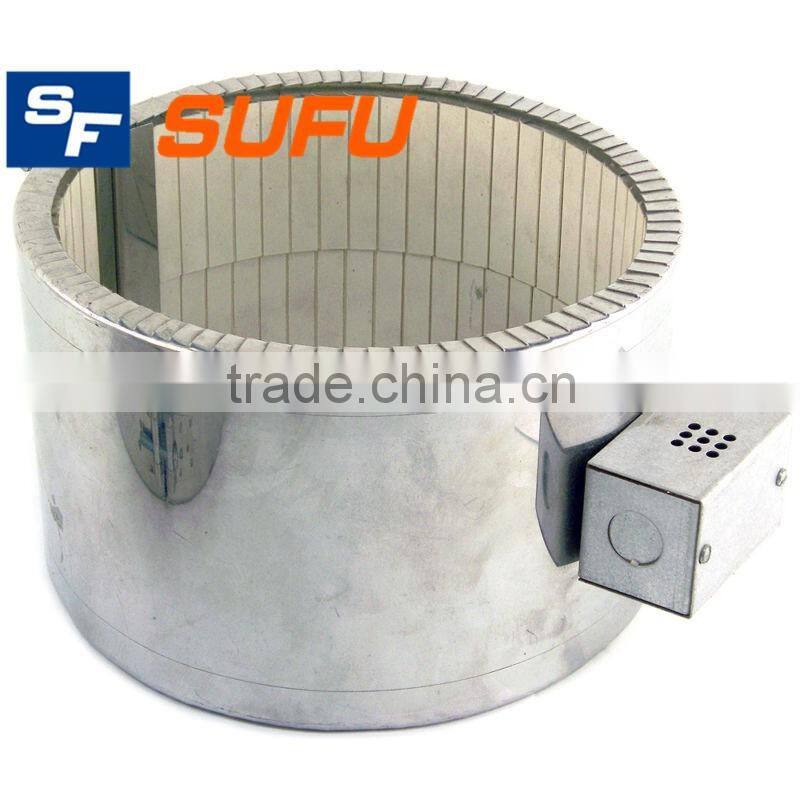

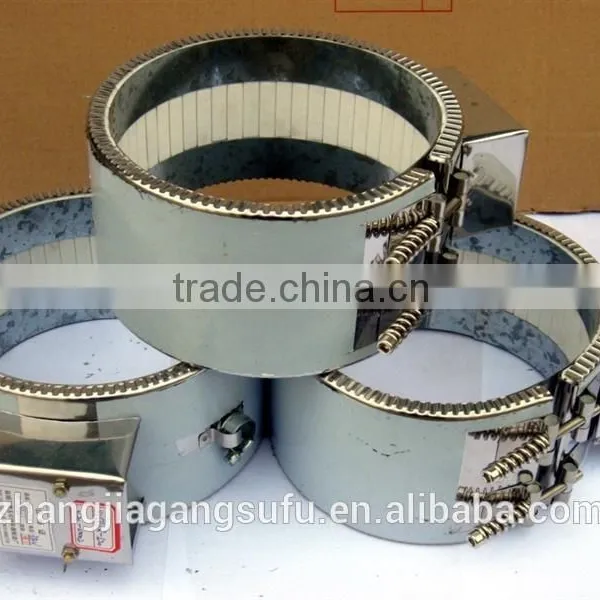

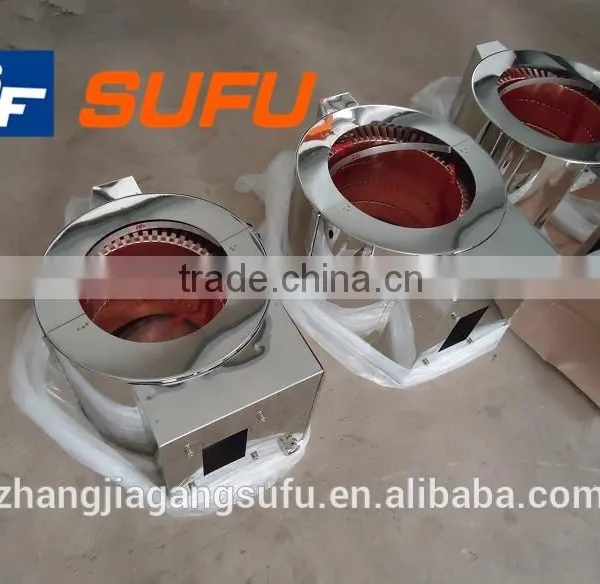

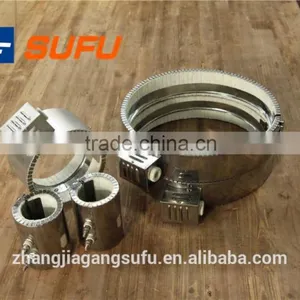

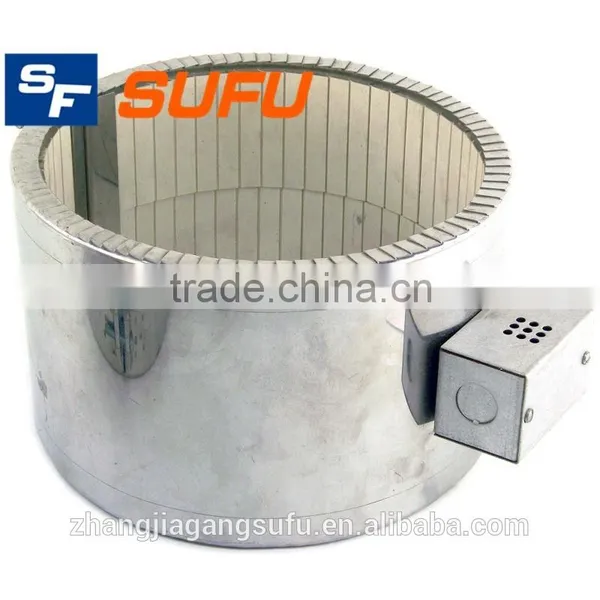

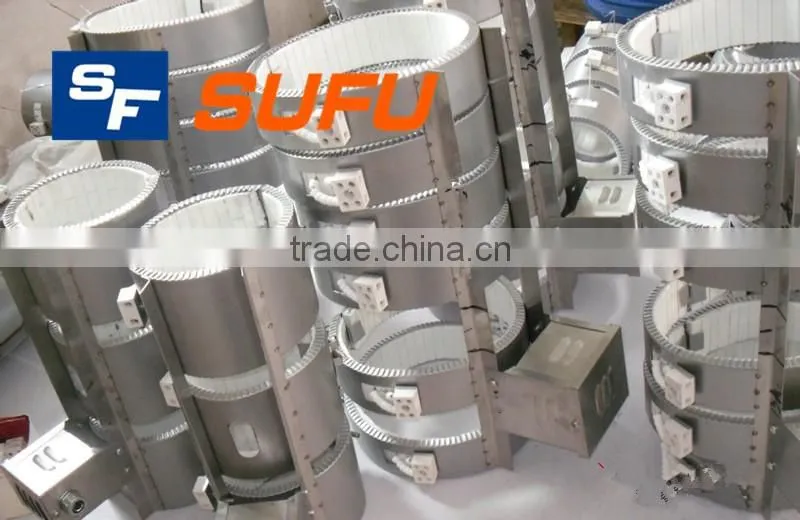

Description: Ceramic Band Heaters
Mainly used for extrusion,casting and down-stroke machines.The operating temperature can reach up to 600 degree C.The maximum surface loading rate is 8 w/ cm2. its adcantages include fast speed of heating , high rate of heat utilization ,excellent energy saving(energy consumption is reduced by 30%),high resistance of high insulation rate.It is one of the most suitable:electric heaters for plastic extrusion and injection machines,plastic hollow and blowing machines and chemical fibre moulding machines.
Application Cases
1.Plastic injection moulding machine
2.Hollow shaping machine/Blow-molding machine
3.Extrusion machine/Co-extrusion line
4.Raw material processing equipment
5.Pelletizing equipment
6.Granular machine
7.All types of plastics processing machines
| Model | Dimension(mm) | Voltage(v) | Power(w) |
| Φ125*51 | 125*51 | 230 | 500 |
| Φ 105*66 | 105*66 | 230 | 800 |
| Φ 185*51 | 185*51 | 230 | 1100 |
| Φ 190*85 | 190*85 | 230 | 1500 |
| Φ 220*75 | 220*75 | 230 | 1700 |
| Φ 180*90 | 180*90 | 230 | 1700 |
| Key Technical Indexes |
|
1.Use condition:environment temperature -20~+60 degree C,relative temperature<80% 2.Leakage current:<0.5MA 3.Insulation resistance:>=5M 4.Ground resistance:<0.1 5.Voltage resistance:no electric breakdown for 1 minute under 1500v 6.Temperature endurance:500-800 degree C 7.Power deviation:+5%-10% |
Packaging:ceramic heater in plywood case outside if needed.
Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.
Other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
Order Guide
Please specify the following when ordering.
- The inner diameter (mm) and length (mm) of heaters
- Thickness of heaters
- Terminal length (max & min) and the distance of terminal length
- The diameter, length of cooling tubes and the distance between them.
- Voltage and power density
- Gap of two pieces if applicable
- Wiring type and position
- Whether need air blowers
- Content of the stamping if needed
- Order quantity
- Delivery date

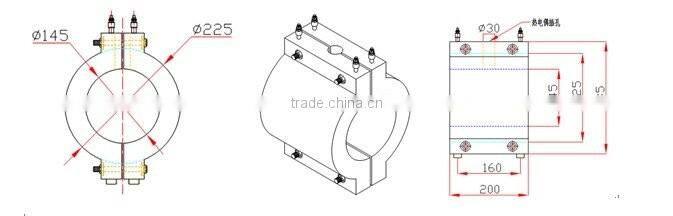

* It’s better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal
