Specifications
1.aluminum alloy comb heater
2.10 years factory
3. 2 years warranty
4.CE TUV ROHS Certificate
5.aluminum panel heating

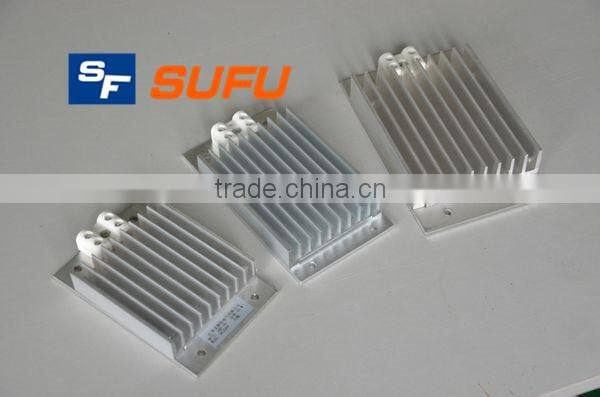

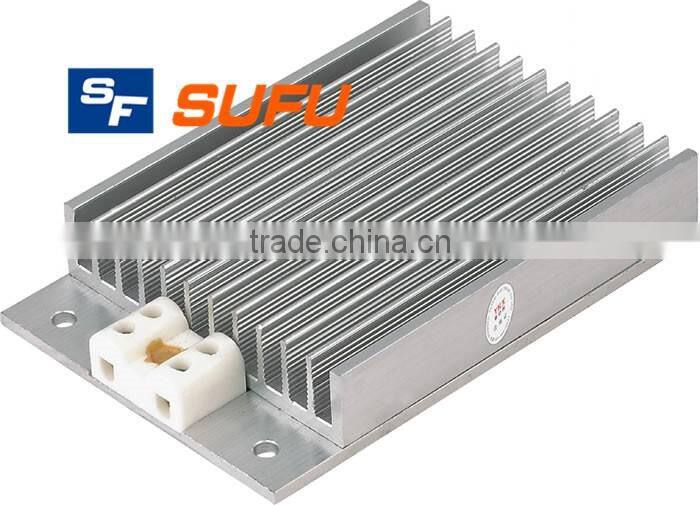

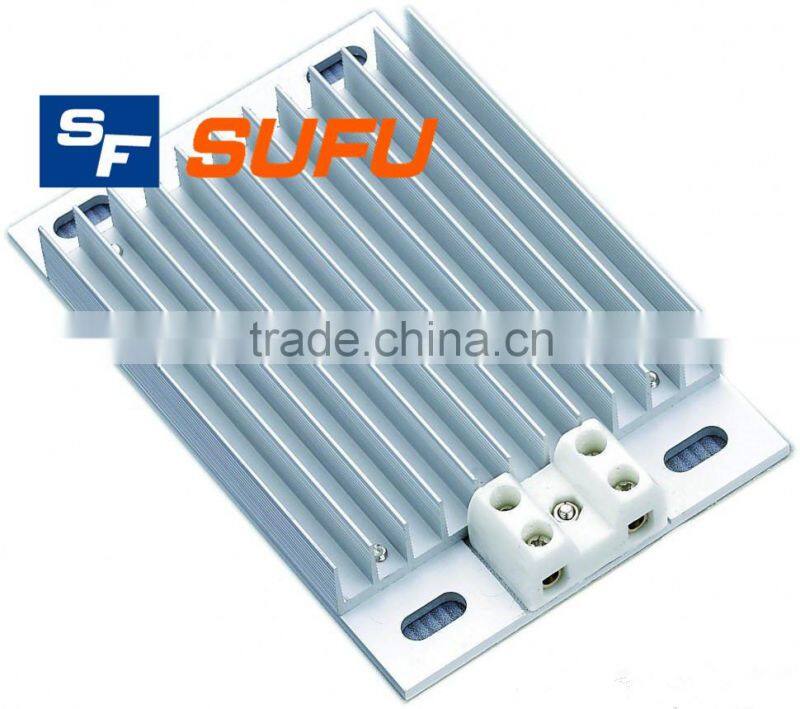

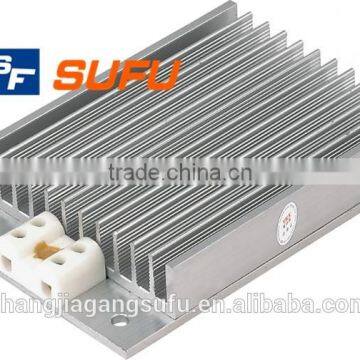

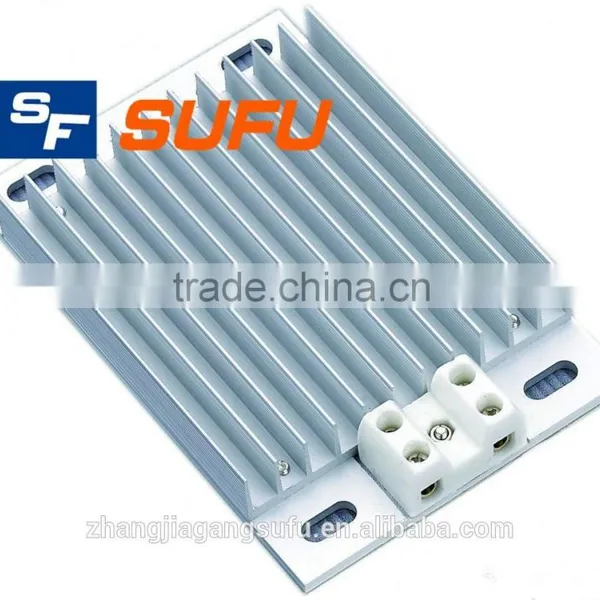

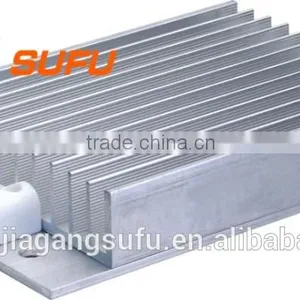

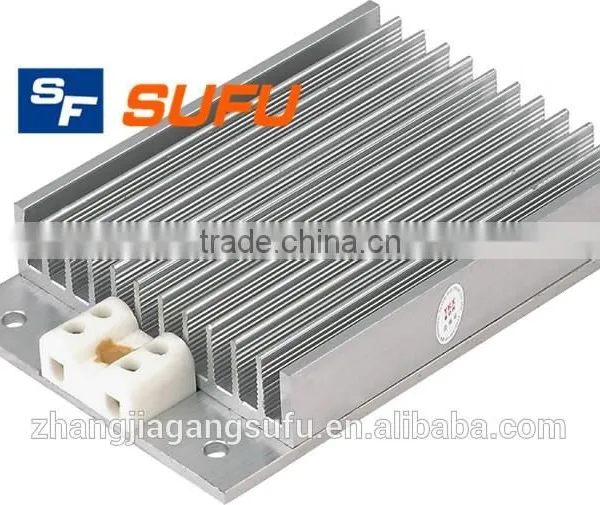

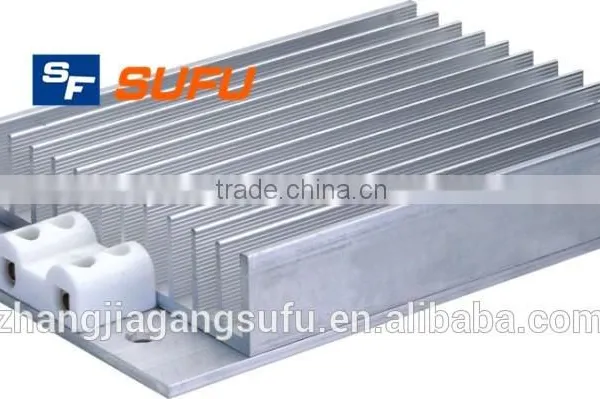

50-500W 220V electric cabinet DJR ohmic industrial aluminum alloy comb heating/heater
1.newest 50-500W design DJR ohmic heater
2. 10 years factory
3. 2 years warranty
4.CE TUV ROHS Certificate
5. aluminum panel heater
6.Type DJR aluminum alloy pectination heater is a new heater design for electrical equipment damprof.
Type DJR aluminum alloy pectination heater is a new heater design for electrical equipment damprof.This heater is composed of alwninum alloy cooling plant and good quality of alloy heating wire.There have five characters small cubage beautiful apprence thermolysis uniformity and larger cubage of thermolysis that assure the heating wire can use more time than the common heater can work credibility.
Features:
The heater use 6063-T5 Aluminum Alloy extrusions for the conduction cooling body, its internal heater using Qualitied Ni80Cr20 nickel-chromium alloy.
The product has small size, light weight, heat dissipation area and long life, the Wiring Terminal device is safe, reliable, not easy to damage.
Specifications:
Model |
Power (V) |
Heat Watt(W) |
Dimension(mm) |
Heating Element Lengh(mm) |
Hole Distant(mm) |
Installtion Hole Size (mm) |
DJR-50 |
220/110 |
50 |
132*85*23 |
90 |
55 |
6.3 |
DJR-75 |
220/110 |
75 |
132*85*23 |
90 |
55 |
6.3 |
DJR-100 |
220/110 |
100 |
163*100*28 |
120 |
55 |
6.5 |
DJR-150 |
220/110 |
150 |
163*100*28 |
120 |
55 |
6.5 |
DJR-200 |
220/110 |
200 |
163*100*28 |
120 |
55 |
6.5 |
DJR-200 |
220/110 |
200 |
205*100*28 |
160 |
55 |
6.5 |
DJR-300 |
220/110 |
300 |
205*100*28 |
160 |
55 |
6.5 |
DJR-500 |
220/110 |
500 |
205*100*28 |
160 |
55 |
6.5 |
Voltage:AC/DC 55V 110V 220V 380V
Heating power: 50W 75W 100W 150W 200W 500W
Insulation resistance:more than 100M
Withstand voltage test:more than 2000V/min

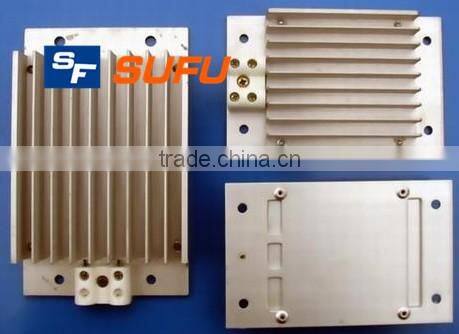

Mounting bracket:S type,L type
Packaging:ceramic heater in plywood case outside if needed.
Shipment:1.small quantity by DHL,FEDEX 2.Bulk goods by Sea Freight.
Other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
1.What material do you fabricate?
Stainless steel plate, automotive special steel and cold plate, aluminum plate, galvanized sheet, hot plate, shape steel etc.
2.What Material do you weld?
We weld stainless steel ,aluminum ,galvanized steel,mild steel,and mild steel sheet metal.We also have the expertise and capacity to weld heavy stainless structure steel frames and cylinders.
3.What material thickness can you work with for Laser Cut Custom Reasonable Price Non-standard Sheet Metal Processing?
We have the in-house facility to shear,punch and bend up to 1/4'' thick carbon steel.We can saw structural steel and shapes up to 12''.
4.Do you manufacturer one-of a kind for Laser Cut Custom Reasonable Price Non-standard Sheet Metal Processing?
Yes,most definitely.If you need a part manufactured to your own specific design or would like help with design prototyping and manufacturing engineering we have the experienced staff and equipment to bring your ideas to life.OEM service offered and small orders allowed.
5.Which type of industries do you sercice for?
The short answer is anyone that requires cost effective,quality precision sheet metal and welded,laser cutting products.
We product sheet metal parts and welded products to the electronics,computer,automotive,medical,fabric,as well as all branches of the military.
6.What is your lea-time for Laser Cut Custom Reasonable Price Non-standard Sheet Metal Processing?
With our design,fabrication and manufacturing skills and experience,we can efficiently exceed your expectations and meet the time frame required.And we guarantee that the quality and service never compromised.
7.Can you arrange the Transport for Laser Cut Custom Reasonable Price Non-standard Sheet Metal Processing?
With pleasure.
8.What finishe can you provide for Laser Cut Custom Reasonable Price Non-standard Sheet Metal Processing?
We can provide powder coated finishes, baked enamel, normal wet process painted finishes, anodized finishes and all common plated finishes. We also provide mirror finish, #4 polish and 2B finishes on our stainless steel jobs. Steel and aluminum can be grained to meet your requirements. We also use bead blasting, sand blasting and tumbling to provide special finishes.
9.What is the best way to contact you?
Wechat: 17751260065
Send an inquiry here directly
Our normal office hours are Monday to saturday 7:45am -- 17:45pm
