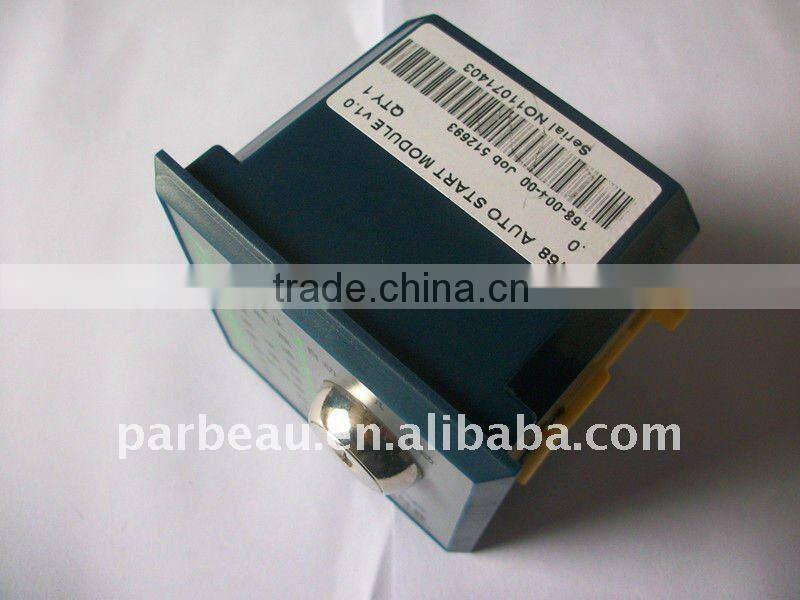

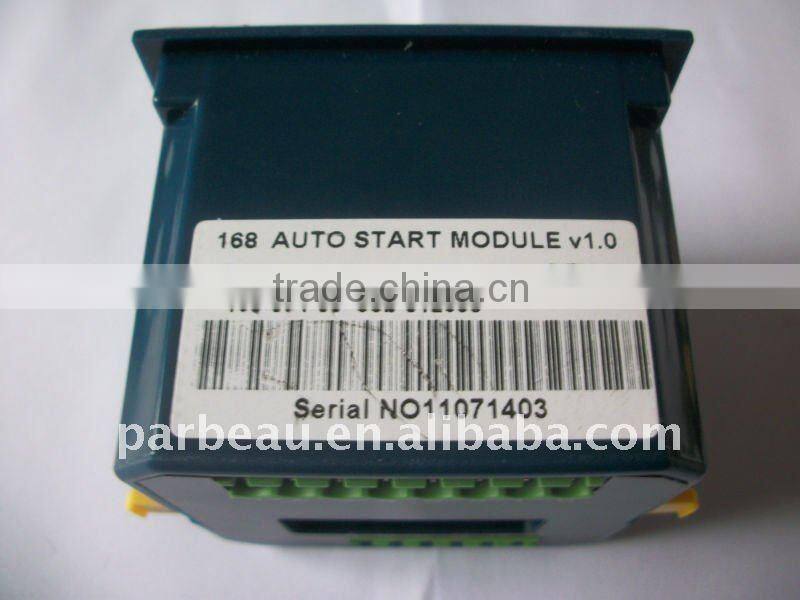

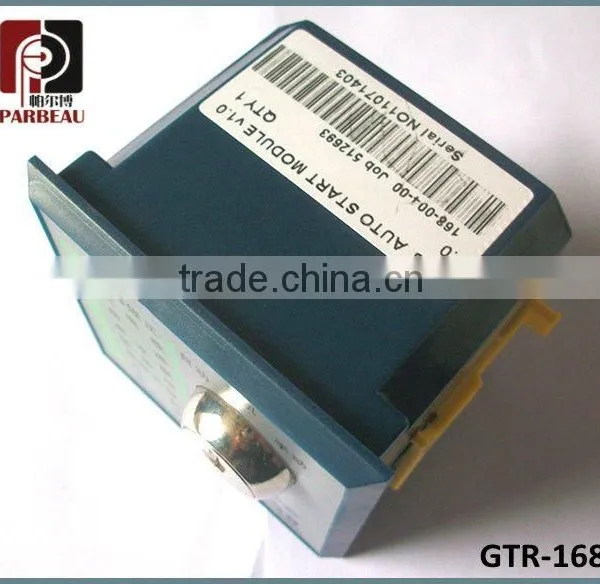

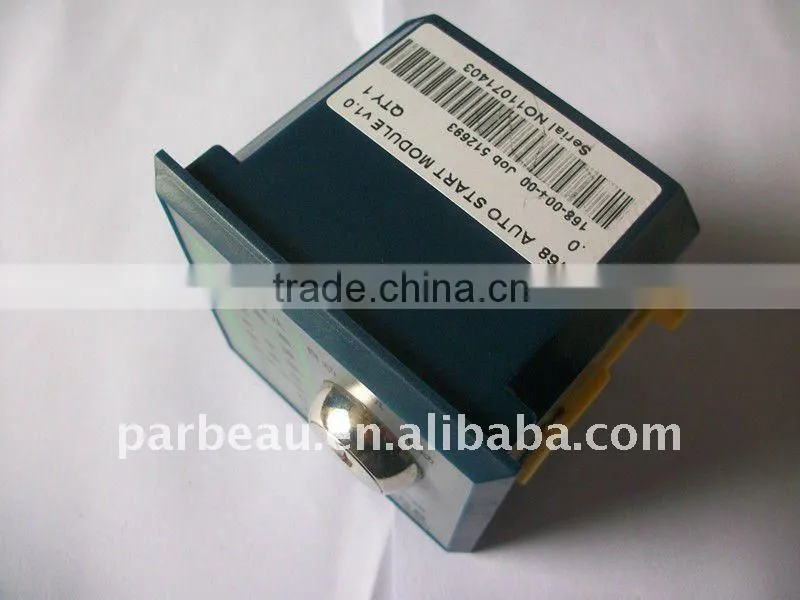

Genset Control Panel 168
The module GTR-168 is a low cost Generator controller equipped with Auto Start/Stop functions, protections, alarm and annunciation etc. Monitoring and protections include: Running, Over Speed, High Water Temperature, Low Oil Pressure, Over Crank, Emergency Stop, and Low Battery. All outputs function executed by a set of traditional relays which make it possible to support heavy power handling capability. It is designed to control engine by a key switch. User only needs to switch the key to the Manual position then the system will carry out whole functions according your settings. Besides, the GTR168 applied with a high security continental terminal connector that provides easy plug-in and removal.

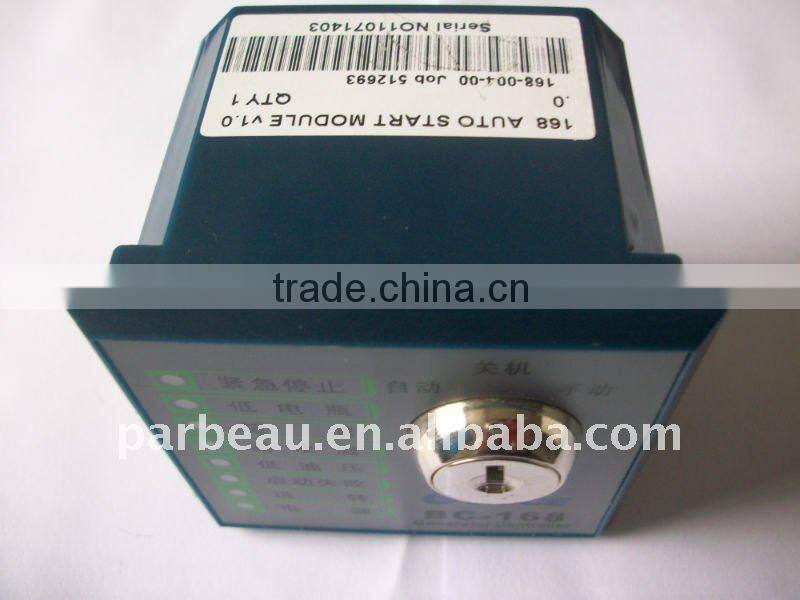

Panel:
1.LED
Emergency Shutdown
Low Battery Warning
Over Speed Shutdown
High Coolnat Temp Shutdown
Low Oil Presssure Shutdown
Fail To Start
Running
Power
2.Key Switch
OFF: Stop running engine / Reset Alarm.
ATS: Auto Start function by detected ATS terminal l2.
MANUAL: Manual start engine
Protections and Parameters:
Auxiliary shutdown protection: 1 Sec,N.C
Low battery warning: 5sec,10.5 / 21 VDC
Over speed protection: 2sec, 55/66 Hz
High water temp. protection: 2 sec, N.O
Low oil press. Protection:2 sec, N.C/N.O
Over crank: 3 attempts
Cranking speed up limited: 0.5sec 16 Hz
Protection hold-off timer: 5 sec
Specifications:
DC Supply |
DC 8-36V |
Power Consumption |
MAX 5 W |
Measuring Frequency |
0-80 Hz(AC Volt: 25 V - 300 V |
Relay Output |
Start Output: 2 A |
Valve Output: 2 A | |
Idle/Pre-heat Output: 2 A | |
Alarm Output: 2 A | |
Stop Output: 2 A | |
Dimension(W*H*D) |
72mm*72mm*58mm |
Panel Cut-Out(W*H) |
68mm*68mm |
Ambient Temperature Range |
-10°C - 85°C |
Weight |
200g |
Package
MOQ |
10PCS |
Warranty |
1 year |
Delivery |
3days after we get deposit |
Payment Term |
TT/Paypal//west union |
Brand Name |
Parbeau |
Place of Origin |
China Mainland |
FOB PORT |
Shenzhen/Fuzhou/Xiamen |
Express |
FEDEX/UPS/DHL |
*******************************************************************
