Generator Voltage Regulator AVC63-4
US$ 80 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Parbeau
Model Number:
AVC63-4
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou/Shenzhen/Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Popular Diesel Generator Part AVR 8A UniversalUS$ 20 - 25MOQ: 5 Pieces -
Generator Parts SupplierUS$ 42 - 50MOQ: 5 Pieces
-
Brush Voltage Regulator GB100US$ 20 - 50MOQ: 5 Pieces
-
Factory Direct Sales,Universal Brush Generator AVR STL-F-3US$ 28 - 35MOQ: 5 Pieces
-
Universal Motor PartsUS$ 20 - 40MOQ: 5 Pieces
Place of Origin
Fujian, China
Brand Name
Parbeau
Model Number
AVC63-4
Specifications
Generator Voltage Regulator,patible with Basler AVC63-4
2.Self Exicited
3.brushless
4.delivery within 2 days
Generator Voltage Regulator AVC63-4
Basler AVC63-4 1 phase 2 wire
is self excited brushless AVR compatible with 10-300kw generator .
| Voltage | 190-240VAC |
| Frenquency | 50/60Hz,Jumper selectable |
| Voltage | Max 73VDC@220VAC input |
| Current | Continuous 3.5A , intermittent 7A for 10 secs(52/105VDC) |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% WITH 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±10% with 2k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 54-61Hz |
| 50Hz system presets knee point at 45-51Hz | |

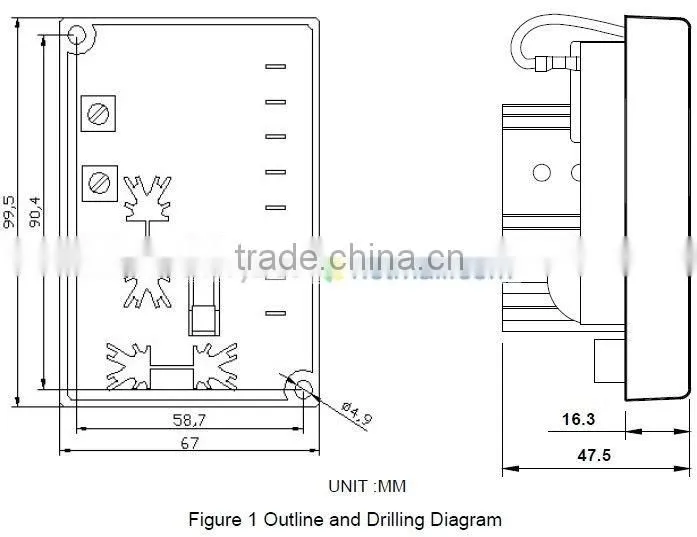

| Dimensions | 99.5mml*67mmW*47.5mmH |
| Weight | 250g±2% |
Wiring Diagram:

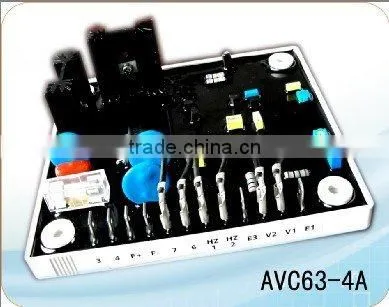

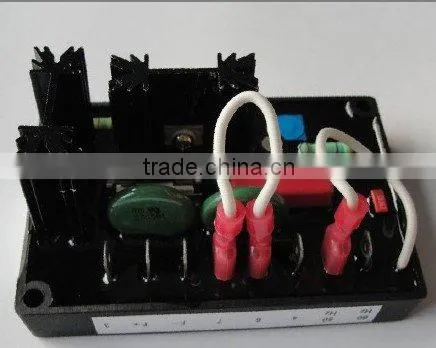

Picture:
Package:
Other Basler AVR
Our Products as follow:
Stamford AVR:MX341,MX321,SX440,SX460,AS440
Leroy Somer AVR:R230,R438,R448,R449
Marathon AVR:SE350
Siemens/Basler AVR:AVC63-7/7F,AVC63-7-1A,AVC63-7FS
Universal AVR:GAVR-8A,GAVR-12A,GAVR-15A
Brush Type AVR:GB100,GB120,GB130B,GB160/170,GB160C/170C
Others:EA05A,KXT-2WC,KXT-2WC1B
Deep sea controller:DSE5110,5120,501k,GTR-168
Cummins engine governor:ESD5500E,ESD5111,EFC3044196
Cummins Actuator:3408324,3408326,ADC225
