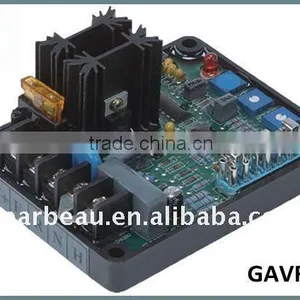

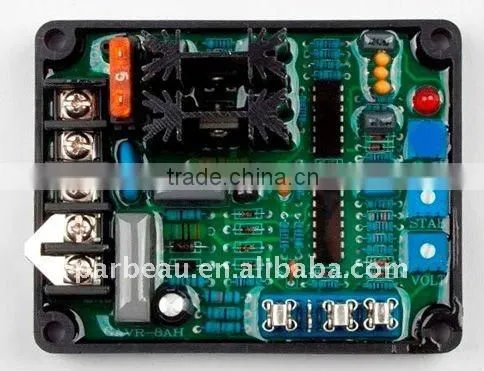

Voltage Protector GAVR-8A

Specifications

Voltage Protector GAVR-8A
1.for <50kw generator
2excitation system avr
3.OEM Service is available

Voltage Protector GAVR-8A



Universal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr





Features

• Voltage Regulation < ±1%
• 220/440VAC Programmable Input
• Rugged Compact Desigh
• Soft Start Voltage Ramping
• With Under Frequency Roll Off Protection
• EMI Suppression
• Built-in High Capacity 8Amp Fuse



Sensing input Voltage	110/220/400VAC , 1 phase 2 wire
Power Input voltage	100-260VAC , 1 phase 2 wire
Output voltage	max 90 VDC at 240VAC input
Current	Continuous 3 A , intermittent 5A for 10secs
Resistance	Min.15 ohm , Max 100ohm
Voltage Build-up	residual voltage at avr terminal >5VAC
Voltage Regulation	<±1% with 4% engine governing
Operating Temperature	(-40°C to +60°C
Storage Temperatue	(-65°C to +85°C
External Volts Adjutment	±7% with 1k ohm 1 watt trimmer
EMI Suppression	Internal electromagnetic interference filtering
Unit Power Dissipation	Max.8 watt
Under Frequency Protection	60Hz system presets knee point at 55Hz
	50Hz system presets knee point at 45Hz
Dimensions	107mmL*82mmW*50mmH









 Universal Brushless AVR Series







Package



*********************************************************************************

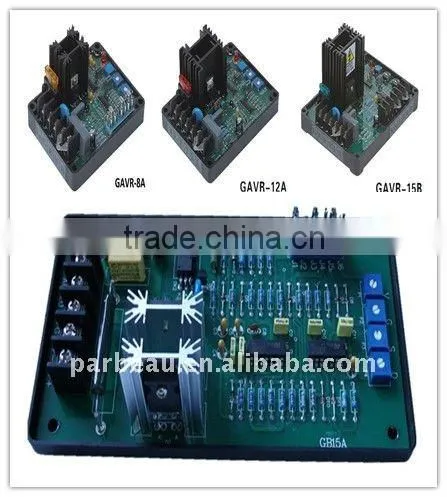

Other Univesal AVR

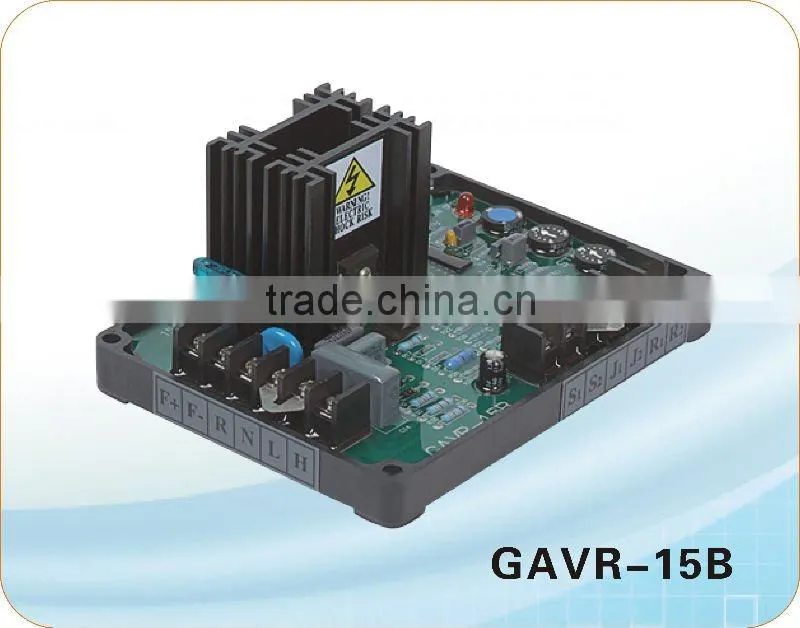

GAVR-12A       GAVR-15A





*********************************************************************************

Our Products as follow:

• Stamford AVR:MX341,MX321,SX440,SX460,AS440
• Leroy Somer AVR:R230,R438,R448,R449
• Marathon AVR:SE350
• Siemens/Basler AVR:AVC63-7/7F,AVC63-7-1A,AVC63-7FS
• Universal AVR:GAVR-8A,GAVR-12A,GAVR-15A
• Brush Type AVR:GB100,GB120,GB130B,GB160/170,GB160C/170C
• Others:EA05A,KXT-2WC,KXT-2WC1B



• Deep sea controller:DSE5110,5120,501k,GTR-168
• Cummins engine governor:ESD5500E,ESD5111,EFC3044196
• Cummins Actuator:3408324,3408326,ADC225



*********************************************************************************

MOQ	10PCS
Warranty	1 year
Delivery	3days after we get deposit
Payment Term	TT/Paypal//west union
Brand Name	Parbeau
Place of Origin	China Mainland
FOB PORT	Shenzhen/Fuzhou/Xiamen
Express	FEDEX/UPS/DHL





*********************************************************************************

ORDER ONLINE
