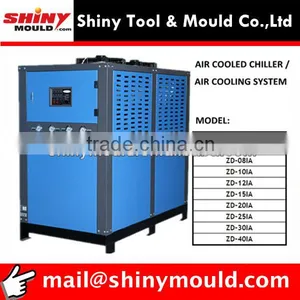

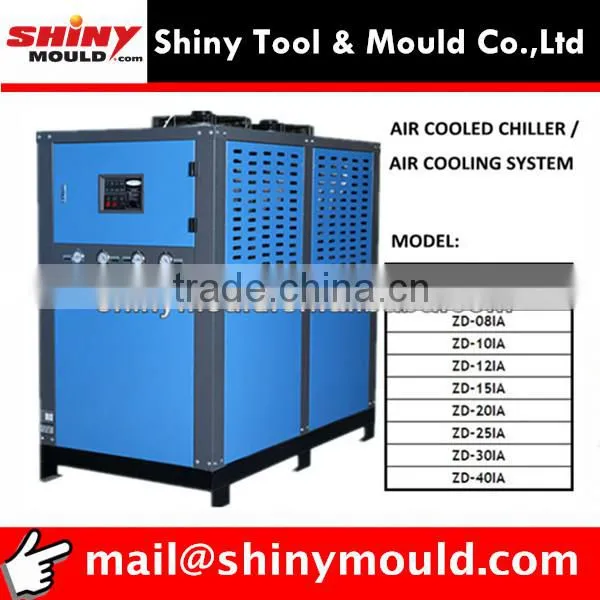

Help CenterAir Cooling System
Related Products
Specifications
AIR COOLING SYSTEMhigh quality compressor
evaporator as water tanl style
water-cooling condenser
air-cooled condenser
AIR COOLED CHLLER/AIR COOLING SYSTEM SPECIFACTIONS:
Air Cooled Chiller Specifications:
| Model | Unit | ZD-04IA | ZD-05IA | ZD-08IA | ZD-10IA | ZD-12IA | ZD-15IA | ZD-20IA | ZD-25IA | ZD-30IA | ZD-40IA | |
| Refrigeration capacity | kw | 11.9 | 15 | 23.8 | 30.5 | 34.3 | 45 | 61 | 69 | 92 | 122 | |
| kcal/h | 10234 | 12900 | 20468 | 26230 | 29498 | 39700 | 52460 | 59340 | 79120 | 104920 | ||
| Compressor | Input power | kw | 3 | 4.5 | 3x2 | 4.5x2 | 10 | 13.5 | 9x2 | 10x2 | 9x3 | 9x4 |
| Rated power | hp | 4 | 5 | 4x2 | 5x2 | 12 | 15 | 10x2 | 12x2 | 10x3 | 20x2 | |
| Evaporator | Type | Pipe coil evaporator | Shell evaporator | |||||||||
| Pipe dia. | Inch | 1 | 1 | 1.5 | 1.5 | 2 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 3 | |
| Refrigerant | Type | R22 | ||||||||||
| Quantity | Kg | 2 | 2.5 | 4 | 5 | 6 | 7.5 | 10 | 11 | 12 | 18 | |
| Air cooled condensor | Type | Finned condenser | ||||||||||
| Fan power | Kw | 0.19x2 | 0.19x2 | 0.25x2 | 0.25x2 | 0.5x2 | 0.55x2 | 0.5x4 | 0.5x4 | 0.4x6 | 0.4x8 | |
| Chill water flow rate | L/min | 65 | 70 | 100 | 110 | 150 | 170 | 230 | 270 | 330 | 480 | |
| Water tank capacity | liter | 50 | 50 | 70 | 70 | 125 | 125 | 140 | 140 | 150 | 180 | |
| Pump | Power | kw | 0.37 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 4 | 4 |
| hp | 0.5 | 1 | 1.5 | 1.5 | 2 | 2 | 3 | 3 | 5 | 5 | ||
| Flow rate | l/min | 42 | 60 | 100 | 100 | 200 | 200 | 300 | 300 | 300 | 300 | |
| Pipe connection size | Cooling water outlet | Inch | 1/2x4 | 1/2x4 | 1.5 | 1.5 | 2 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 3 |
| Cooling water inlet | Inch | 1/2x4 | 1/2x4 | 1.5 | 1.5 | 2 | 2 | 2-1/2 | 2-1/2 | 2-1/2 | 3 | |
| Dimension | Air cooled | mm | 1250x760x1420 | 1500x800x1460 | 1700x950x1750 | 2000x1050x1950 | 2200x1350x1550 | 3200x1480x2100mm | ||||
High quality compressor:
As the heart of the water-cooling machine, we choose the compressor from Europea, USA and Japan with securiety protection for internal. Low noise, energy saving, long time.
Tank Evaporator Machine:
Thick stainless steel evaporator with automatic water supplying device so the well water tank during the intallation will be saved. Easy to install and maintain.
Water-cooling condenser:
Made from UKB latest external thread copper tube with good heat dissipation and small occupation. manufactured with latest CAD/CAM design processing technique with CNC milling machining which has a feature of compact struture, energy saving, good shape and reliable performance.

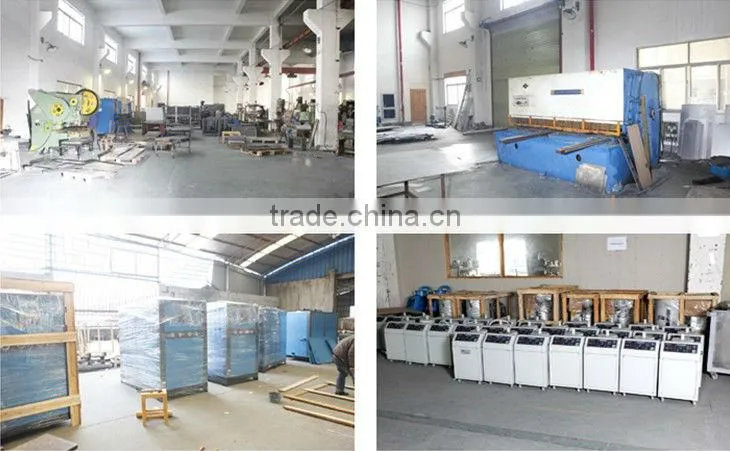

Factory Photos
