Refractory Silicon Carbide Rod

Refractory Silicon Carbide Rod thumbnail-1
Refractory Silicon Carbide Rod photo-1
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Shape:
Pipe
Material:
Silicon Carbide (SiC)
Contact Supplier Request Quote Chat Now
Shanghai Zhengxi Ceramics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Shape Pipe
Material Silicon Carbide (SiC)
SiO2 Content (%) 11%
Al2O3 Content (%) 1%
MgO Content (%) 0.5%
SiC Content (%) 95%
Brand Name SHGTZDH

Specifications

1.our industry can produce all kinds of silicon carbide rod
2.strength of various styles for your reference
3.OEM

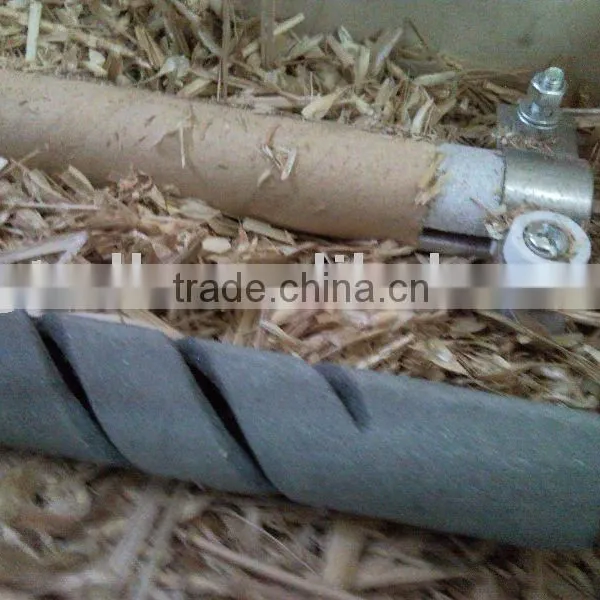

SW Silicon Carbide(Sic)Heating Element

silicon carbide rod/elements of type SWare used in applications ranging intempreture from 800°Cup to 1500°C in both air and controlled atmospheres. Although the type of atmosphere used will determine the maximum recommended element temperature.Sintokan silicon carbide elements may be mounted either vertically or horizontally.

Rod Specificationsand Resistance Range

Diameter

(d)

Length of hot zone (I)

Length of cold zone

Overall Length

(L)

Range of Resistance

Diameter

(d)

Length of hot zone (I)

Length of cold zone

Overall Length

(L)

Range of Resistance

8

100-300

60-200

240-700

2.1-7.2

30

300-2000

250-800

800-3600

0.4-4.0

12

100-400

100-350

300-1100

0.8-6.0

35

400-2000

250-800

900-3600

0.5-3.4

14

100-500

150-350

400-1200

0.8-5.6

40

500-2700

250-800

1000-4300

0.5-3.0

16

200-600

200-350

600-1300

0.8-4.4

45

500-3000

250-750

1000-4500

0.3-2.5

18

200-800

200-400

600-1600

0.7-5.8

50

600-2500

300-750

1200-4000

0.3-2.5

20

200-800

250-600

700-2000

0.6-5.0

54

600-2500

300-750

1200-4000

0.3-2.5

25

200-1200

250-700

700-2600

0.6-4.5













....
