Help CenterHigh Temperature Sprial Sic Heating Elements
Related Products
Specifications
1.our industry can produce Sprial sic heating elements2.strength of various styles
3.sic heater element,sic heater rod

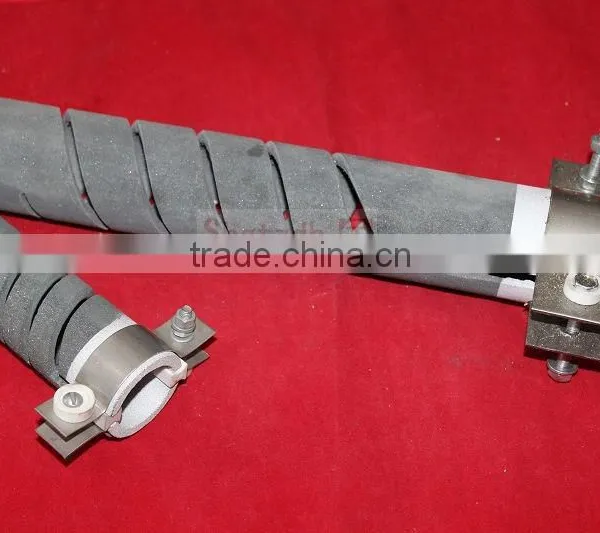

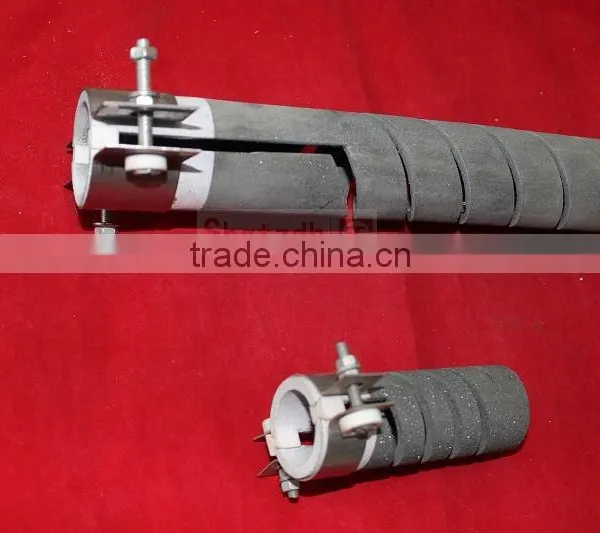

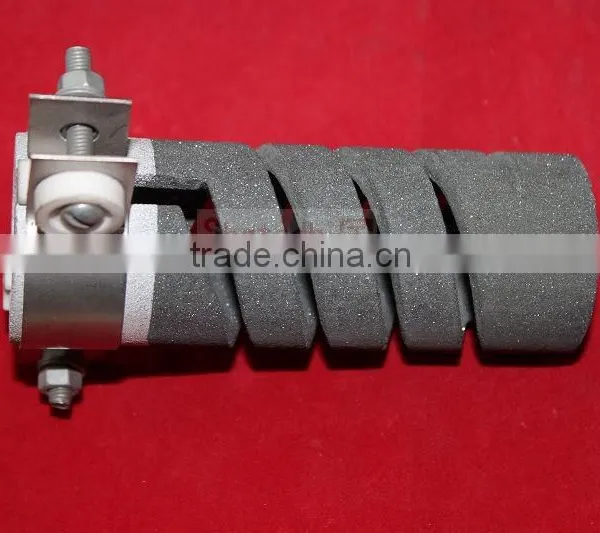

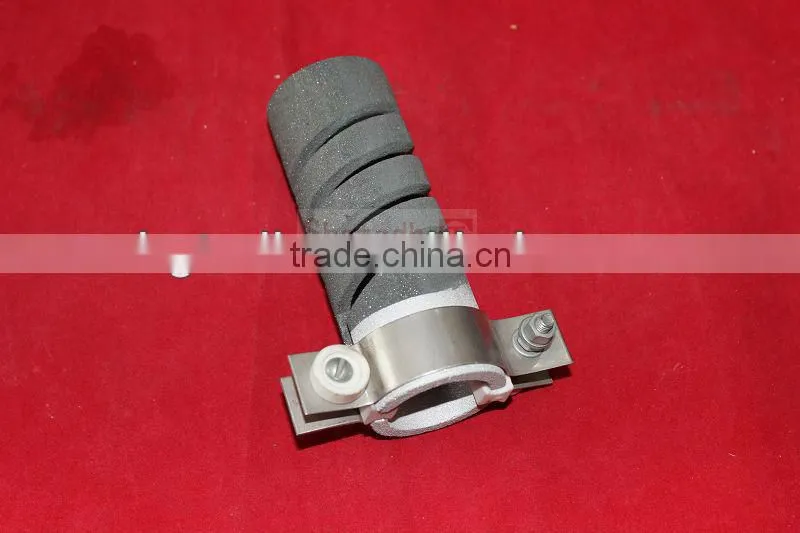

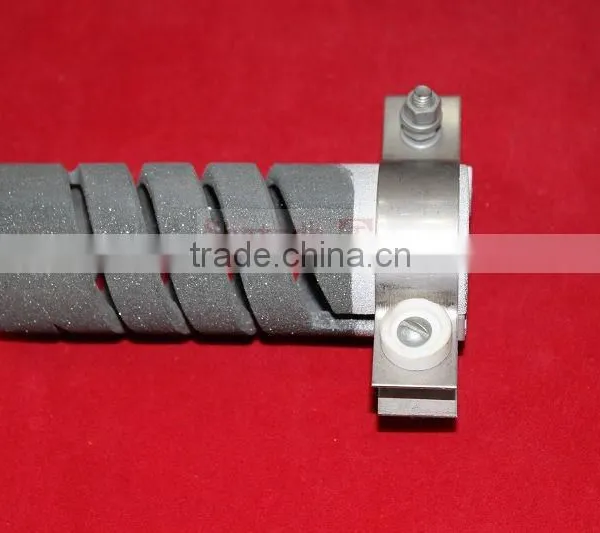

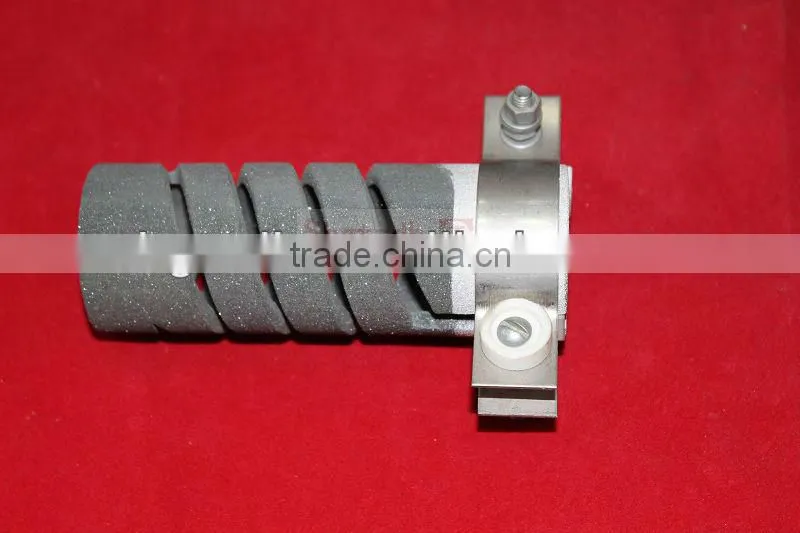

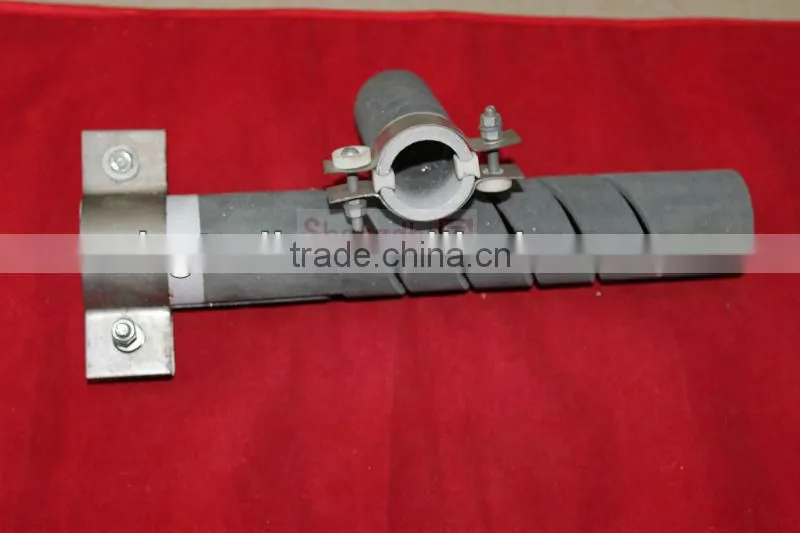

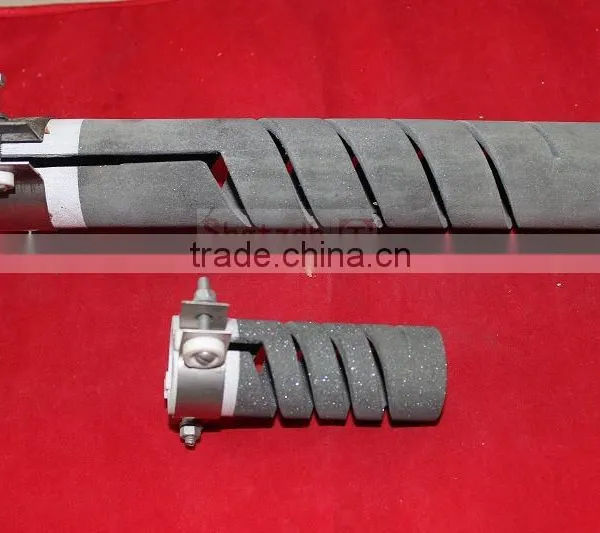

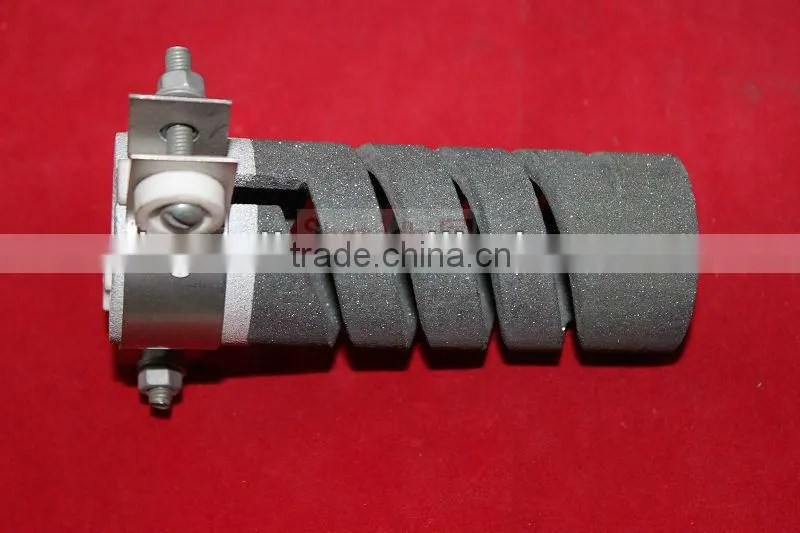

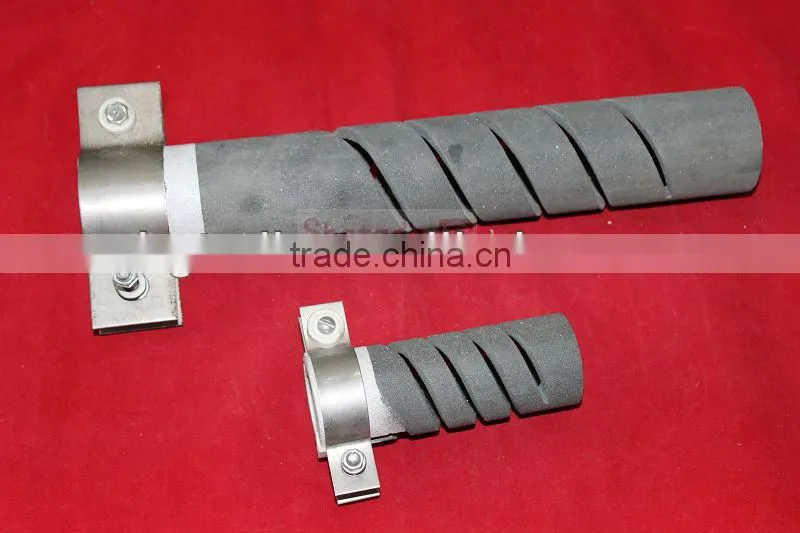

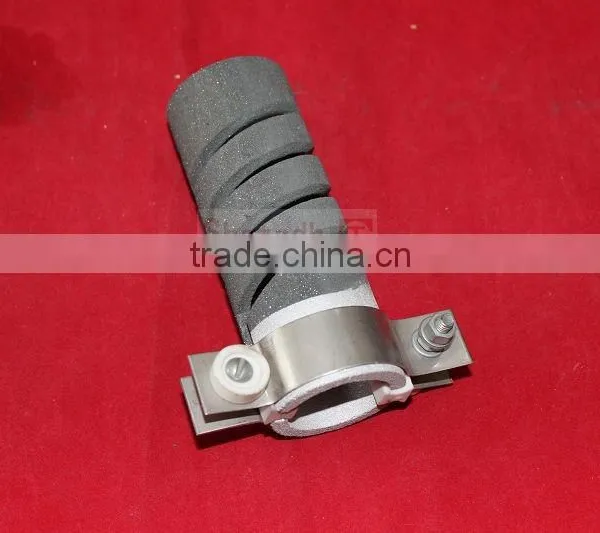

High temperature sprial sic heating elements
SW Silicon Carbide(Sic)Heating Element
Heating element of type SWare used in applications ranging intempreture from 800°Cup to 1500°C in both air and controlled atmospheres. Although the type of atmosphere used will determine the maximum recommended element temperature.Sintokan silicon carbide elements may be mounted either vertically or horizontally.
Rod Specificationsand Resistance Range
|
Diameter (d) |
Length of hot zone (I) |
Length of cold zone |
Overall Length (L) |
Range of Resistance |
Diameter (d) |
Length of hot zone (I) |
Length of cold zone |
Overall Length (L) |
Range of Resistance |
8 |
100-300 |
60-200 |
240-700 |
2.1-7.2 |
30 |
300-2000 |
250-800 |
800-3600 |
0.4-4.0 |
12 |
100-400 |
100-350 |
300-1100 |
0.8-6.0 |
35 |
400-2000 |
250-800 |
900-3600 |
0.5-3.4 |
14 |
100-500 |
150-350 |
400-1200 |
0.8-5.6 |
40 |
500-2700 |
250-800 |
1000-4300 |
0.5-3.0 |
16 |
200-600 |
200-350 |
600-1300 |
0.8-4.4 |
45 |
500-3000 |
250-750 |
1000-4500 |
0.3-2.5 |
18 |
200-800 |
200-400 |
600-1600 |
0.7-5.8 |
50 |
600-2500 |
300-750 |
1200-4000 |
0.3-2.5 |
20 |
200-800 |
250-600 |
700-2000 |
0.6-5.0 |
54 |
600-2500 |
300-750 |
1200-4000 |
0.3-2.5 |
25 |
200-1200 |
250-700 |
700-2600 |
0.6-4.5 |
|
|
|
|
|
....
