Light Steel C Channel Main Channel For Suspension Ceiling System
Features
Material
Galvanised steel
Zinc Coated Level
60~275 g/m2 (depends on the customer's request)
Thickness
0.35~1.20mm
Length:
2000mm, 2700mm, 2800mm, 2900mm, 3000mm, 3600mm
Advantage
1. galvanized steel profile raw material is high quality hot dipped zinc galvanized steel strip, absolute damp proof , heat insulation and high durability , high rust resistance.
2. The specification can follow up customer requirments.
3. Advanced equipment can make sure exactly size, high quality products.
Suspension system
| Picture | Product | Specification width*height*length(mm) | Packing (pcs/carton) |
Matching (pcs/sqm) |
| |
Traditional suspension system | |||
|
C channel (CD) |
28*27*3000 | 20 | 1.1 | |
| 38*12*3000 | ||||
| 50*19*3000 | ||||
|
Furring channel(UD) |
60*27*3000 | 20 | 2.4 | |
| 50*19*3000 | ||||
| 45*16*3000 | ||||
| |
V shape suspension system | |||
|
V-mold keel |
20*24*3000 | 20 | 1.1 | |
| 18*36/30/26/23*3000 | ||||
| 20*37/24*3000 | ||||
|
Furring channel |
28*27*3000 | 20 | 2.4 | |
| 50*19/18/17/16*3000 | ||||
| 45*16*3000 | ||||
| |

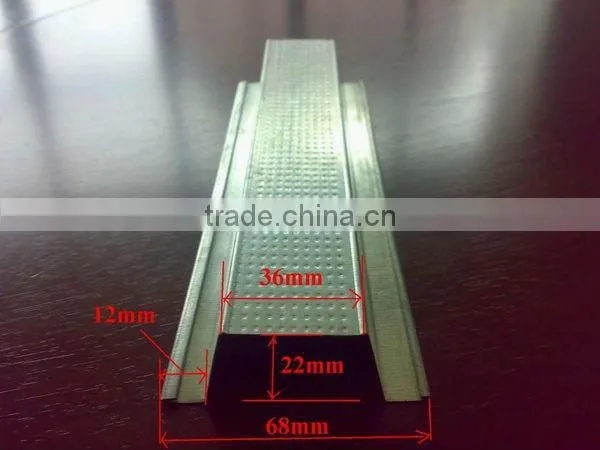

Omega channel | |||
| Omega channel | 68*35*21/22*10 | 10 | ||
| 68*36*21/22*12 | ||||

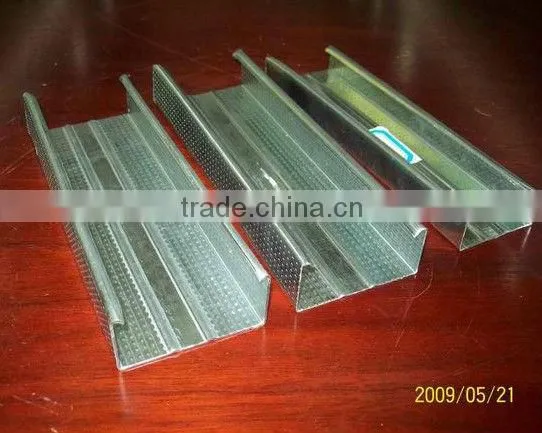

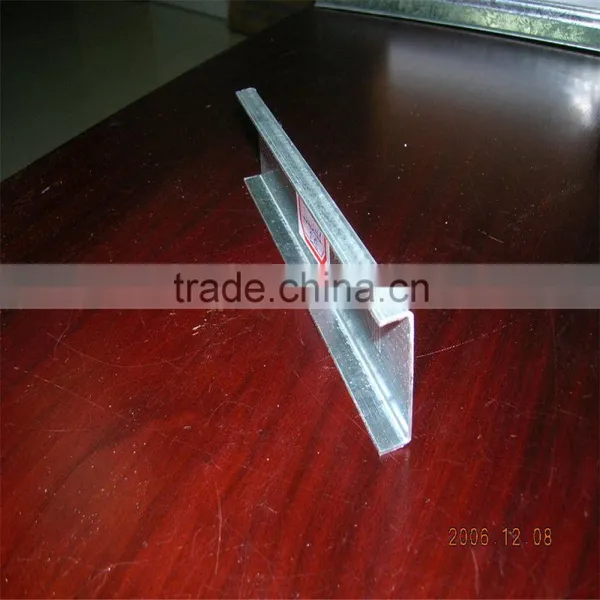

Real Product Photo Show
